Procedure 3




Diagnostic Procedure 3

SYMPTOM: "AIR BAG" Warning Lamp Does Not Turn Off

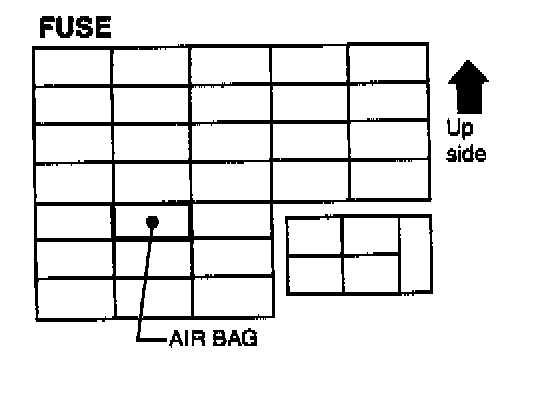

Air Bag Fuse Location:






DATA LINK FOR CONSULT:

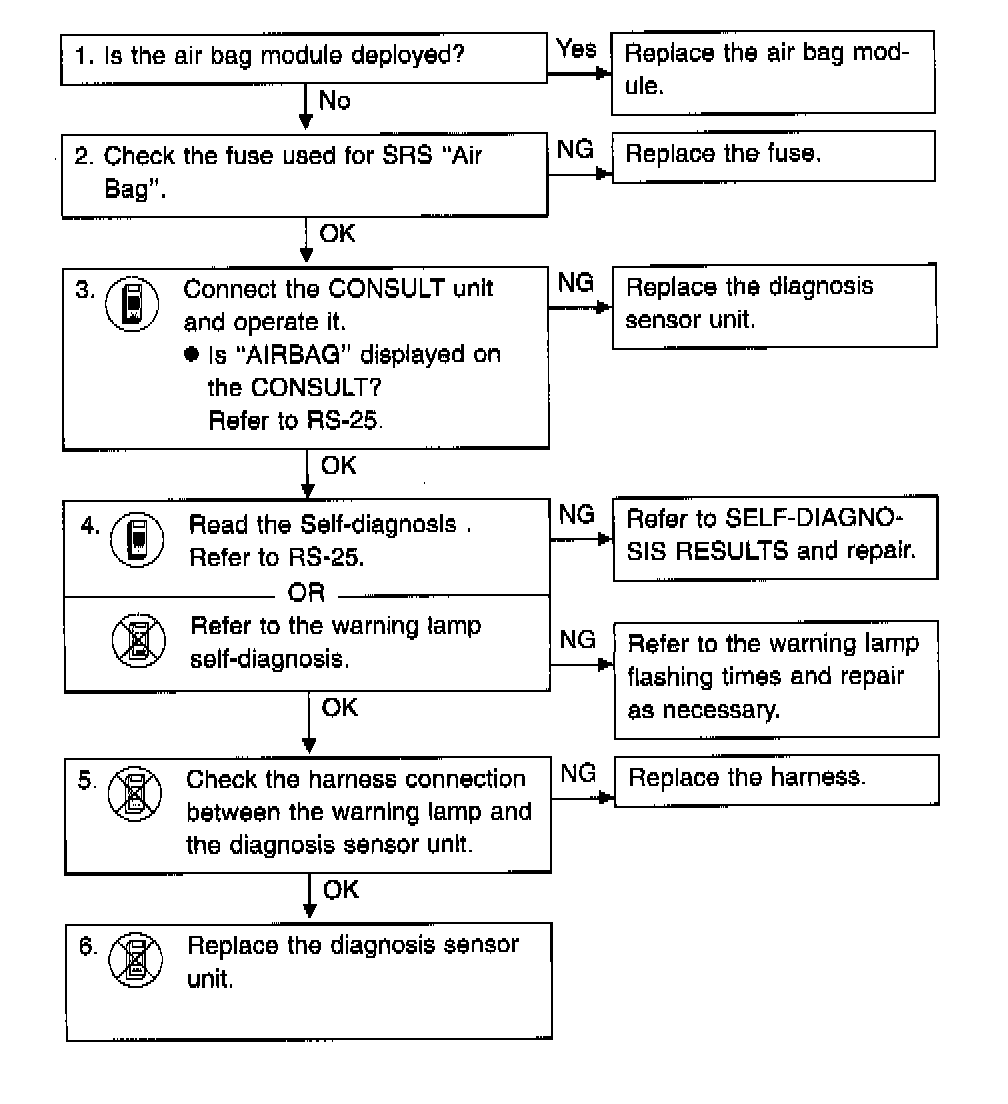

AIR BAG WARNING LAMP DOES NOT TURN OFF, Procedure 3:
