Home >> Nissan-Datsun >> 1995 >> 200SX L4-1597cc 1.6L DOHC MFI (GA16DE) >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Diagnostic Procedures >> Procedure 2

Procedure 2



Diagnostic Procedure 2

SYMPTOM: "AIR BAG" Warning Lamp Does Not Come On


AIR BAG WARNING LAMP FUSE LOCATION:






DATA LINK FOR CONSULT:

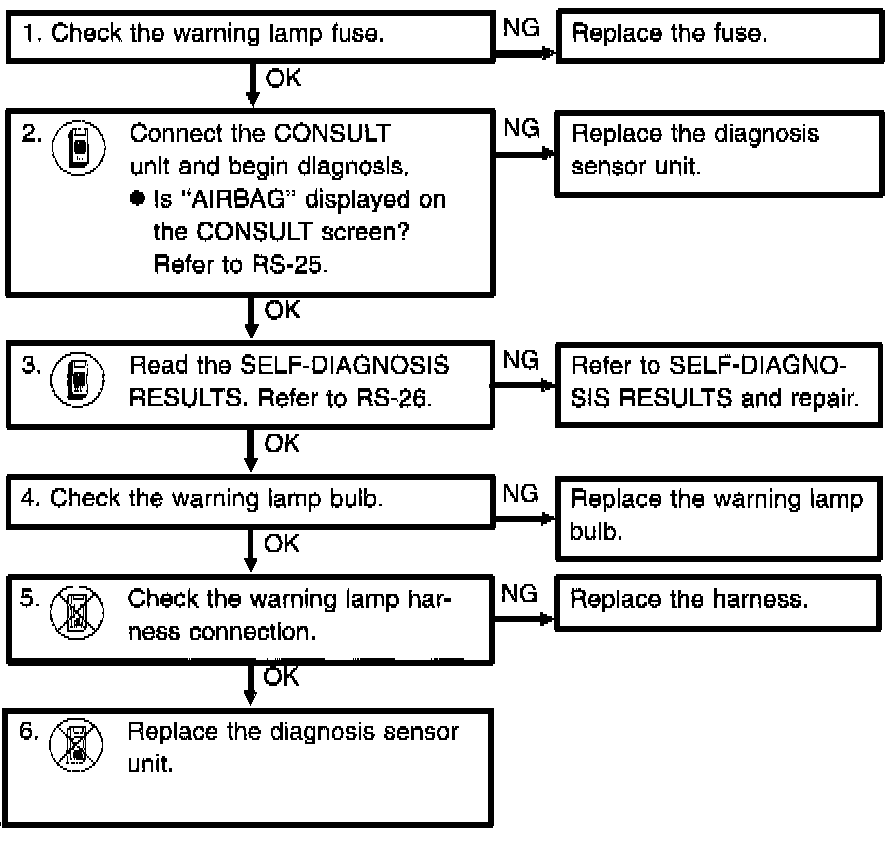

WARNING LAMP DOES NOT TURN ON, Procedure 2:
