Procedure 1



Diagnostic Procedure 1

SYMPTOM: "AIR BAG" Warning Lamp Flashes.

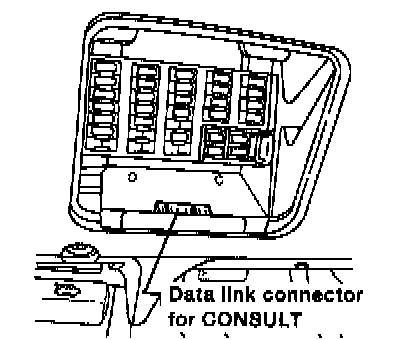

DATA LINK FOR CONSULT:






AIR BAG WARNING LAMP DOES NOT COME ON, Procedure 1:

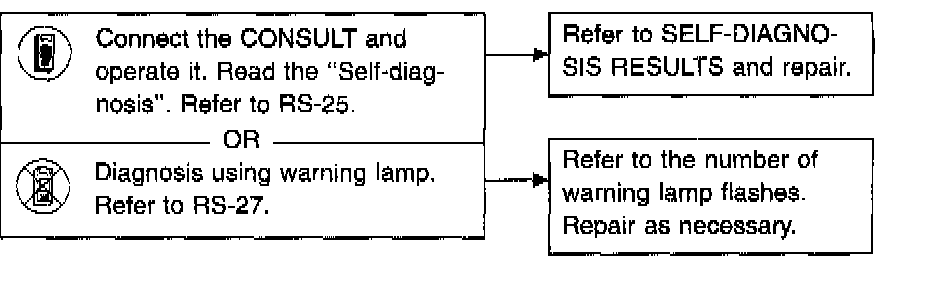

WARNING: DETERMINE IF THE FLASH RATE IS EVERY .05 SECONDS, OR 3 SECONDS "ON" AND 2 SECONDS "OFF". IF EVERY 0.5 SECONDS, PERFORM SELF-DIAGNOSIS. IF 3 SECONDS "ON" AND 2 SECONDS "OFF", THE SYSTEM IS IN DIAGNOSIS MODE - REFER TO WARNING LAMP FLASH CODE CHART.

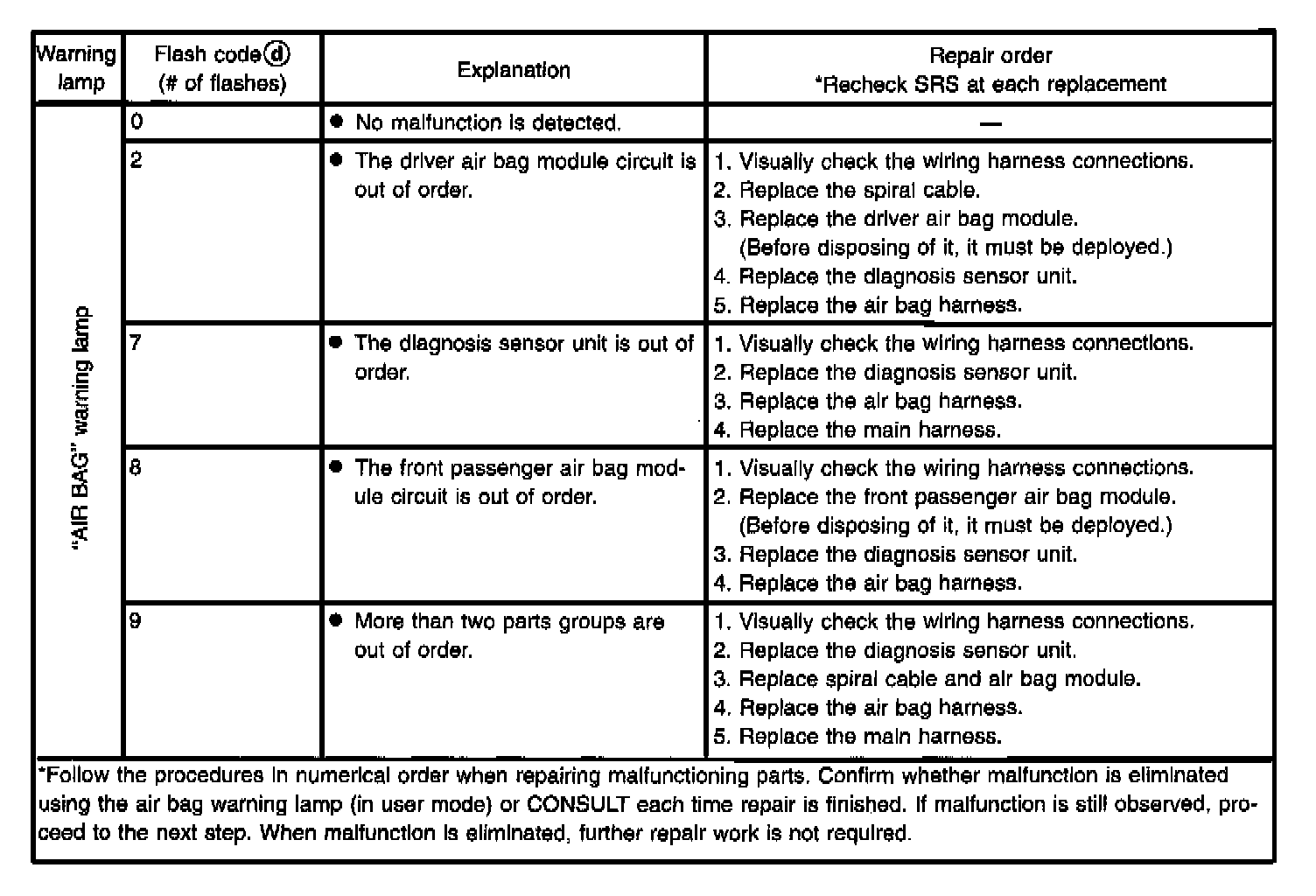

Warning Lamp Flash Code Chart
