Instruments - Fuel Gauge Won't Read Full

Date: April 19, 1995

Reference: NTB95-042

Classification: EL95-05

FUEL GAUGE NOT INDICATING FULL TANK

APPLIED VEHICLE:
1995 Sentra (B14)
1995 200SX (B14)

APPLIED DATE:
Vehicles built from November 1, 1994 to March 8, 1995

SERVICE INFORMATION

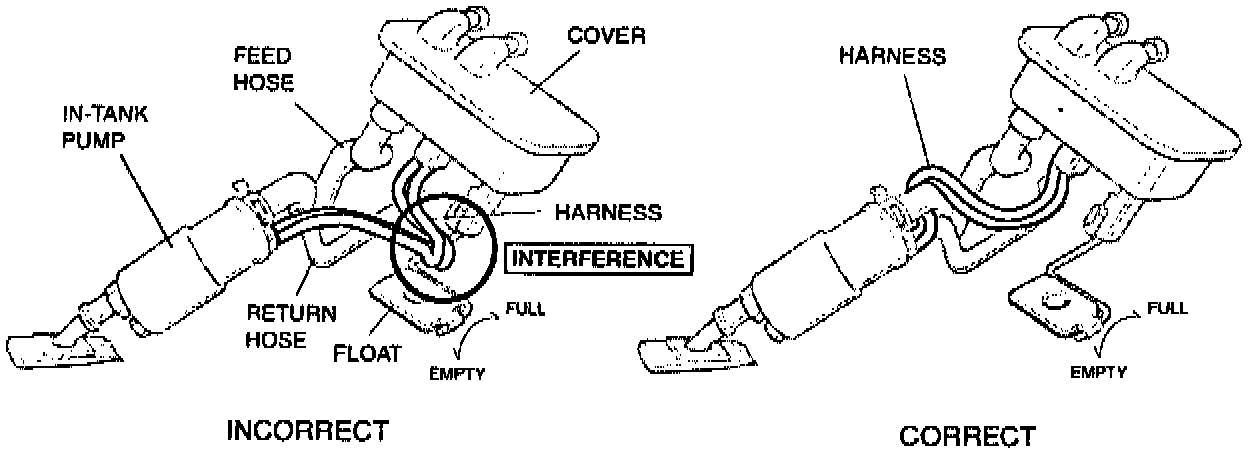

If the fuel gauge will not indicate "FULL" after the fuel tank has been completely filled, the fuel pump wires may be contacting the fuel tank sending unit float arm. This prevents the float from going all the way to the full position.

SERVICE PROCEDURE

If this condition is found, disconnect and re-route the fuel pump wire over the feed hose to prevent restriction of the float arm travel.

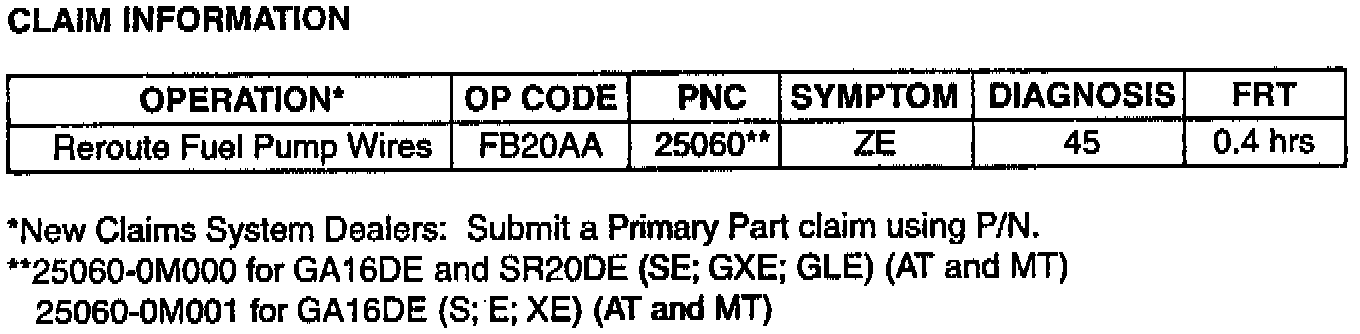

CLAIM INFORMATION
