Throttle Cable/Linkage: Adjustments

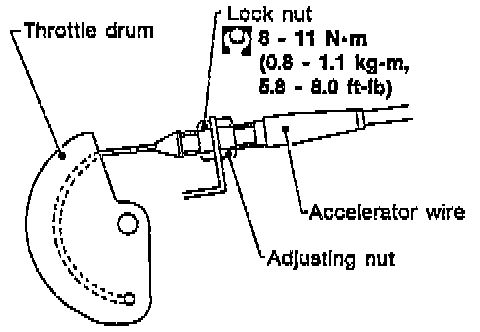

ACCELERATOR WIRE

CAUTION: Make sure the Automatic Speed Control Device (ASCD) wire is not pulling the throttle drum.

1. Loosen lock nut, and tighten adjusting nut until throttle drum starts to move.
2. From that position turn back adjusting nut 1.5 to 2 turns, and secure lock nut.
