With Consult

DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE (OVERALL)
1. Start engine and warm it up sufficiently.
2. Turn ignition switch "OFF" and wait for at least 3 seconds.

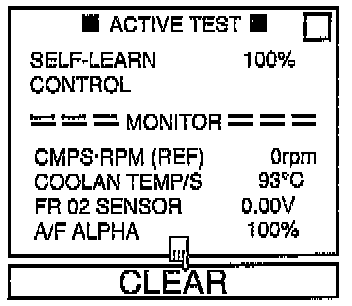

3. Turn ignition switch "ON" and select "SELF-LEARN CONTROL" in "ACTIVE TEST" mode with CONSULT
4. Clear the self-learning control coefficient by touching "CLEAR".
5. Select "DATA MONITOR" mode with CONSULT.
6. Start engine again and wait for at least 10 minutes at idle speed.
The DTC should be detected at this stage, if a malfunction exists.
7. If it is difficult to start engine at step 6, the fuel injection system has a malfunction, too.
