Diagnostic Procedure

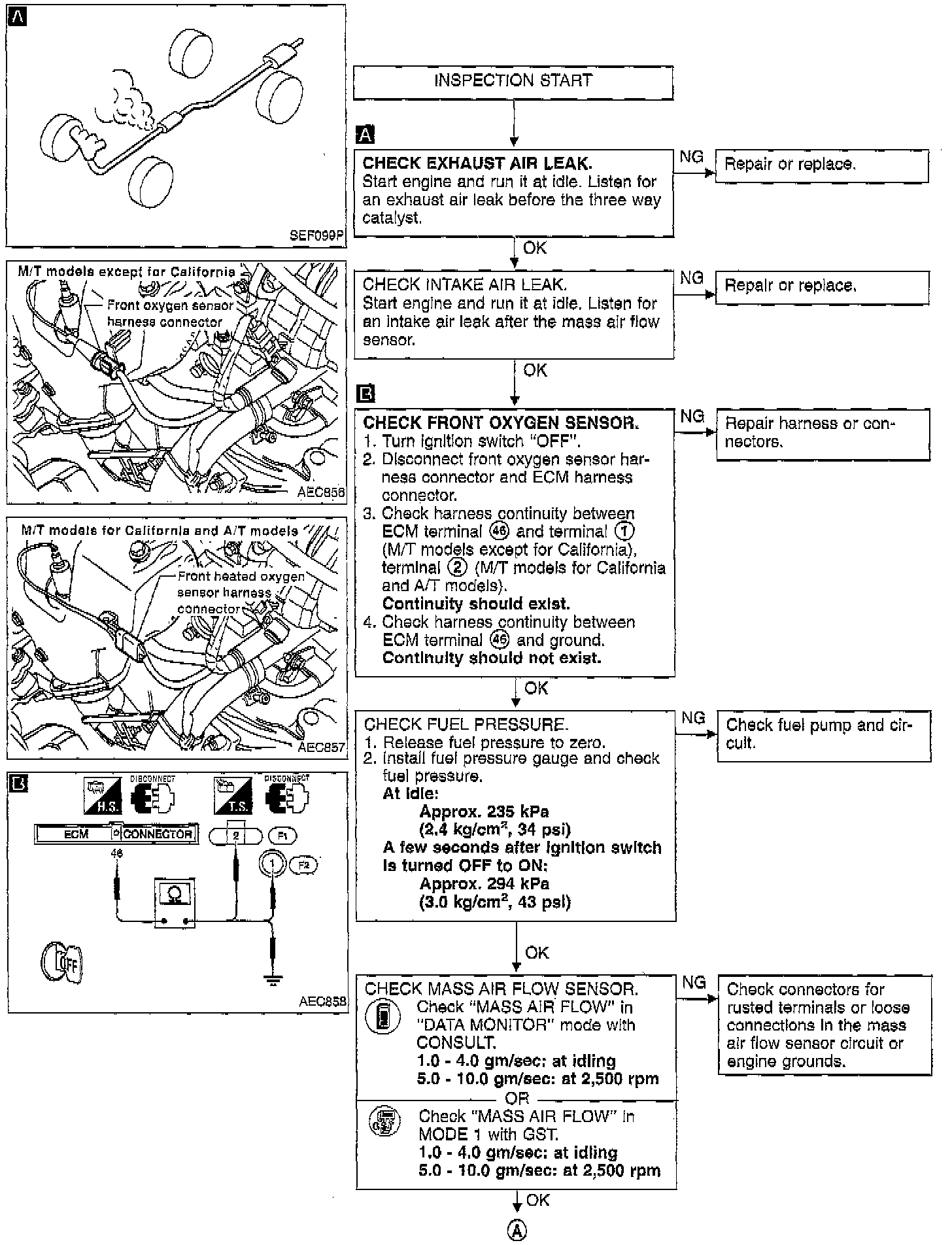

DIAGNOSTIC PROCEDURE


Note

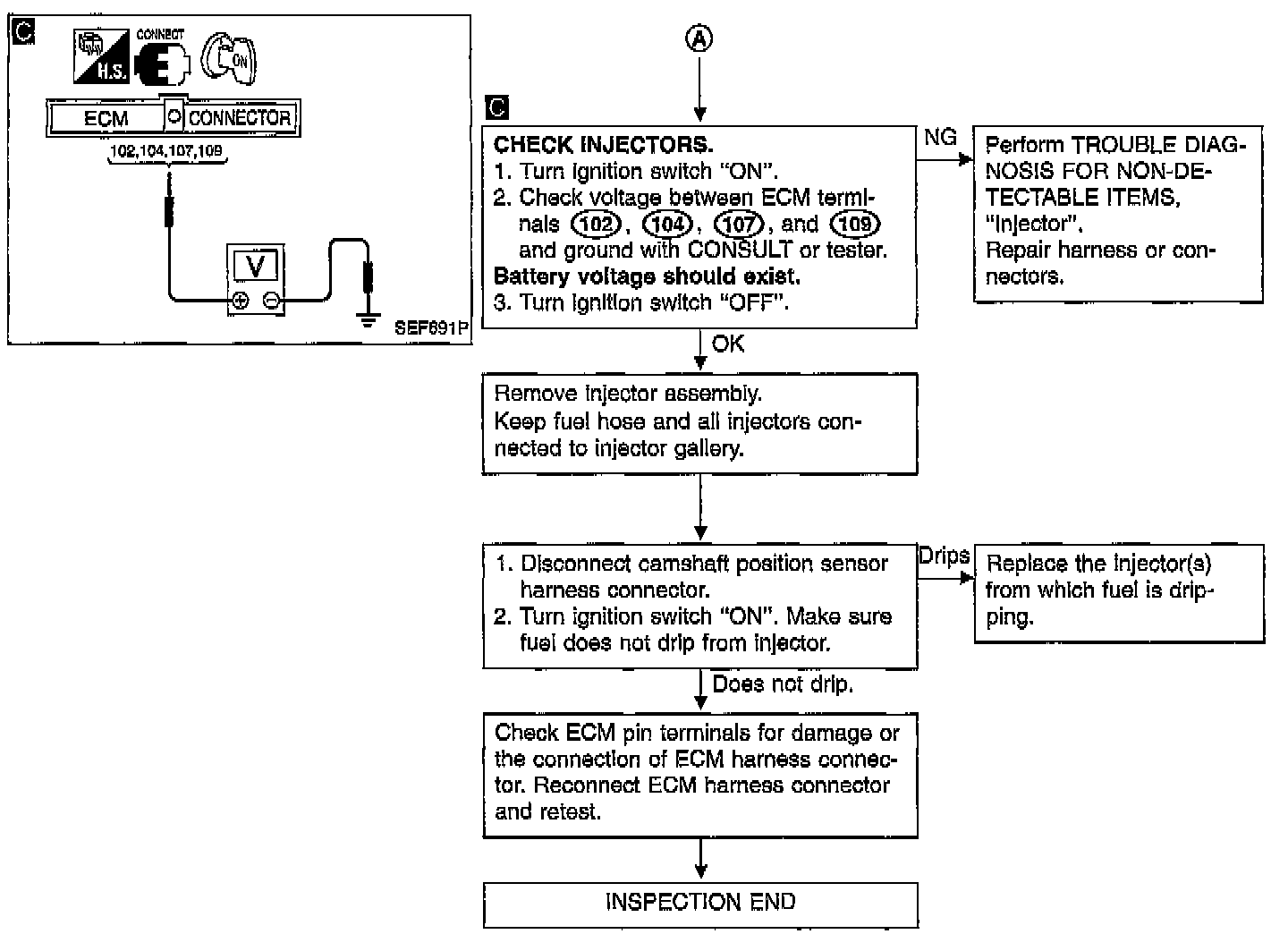

Verification of engine control module fuel injector ground terminals 102, 104, 107, and 109 is presented during diagnosis of diagnostic trouble code 76 (P0170). Refer to Computers and Controls/Testing and Inspection/Procedures/Trouble Code Diagnostic Procedures. Testing and Inspection
