Fuel Pump: Testing and Inspection

FUEL PUMP

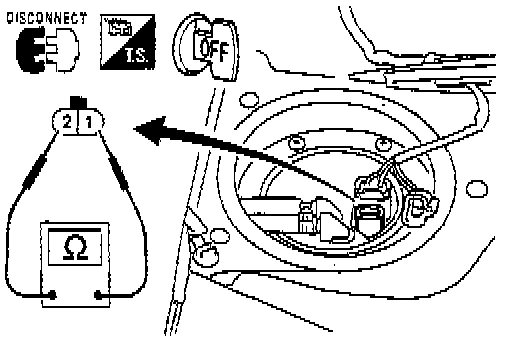

1. Disconnect fuel pump harness connector.
2. Check resistance between terminals 1 and 2.

Resistance: 0.2-5.0 ohms [at 25°C (77°F)]

If NG, replace fuel pump.
