Accelerator Pedal: Service Precautions

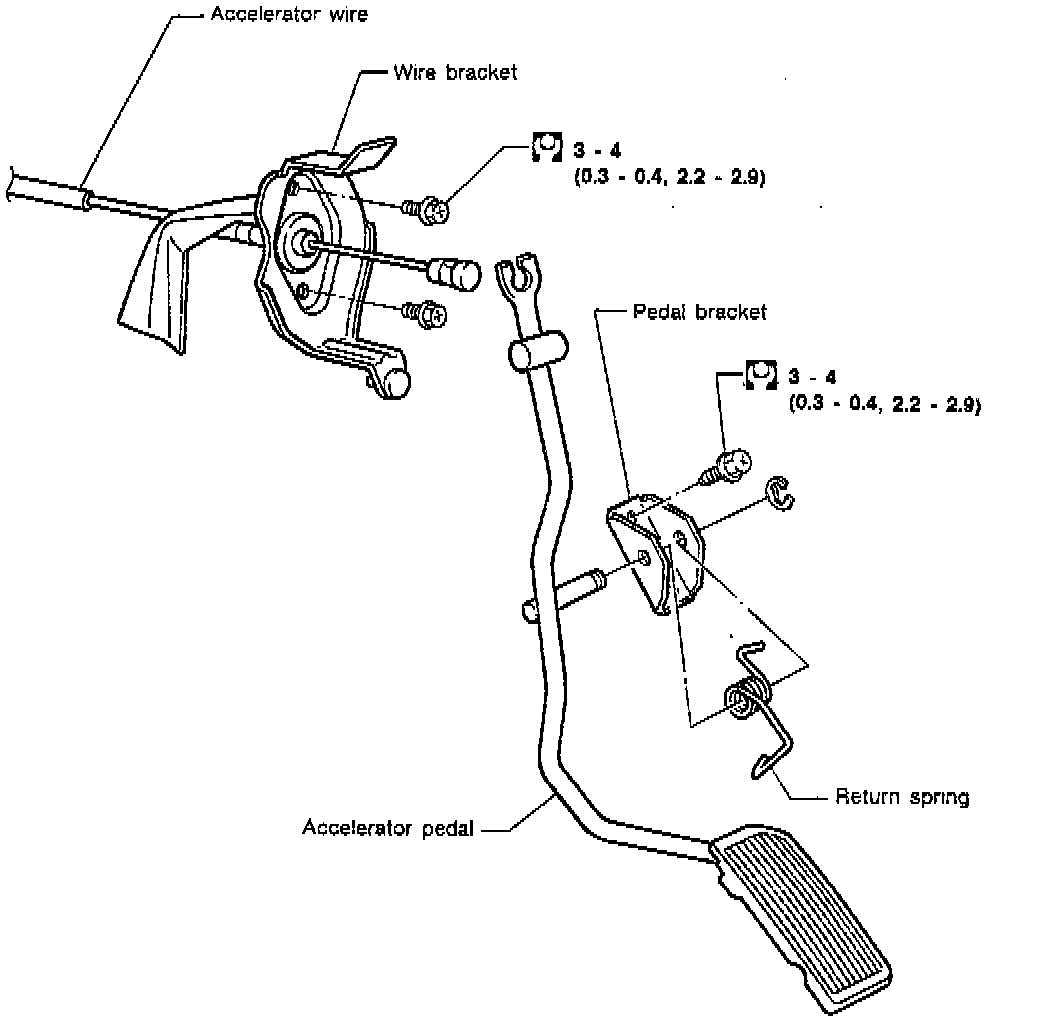

ACCELERATOR CONTROL SYSTEM

CAUTION:
^ When removing accelerator wire, make a mark to indicate lock nut's initial position.
^ Check that throttle valve opens fully when accelerator pedal is fully depressed. Check that throttle valve returns to idle position when accelerator pedal is released.
^ Check accelerator control parts for improper contact with any adjacent parts.
^ When connecting accelerator wire, be careful not to twist or scratch wire.
