EGR Temperature Sensor: Testing and Inspection

EXHAUST GAS RECIRCULATION (EGR) TEMPERATURE SENSOR

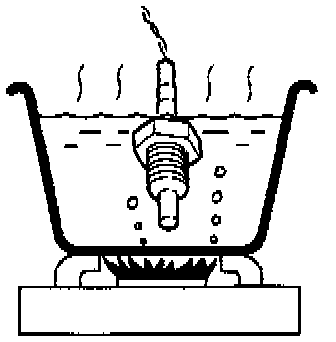

Check resistance change and resistance value at 100°C (212°F).
Resistance should decrease in response to temperature increase.

Resistance: 100°C (212°F)
76.8 - 93.8 k.ohms

If NG, replace EGR temperature sensor.
