On-Board Diagnosis Logic

ON-BOARD DIAGNOSIS LOGIC

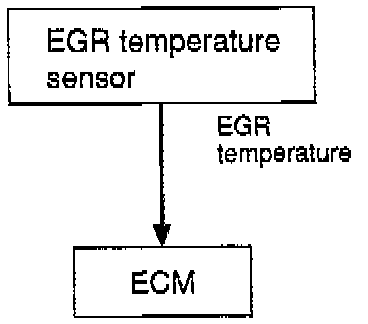

If the absence of Exhaust Gas Recirculation (EGR) flow is detected by EGR temperature sensor under the condition that calls for EGR a low-flow malfunction is diagnosed If EGR temperature sensor detects EGR flow under the condition that does not call for EGR, a high-flow malfunction is diagnosed.
