Without CONSULT

OVERALL FUNCTION CHECK

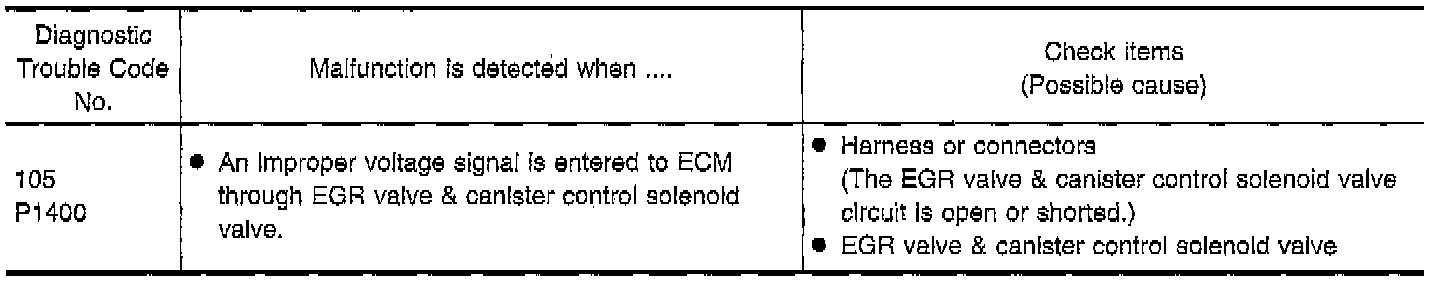

This procedure can be used for checking the overall function of the Exhaust Gas Recirculation (EGR) valve and canister control solenoid valve circuit. During this check, a Diagnostic Trouble Code (DTC) might not be confirmed.
1. Start engine and warm it up sufficiently.
2. Turn ignition switch "OFF" and wait for at least 3 seconds.
3. For M/T models, jack up front wheels. Start engine again.

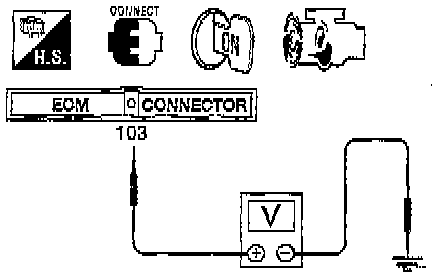

4. Check the voltage between Engine Control Module (ECM) terminal (103) and ground at idle speed.

Voltage: 0.04-0.08 volts

5. For M/T models, shift into 1st gear.
Check that the voltage changes to battery voltage and returns to 0.04-0.08 volts when the engine speed increases to about 2,500 rpm.
