With CONSULT

OVERALL FUNCTION CHECK
This procedure can be used for checking the overall function of the EGR valve and canister control solenoid valve circuit. During this check, a DTC might not be confirmed.
1. Turn ignition switch "ON".

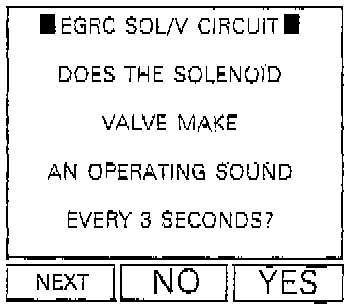

2. Perform "EGRC SOL/V CIRCUIT" in "FUNCTION TEST" mode with CONSULT.

OR

1. Turn ignition switch "ON".

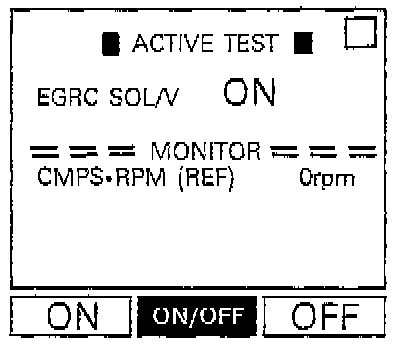

2. Perform "EGRC SOLENOID VALVE" in "ACTIVE TEST" mode with CONSULT and check the operating sound, according to ON/OFF switching.
