Home >> Nissan-Datsun >> 1995 >> 200SX L4-1597cc 1.6L DOHC MFI (GA16DE) >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Exhaust Gas Recirculation >> EGR Control Solenoid >> Testing and Inspection >> Component Inspection

Component Inspection

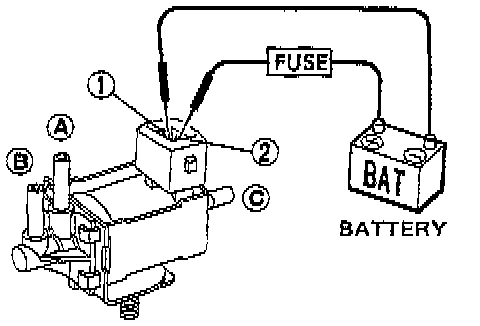

EGR VALVE & CANISTER CONTROL SOLENOID VALVE

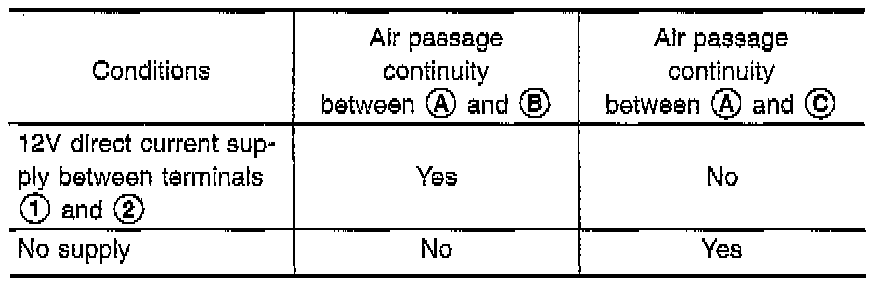

Check solenoid valve, following the table as shown.

If NG, replace EGR valve & canister control solenoid valve.
