Component Testing Procedures

EGRC-BPT VALVE

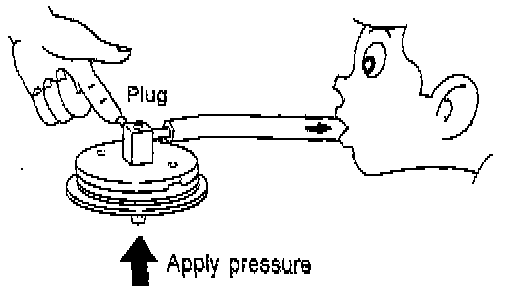

1. Plug one of two ports of EGRC-BPT valve.
2. Vacuum from the other port and check for leakage while applying a pressure above 0.981 kPa (100 mmH2O, 3.94 inH2O) from under EGRC-BPT valve.
3. If a leakage is noted, replace the valve.

OR

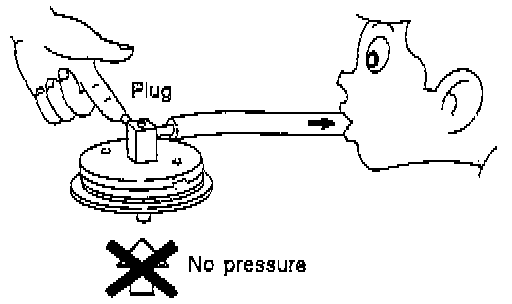

1. Plug one of two ports of EGRC-BPT valve.
2. Vacuum from the other port and check leakage without applying any pressure from under EGR-BPT valve.
Leakage should exist.
