Component Testing Procedures
COMPONENT INSPECTION

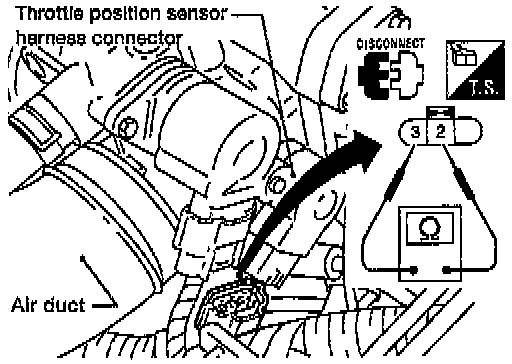

1. Disconnect throttle position sensor harness connector.

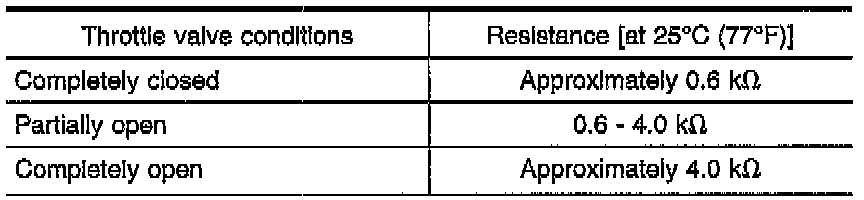

2. Make sure that resistance between terminals 2 and 3 changes when opening throttle valve manually.
If NG, replace throttle position sensor.
COMPONENT INSPECTION
1. Disconnect throttle position sensor harness connector.
2. Make sure that resistance between terminals 2 and 3 changes when opening throttle valve manually.
If NG, replace throttle position sensor.
