Component Inspection

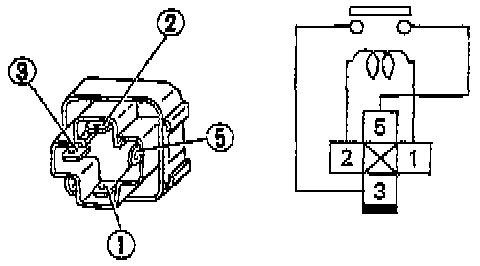

FUEL PUMP RELAY

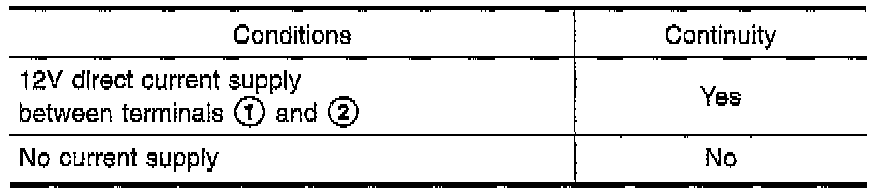

Check continuity between terminals 3 and 5.




If NG, replace relay.

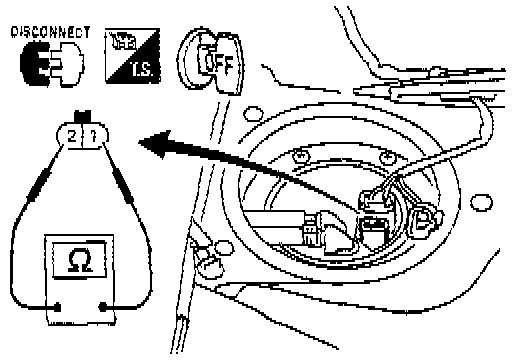

FUEL PUMP
1. Disconnect fuel pump harness connector.
2. Check resistance between terminals 1 and 2.

Resistance: 0.2 - 5.0 ohms [at 25°C (77°F)

If NG, replace fuel pump.
