Component Inspection




COMPONENT INSPECTION

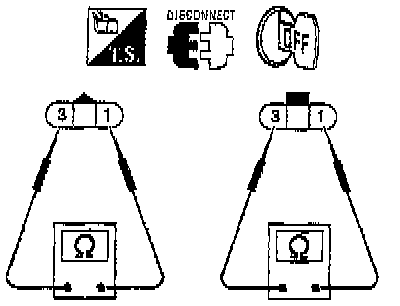

Check resistance between terminals 1 and 3.

Resistance: 5.2-8.2 ohms [at 25°C (77°F)]

If NG, replace the rear heated oxygen sensor.
