Front Heated Oxygen Sensor Heater

FRONT HEATED OXYGEN SENSOR HEATER (DTC: P0135)
(M/T models for California and A/T models)

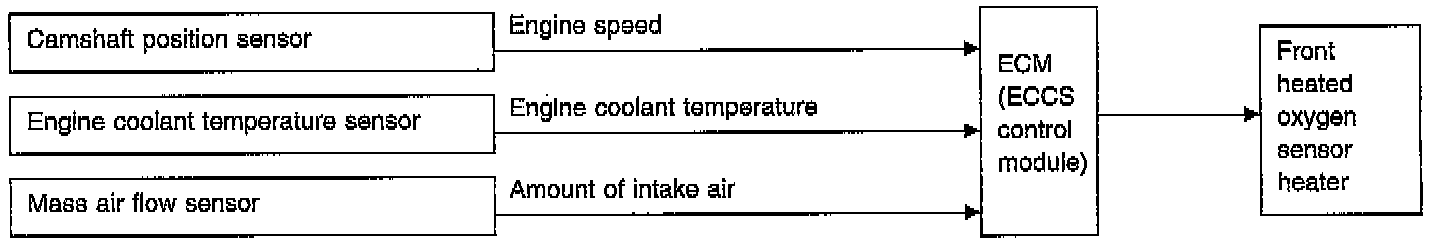

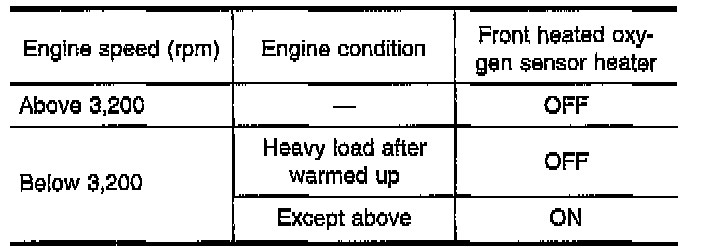

The Engine Control Module (ECM) performs ON/OFF control of the front heated oxygen sensor heater corresponding to the engine conditions.




OPERATION
