Idle Speed/Throttle Actuator - Electronic: Testing and Inspection

COMPONENT INSPECTION
Disconnect IACV-AAC valve harness connector.

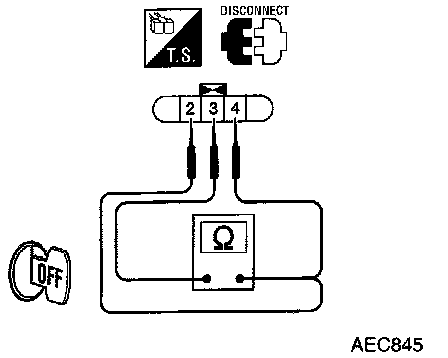

^ Check resistance between terminals 2 and 3, 3 and 4.

Resistance: 50-100 ohms [at 25°C (77°F)]
