Headlamp Bulb: Adjustments

Aiming Adjustment:

When performing headlamp aiming adjustment, use an aiming machine, aiming wall screen or headlamp tester. Aimers should be in good repair, calibrated and operated according to their operation manuals. Before performing aiming adjustment, make sure of the following:
^ Keep all tires inflated to correct pressure.
^ Place vehicle on level ground.
^ See that vehicle is unloaded (except for full levels of coolant, engine oil and fuel, and spare tire, jack, and tools). Have the driver or equivalent weight placed in driver's seat.

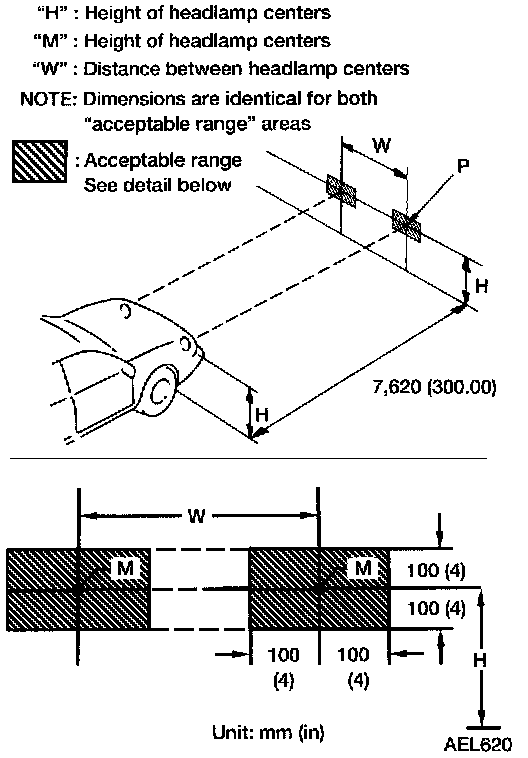

Low Beam:

LOW BEAM
1. Open the hood.

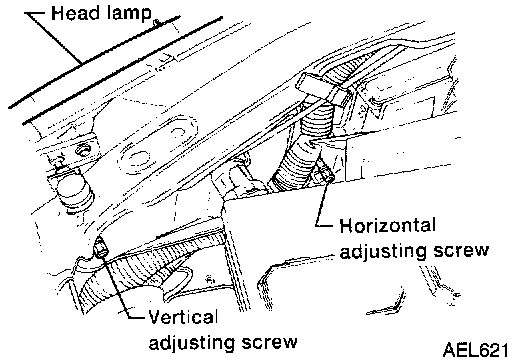

2. Vertical (Up and Down)
Adjust headlamp by turning adjusting screw so that main axis of light "M" is within acceptable range.
3. Horizontal (Left to Right)
Adjust headlamp by turning adjusting screw so that main axis of light "M" is parallel with vehicle center line.
