Home >> Nissan-Datsun >> 1995 >> 200SX L4-1597cc 1.6L DOHC MFI (GA16DE) >> Repair and Diagnosis >> Lighting and Horns >> Daytime Running Lamp >> Testing and Inspection

Daytime Running Lamp: Testing and Inspection

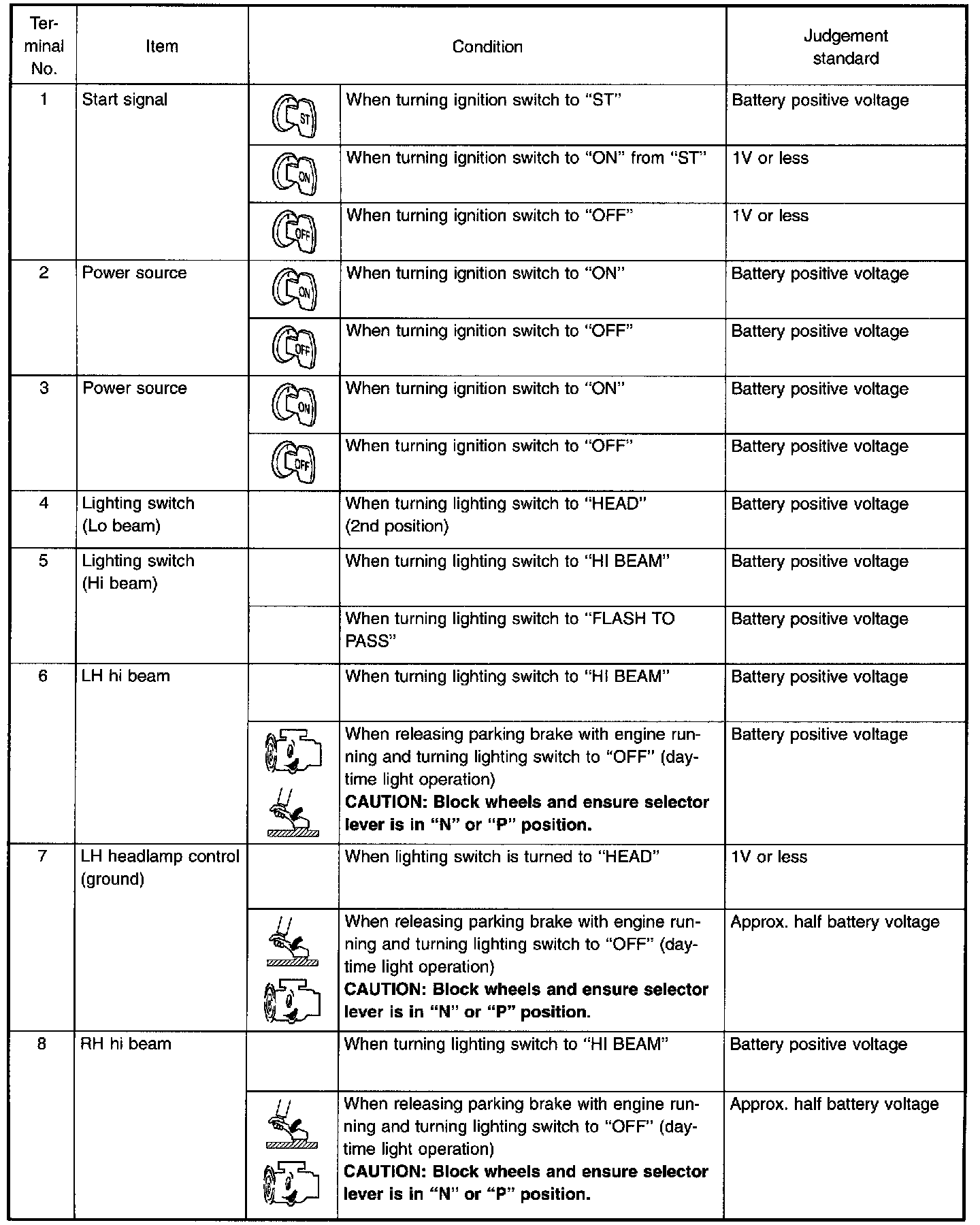

Daytime Light Control Module Inspection Table (Part 1 Of 2):

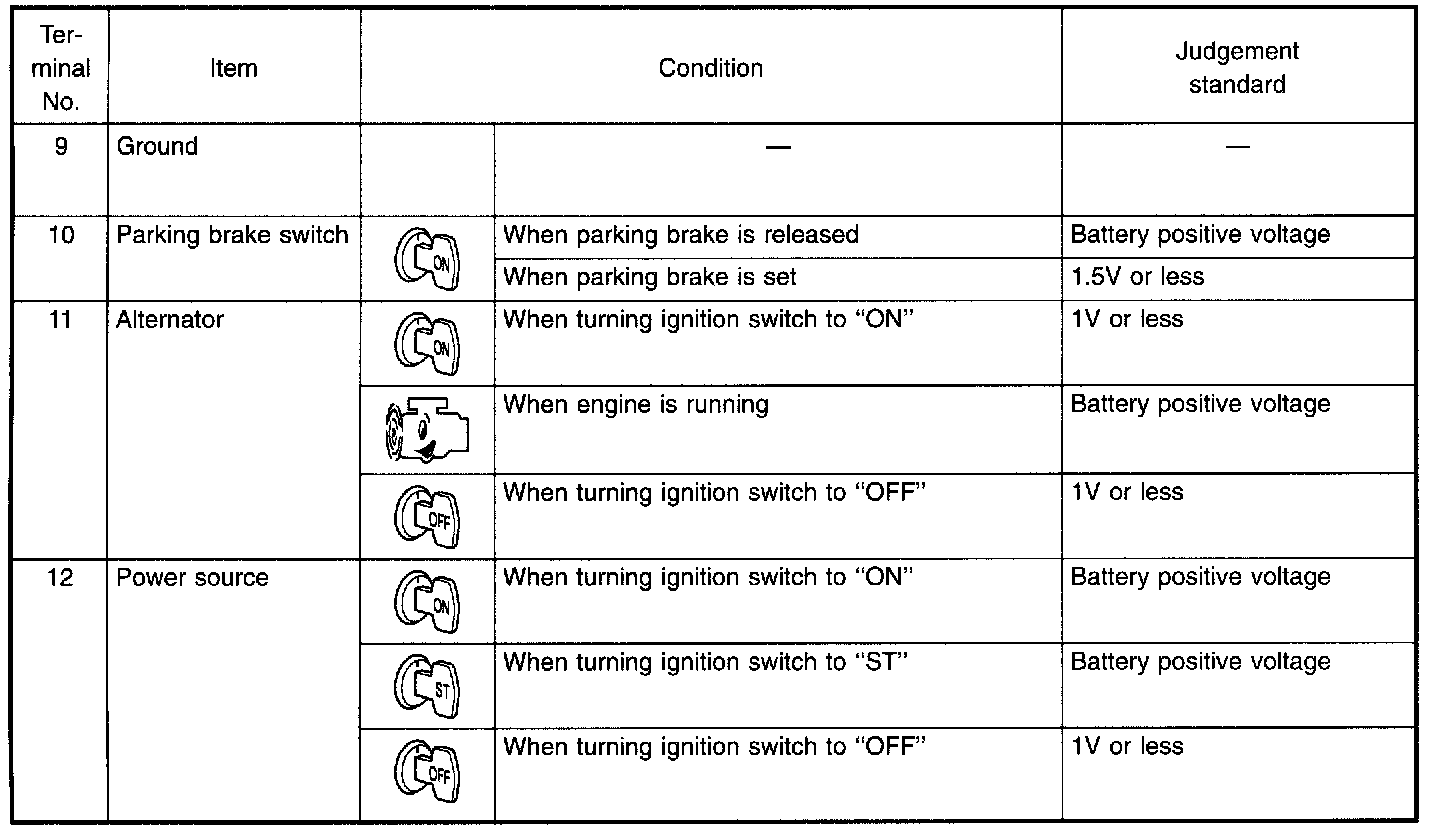

Daytime Light Control Module Inspection Table (Part 2 Of 2):
