Warning Chime Check
Warning Chime Check
Warning Chime Check:

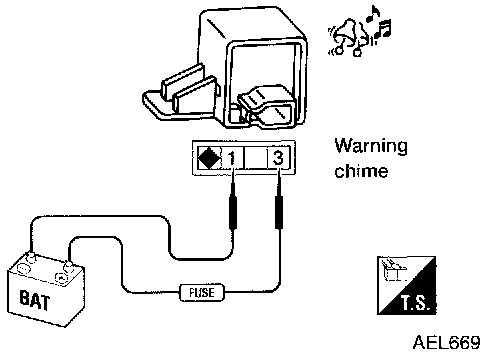

Supply battery voltage to warning chime as shown in the illustration.
Warning chime should operate.
