Component Testing Procedures




COMPONENT INSPECTION
Engine coolant temperature sensor.

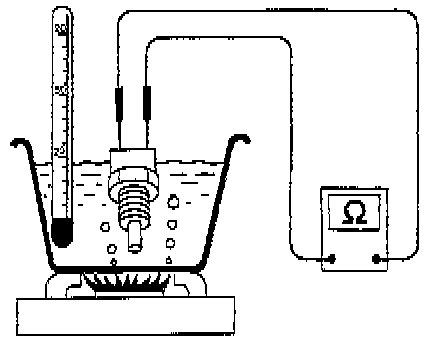

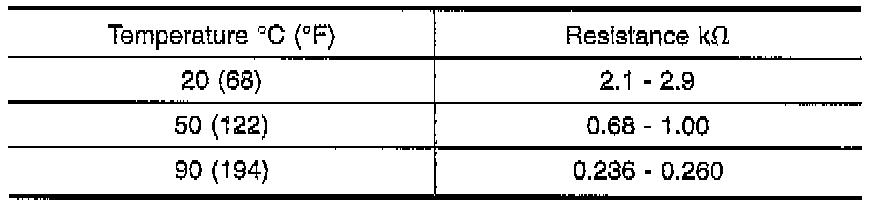

Check resistance as shown in the figure.




If NG, replace engine coolant temperature sensor.
