Radiator Cooling Fan Control Module: Description and Operation

COOLING FAN (OVERHEAT) (DTC: P1900)

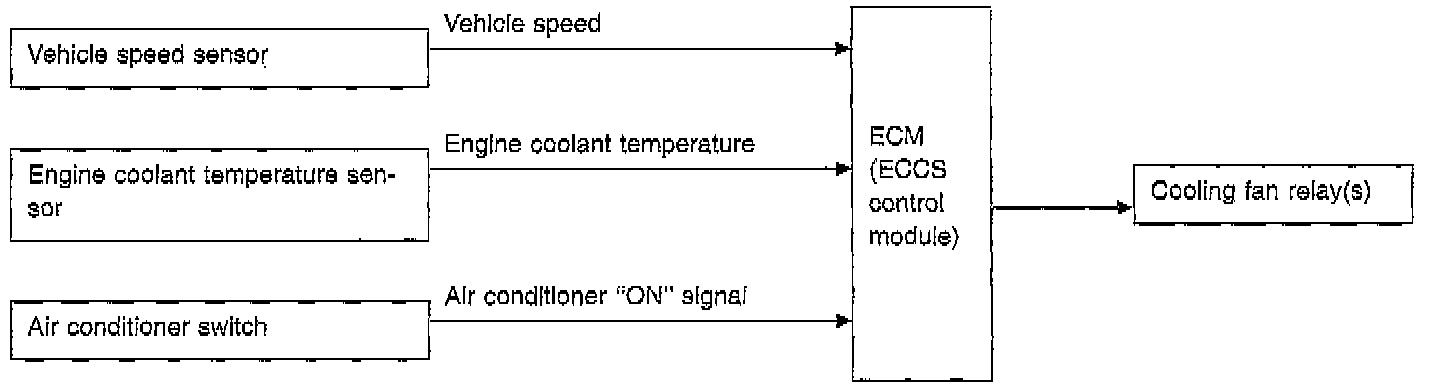

The Engine Control Module (ECM) controls the cooling fan corresponding to the vehicle speed, engine coolant temperature, and air conditioner ON signal. The control system has 2-step control [ON/OFF].

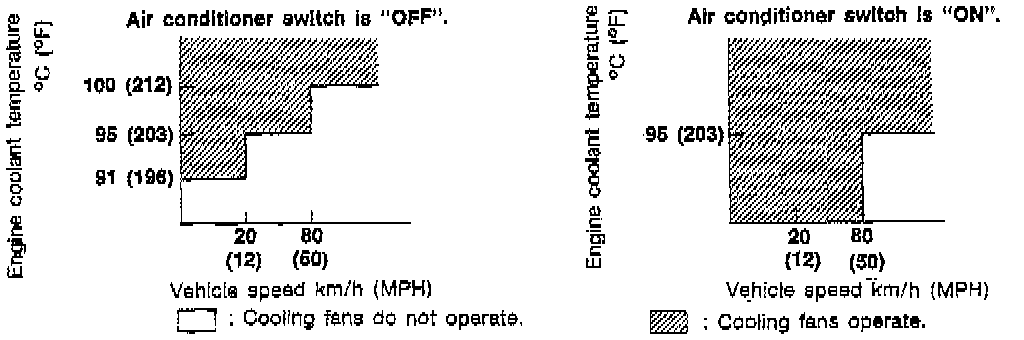

OPERATION
