Models Without Intermittent Wipers

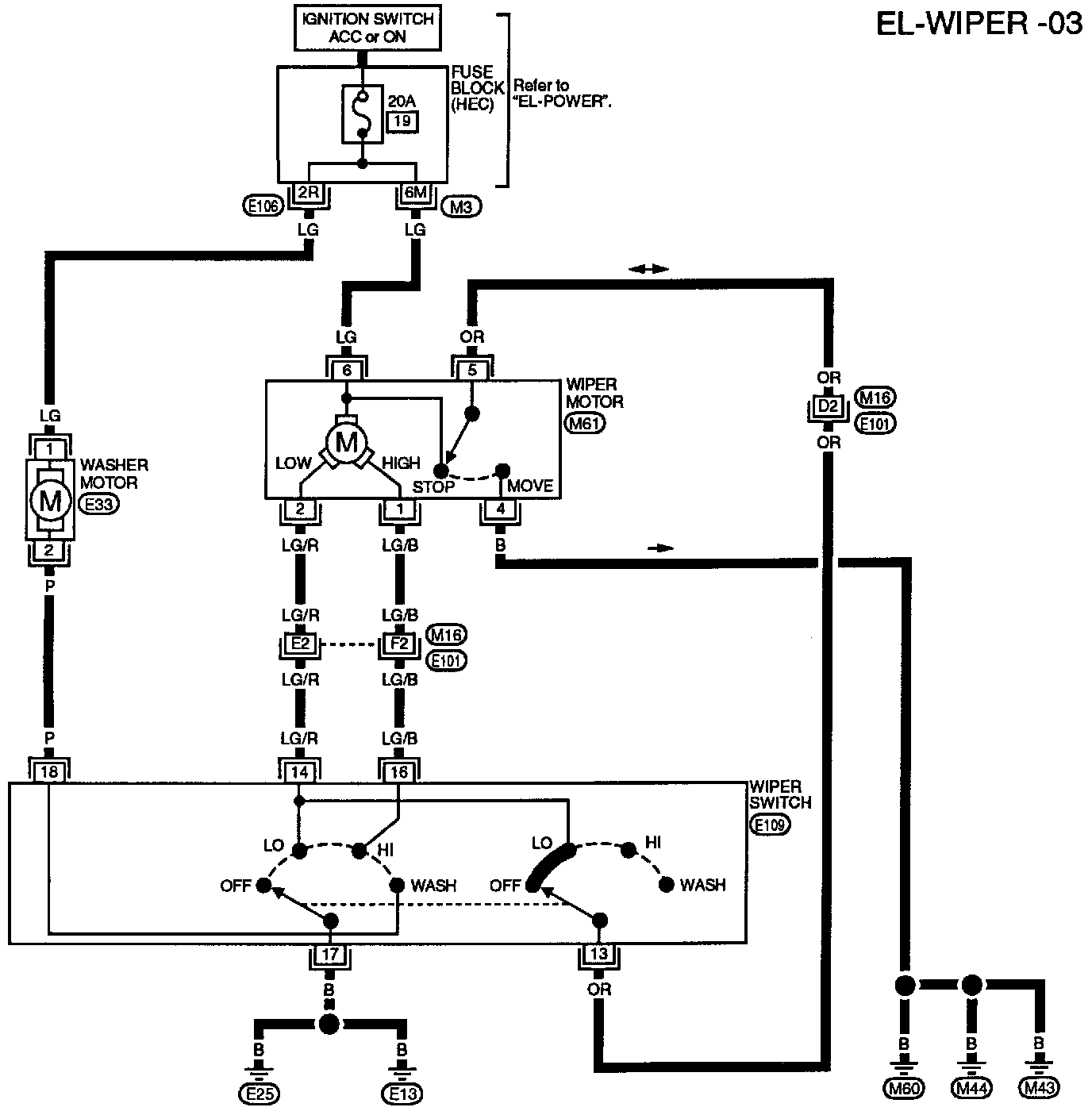

EL-WIPER-03 Wiring Diagram (Models Without Intermittent Wipers) (Part 1 Of 2):
