Nissan-Datsun
>>
1995
>>
200SX L4-1597cc 1.6L DOHC MFI (GA16DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
>>
System Diagram
>>
M/T Models For USA
M/T Models For USA

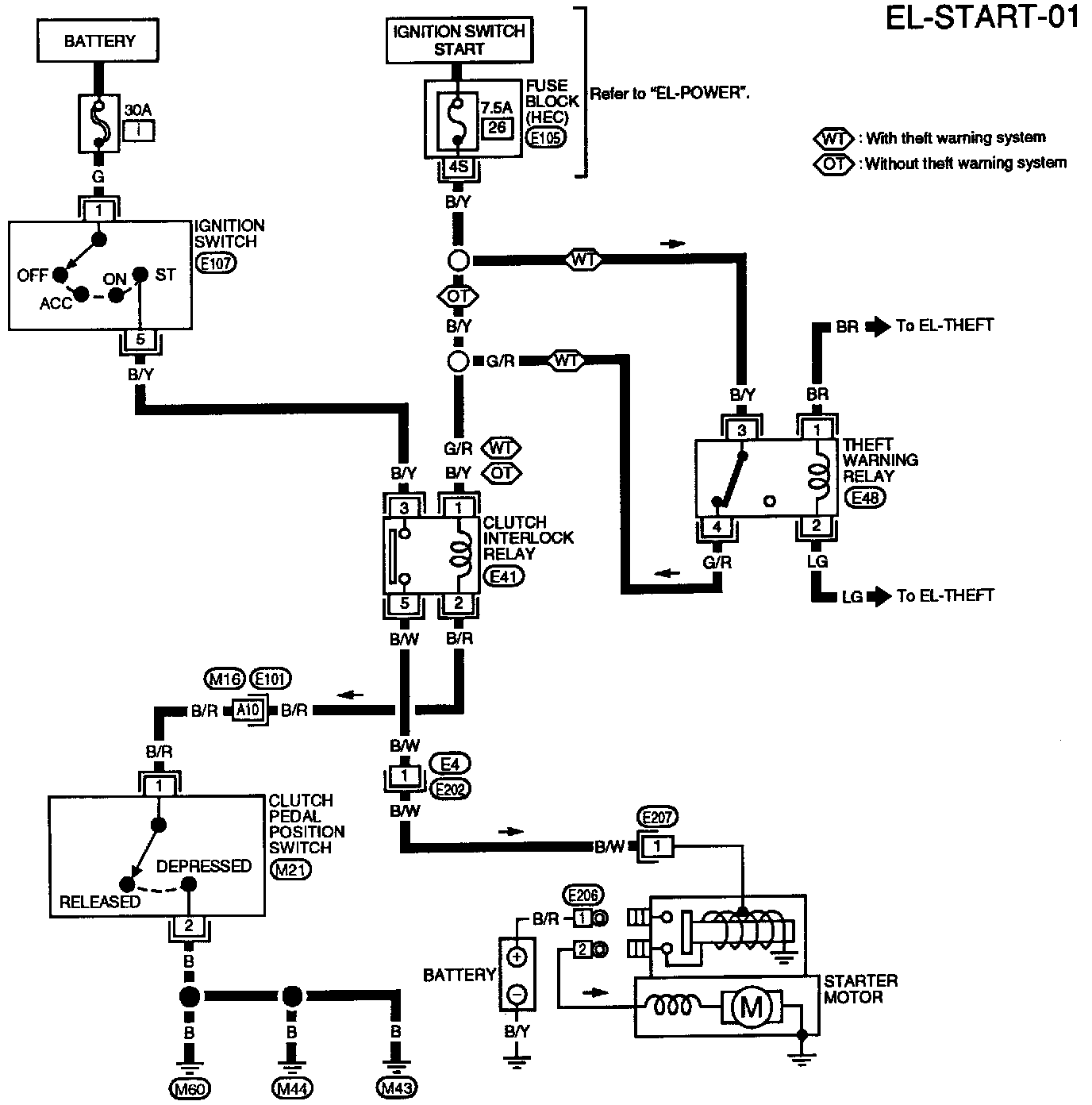

EL-START-01 Wiring Diagram-Start:M/T Models For USA:
