Nissan-Datsun
>>
1995
>>
200SX L4-1597cc 1.6L DOHC MFI (GA16DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Idle Speed/Throttle Actuator - Electronic
Idle Speed/Throttle Actuator - Electronic

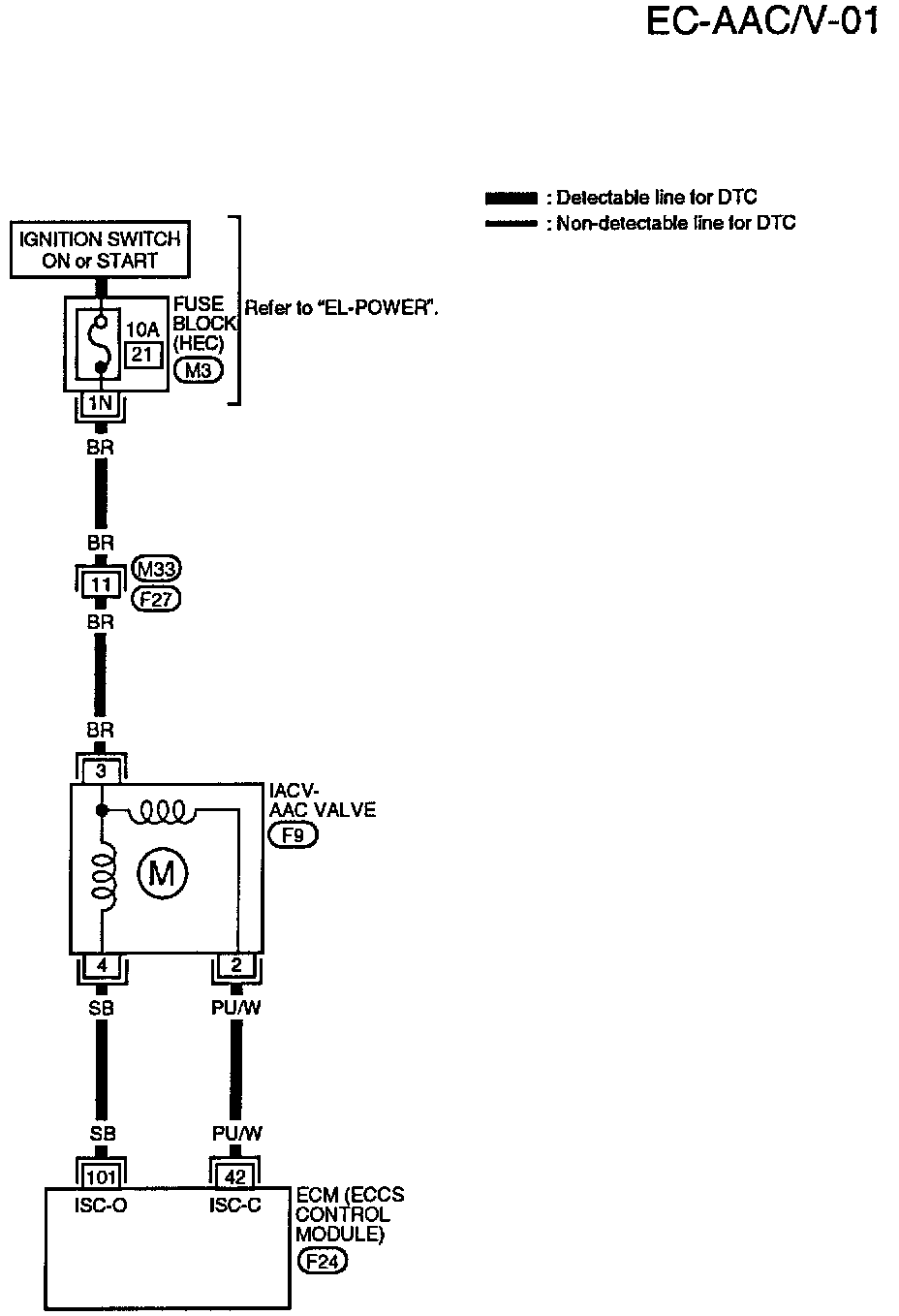

EC-AAC/V-01 Idle Air Control Valve (IACV)-Auxiliary Air Control (AAC) Valve (DTC:P0505):
