Electrical Diagrams

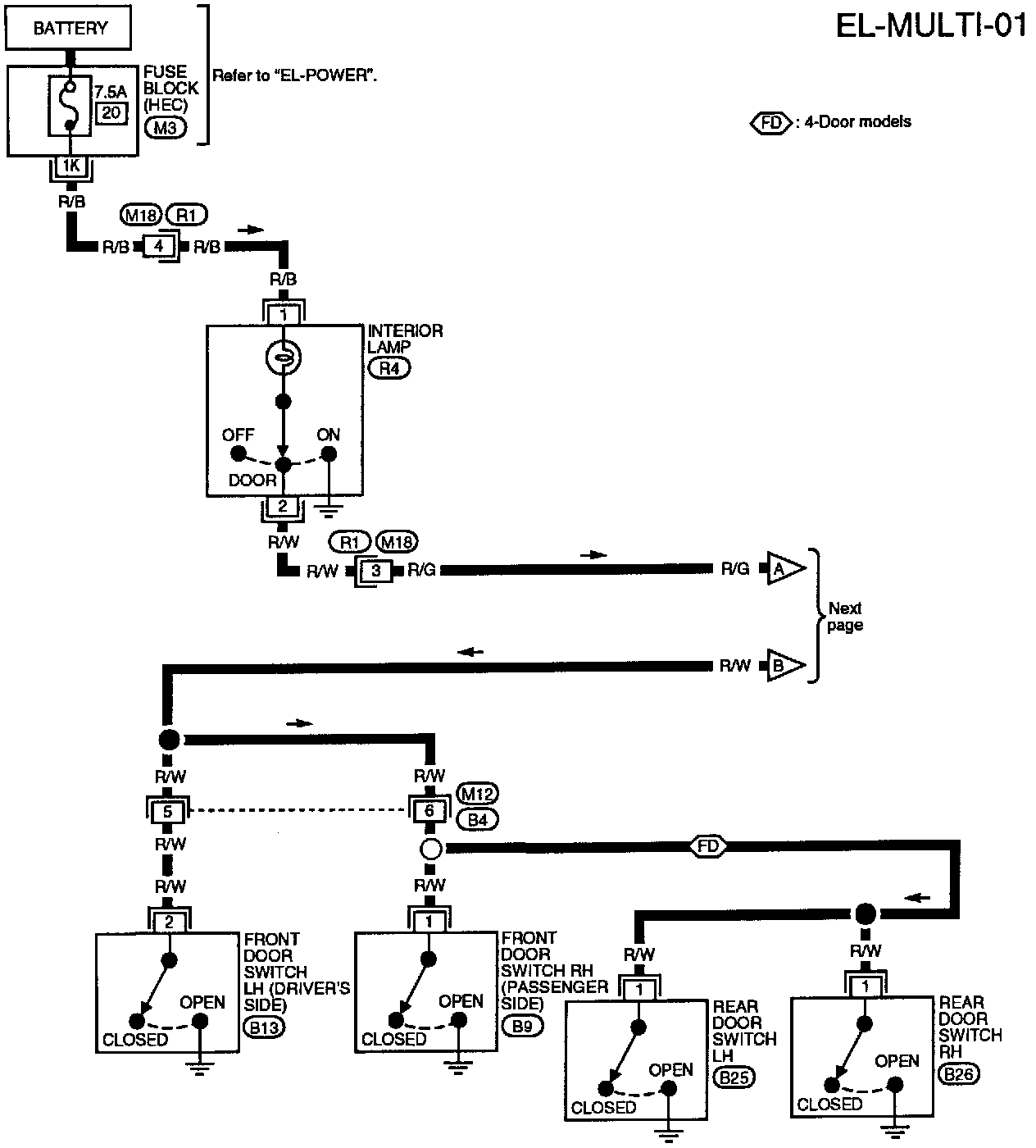

EL-MULTI-01 Multi-Remote Control System-Wiring Diagram (Part 1 Of 4):

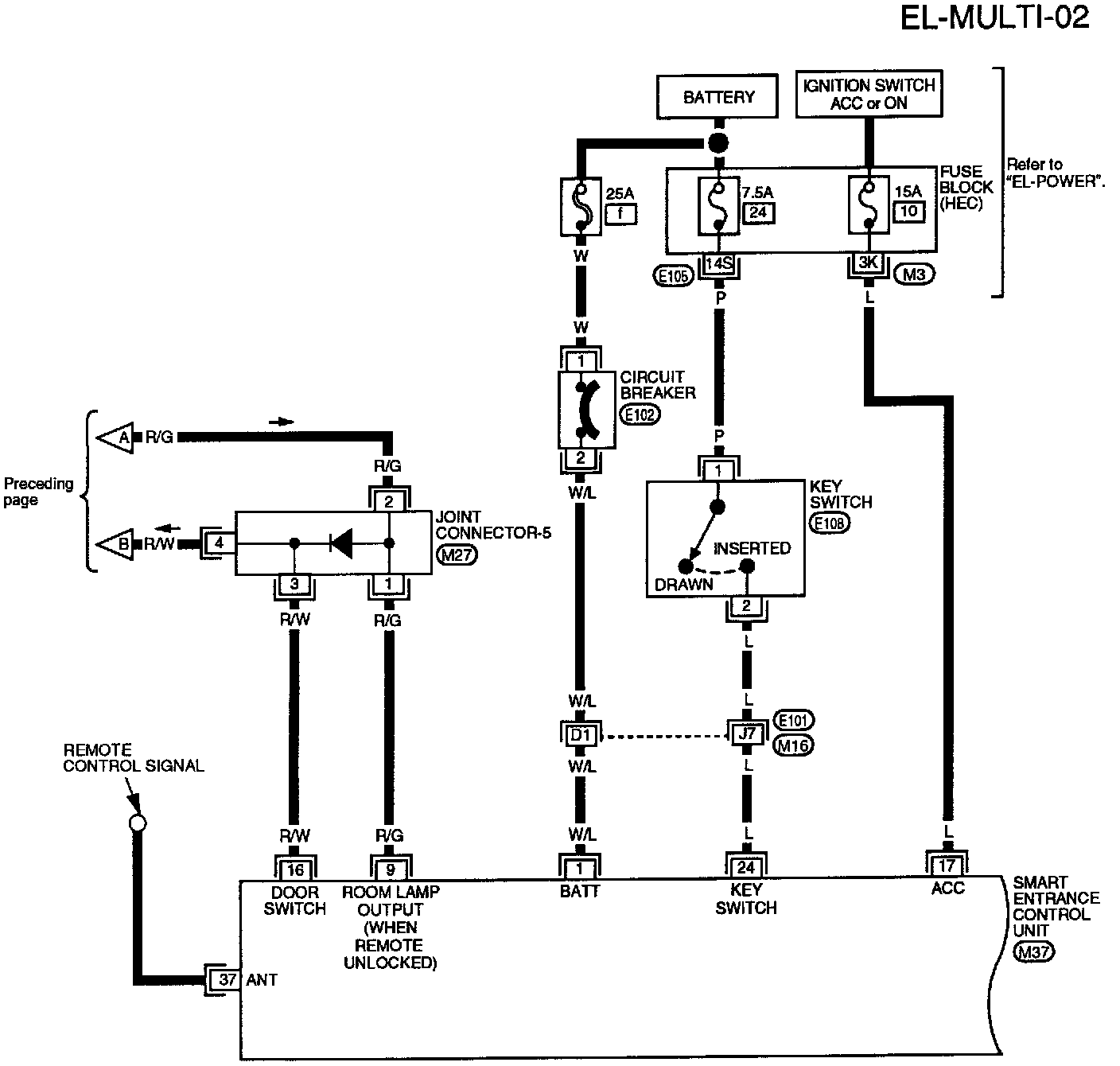

EL-MULTI-02 Multi-Remote Control System-Wiring Diagram (Part 2 Of 4):

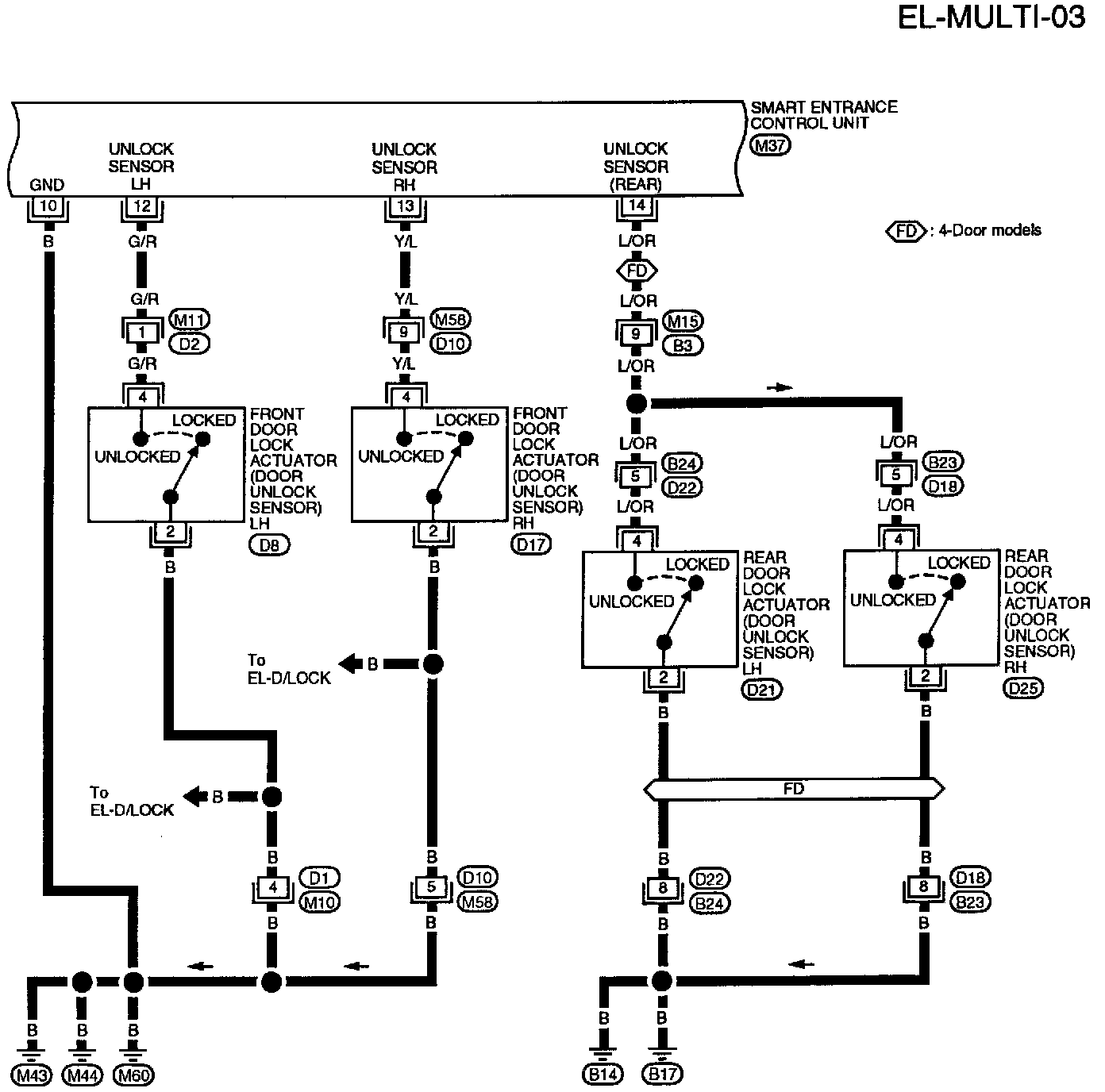

EL-MULTI-03 Multi-Remote Control System-Wiring Diagram (Part 3 Of 3):

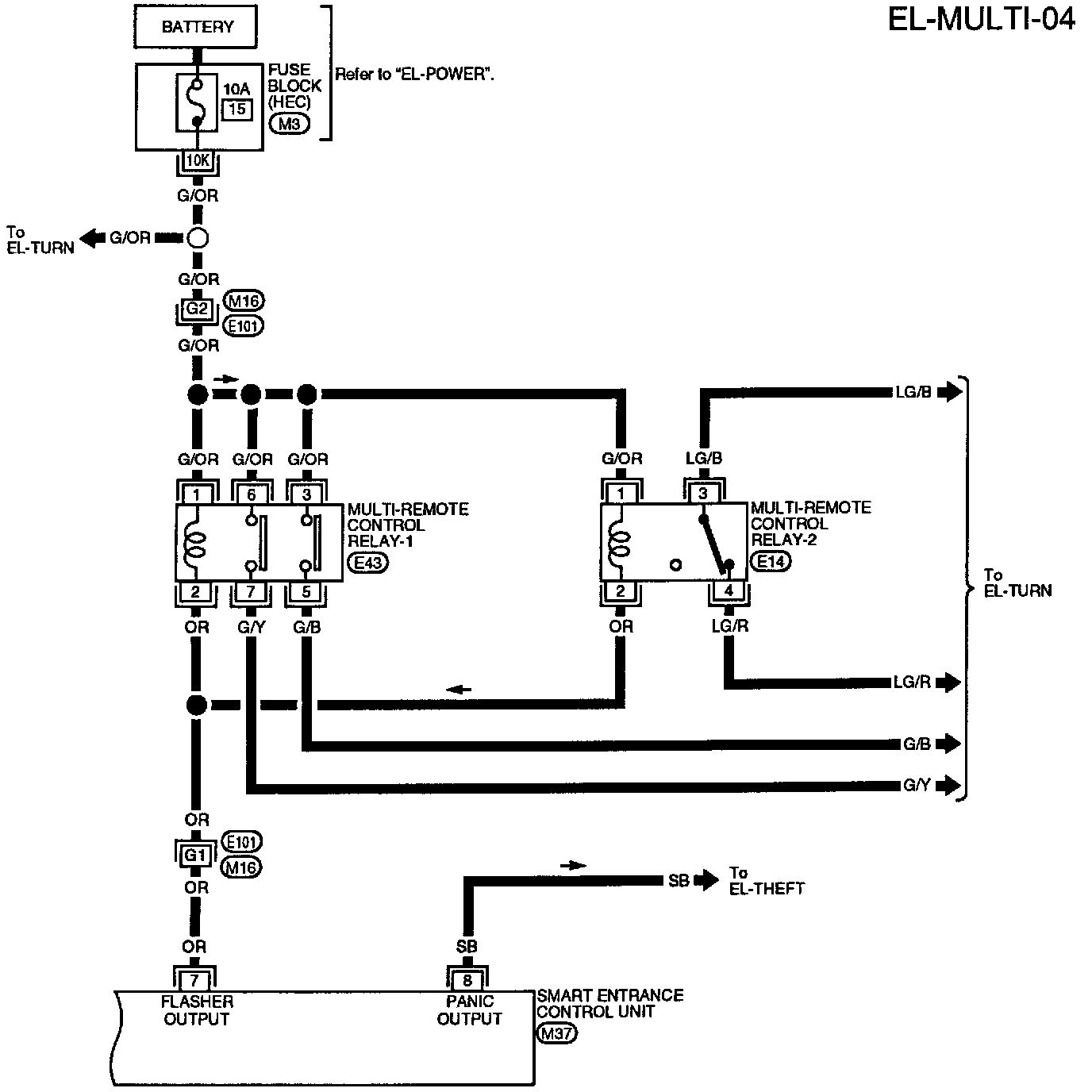

EL-MULTI-04 Multi-Remote Control System-Wiring Diagram (Part 4 Of 4):
