Models Without Power Door Locks
Models Without Power Door Locks

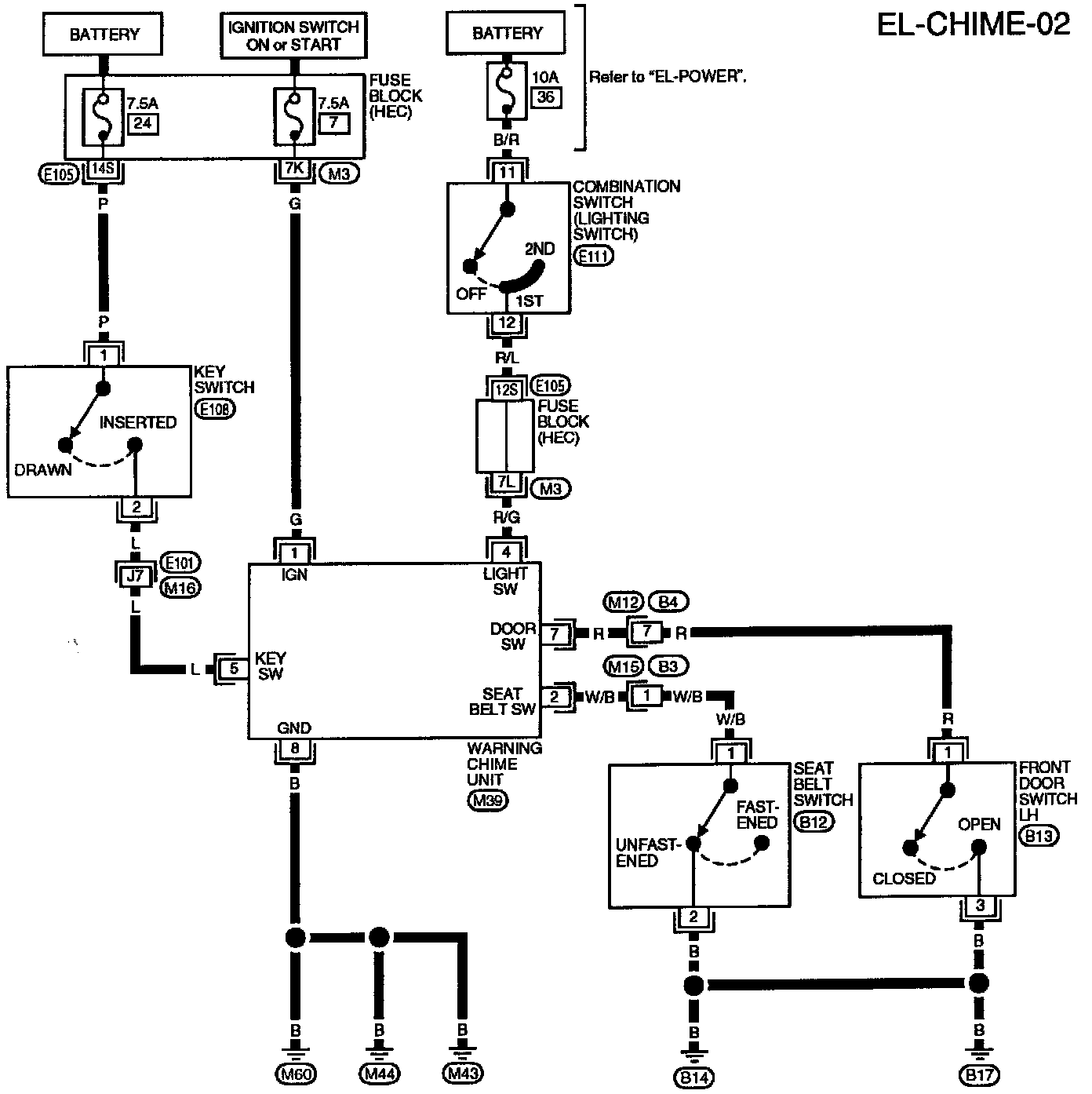

EL-CHIME-02 Warning Chime-Wiring Diagram-Models Without Power Door Locks:
