RS-SRS
RS-SRS

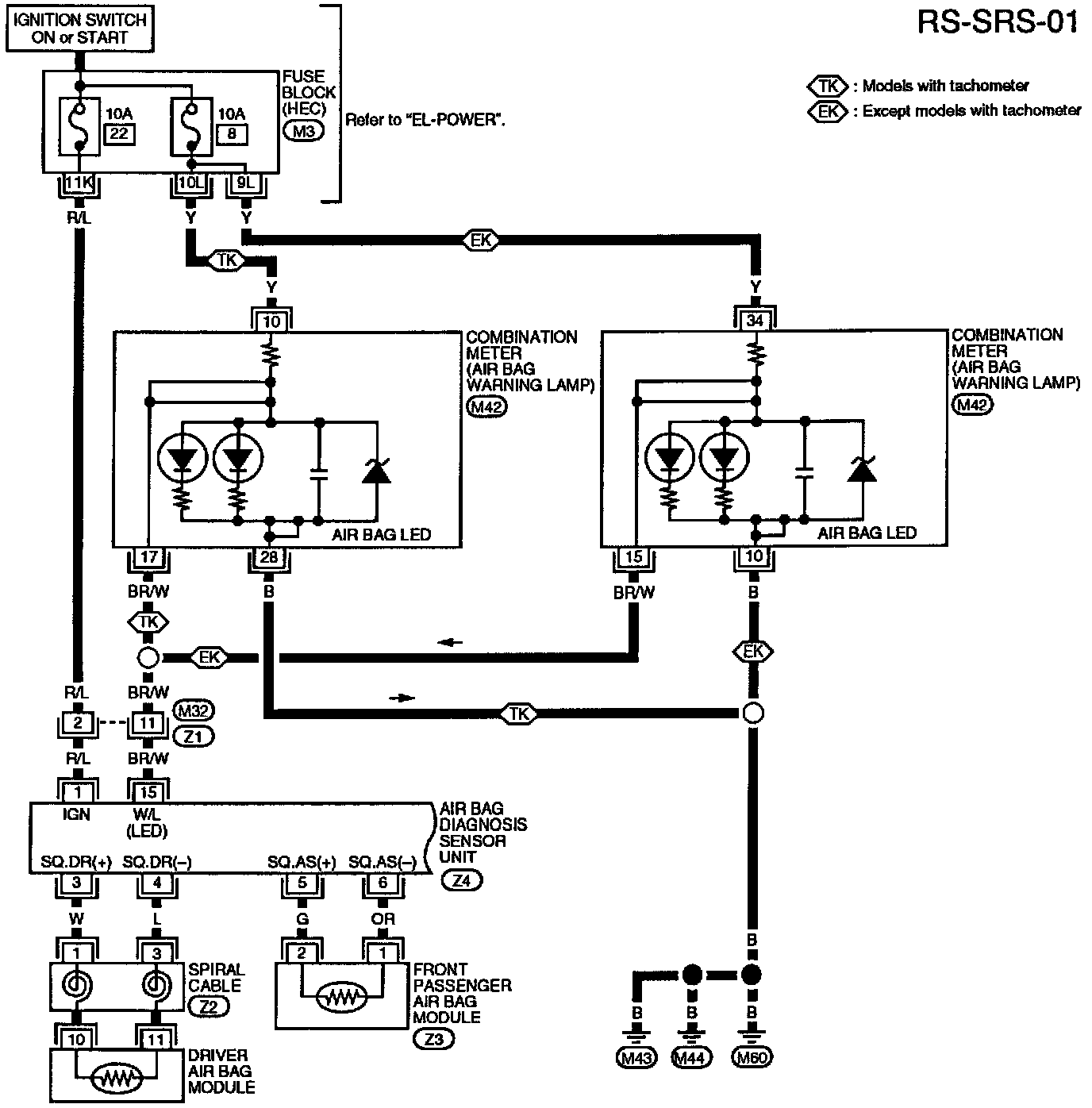

RS-SRS-01 Supplemental Restraint System-Wiring Diagram (Part 1 Of 2):

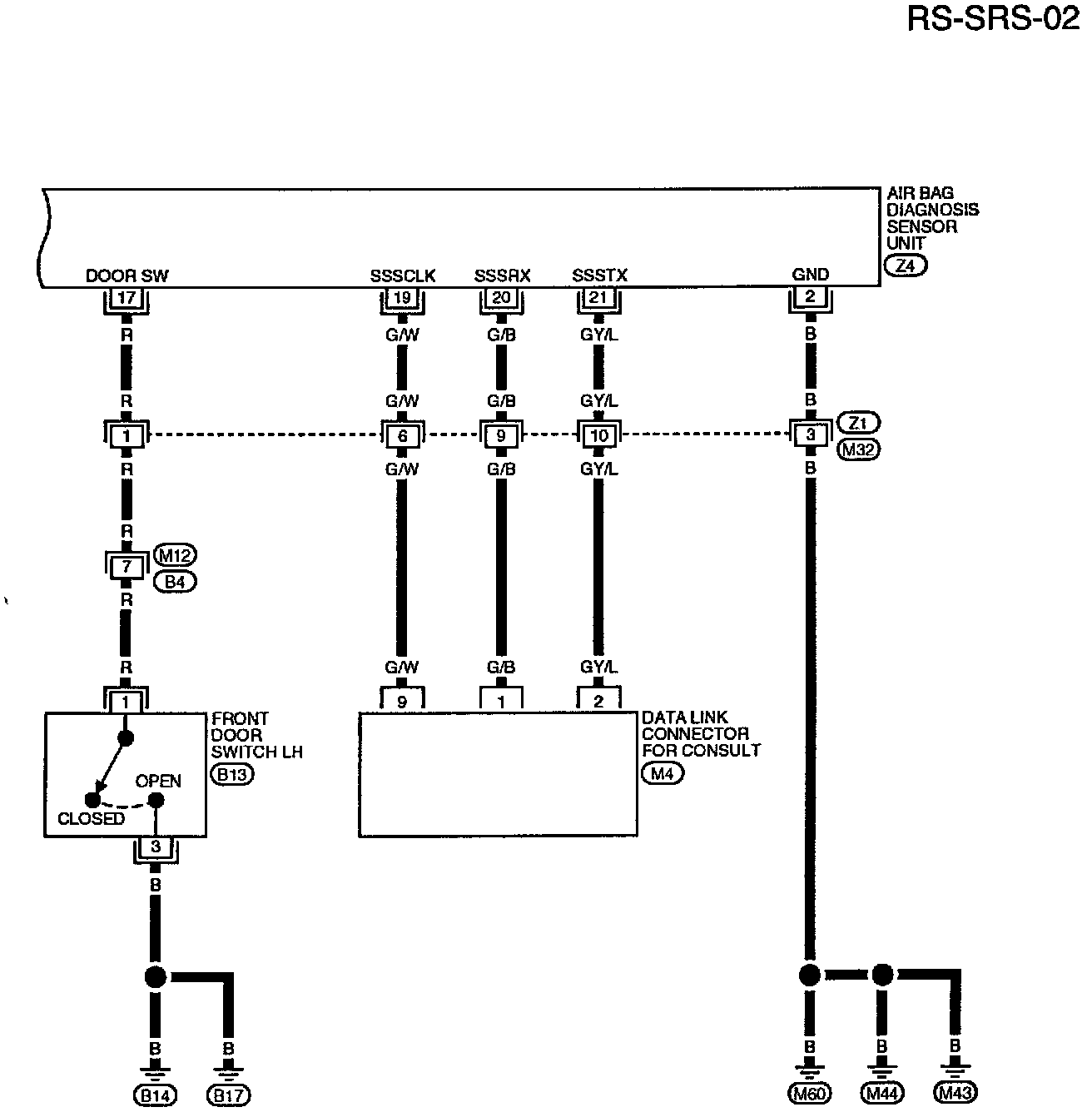

RS-SRS-02 Supplemental Restraint System-Wiring Diagram (Part 2 Of 2):
