EL-WARN
>>
Models With Tachometer
Models With Tachometer

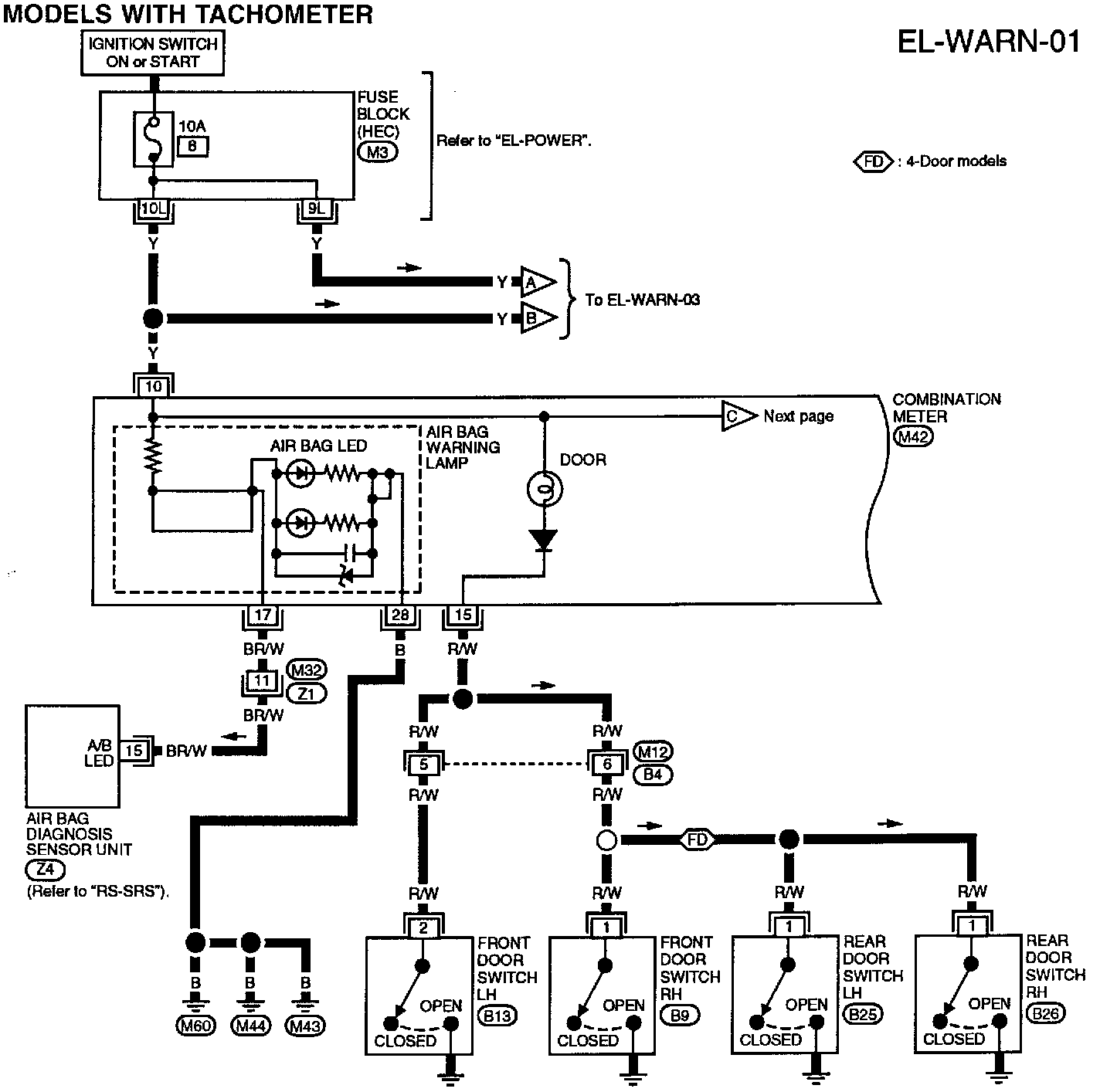

EL-WARN-01 Warning Lamps-Wiring Diagram (With Tachometer)(Part 1 Of 3):

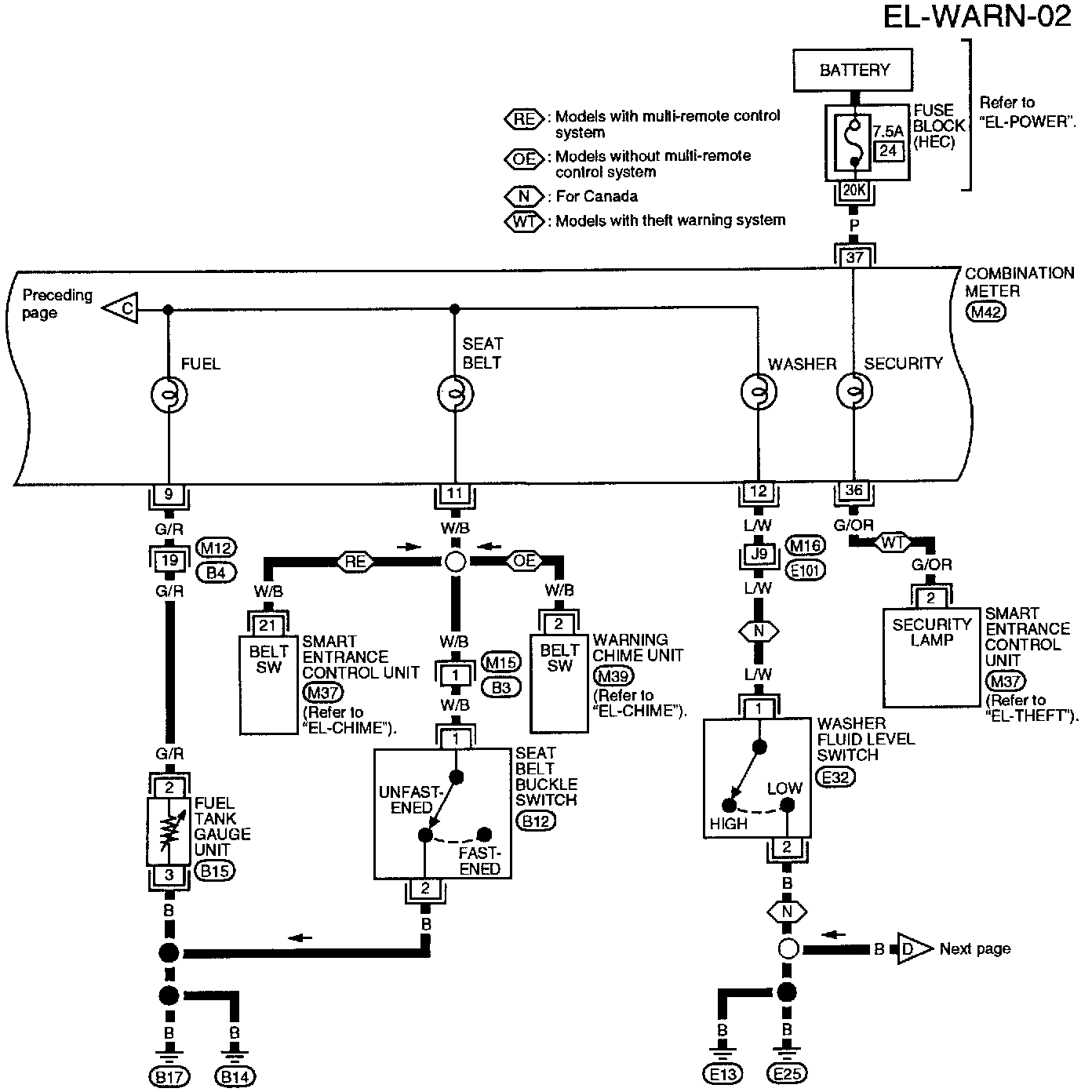

EL-WARN-02 Warning Lamps-Wiring Diagram (With Tachometer)(Part 2 Of 2):

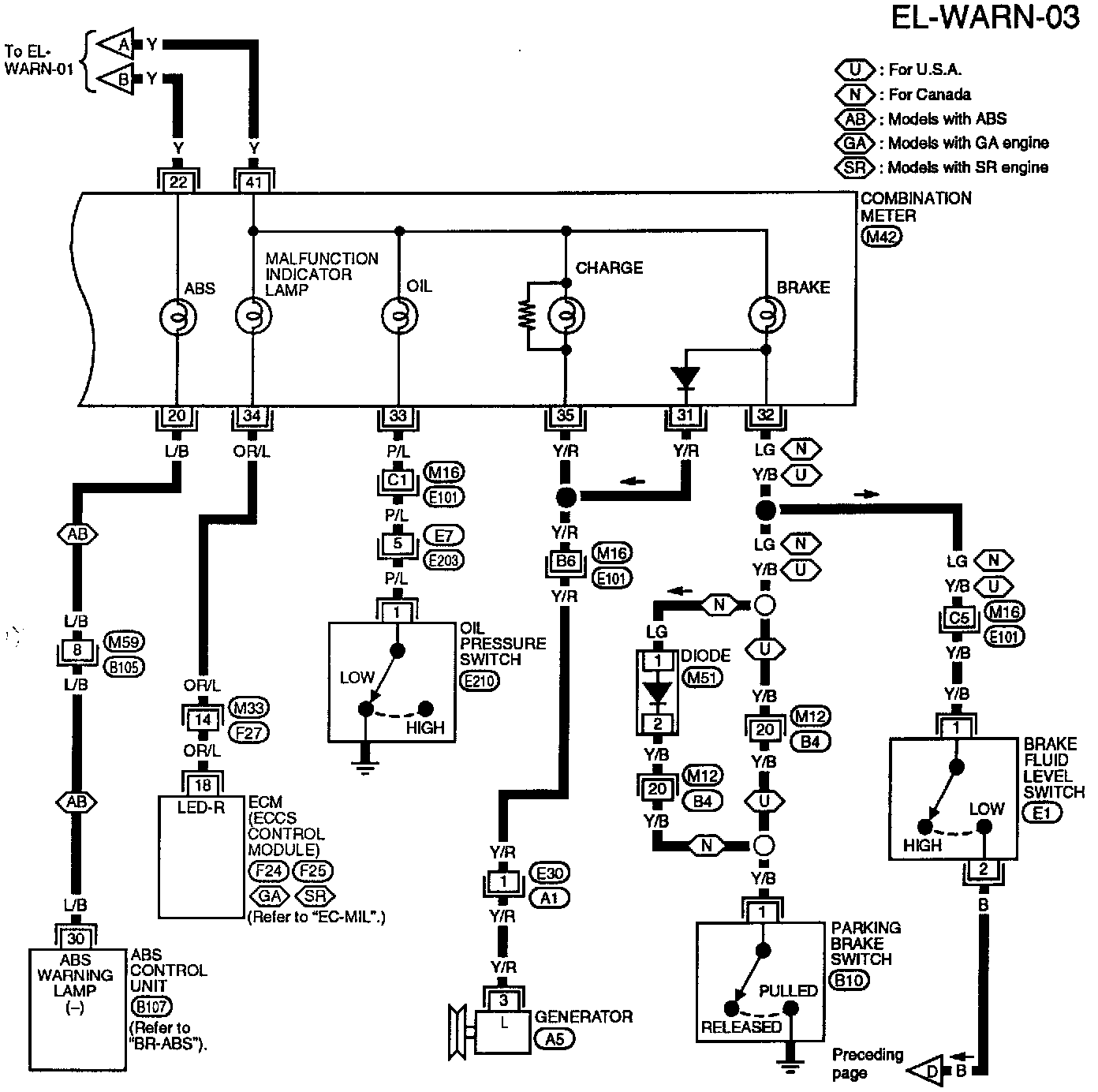

EL-WARN-03 Warning Lamps-Wiring Diagram (With Tachometer)(Part 3 Of 3):
