LEMON Manuals
: Even more car manuals for everyone
Home
>>
Nissan-Datsun
>>
1995
>>
200SX L4-1597cc 1.6L DOHC MFI (GA16DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Diagram Name
>>
EL-THEFT
>>
Theft Warning System (A/T Models)
Theft Warning System (A/T Models)

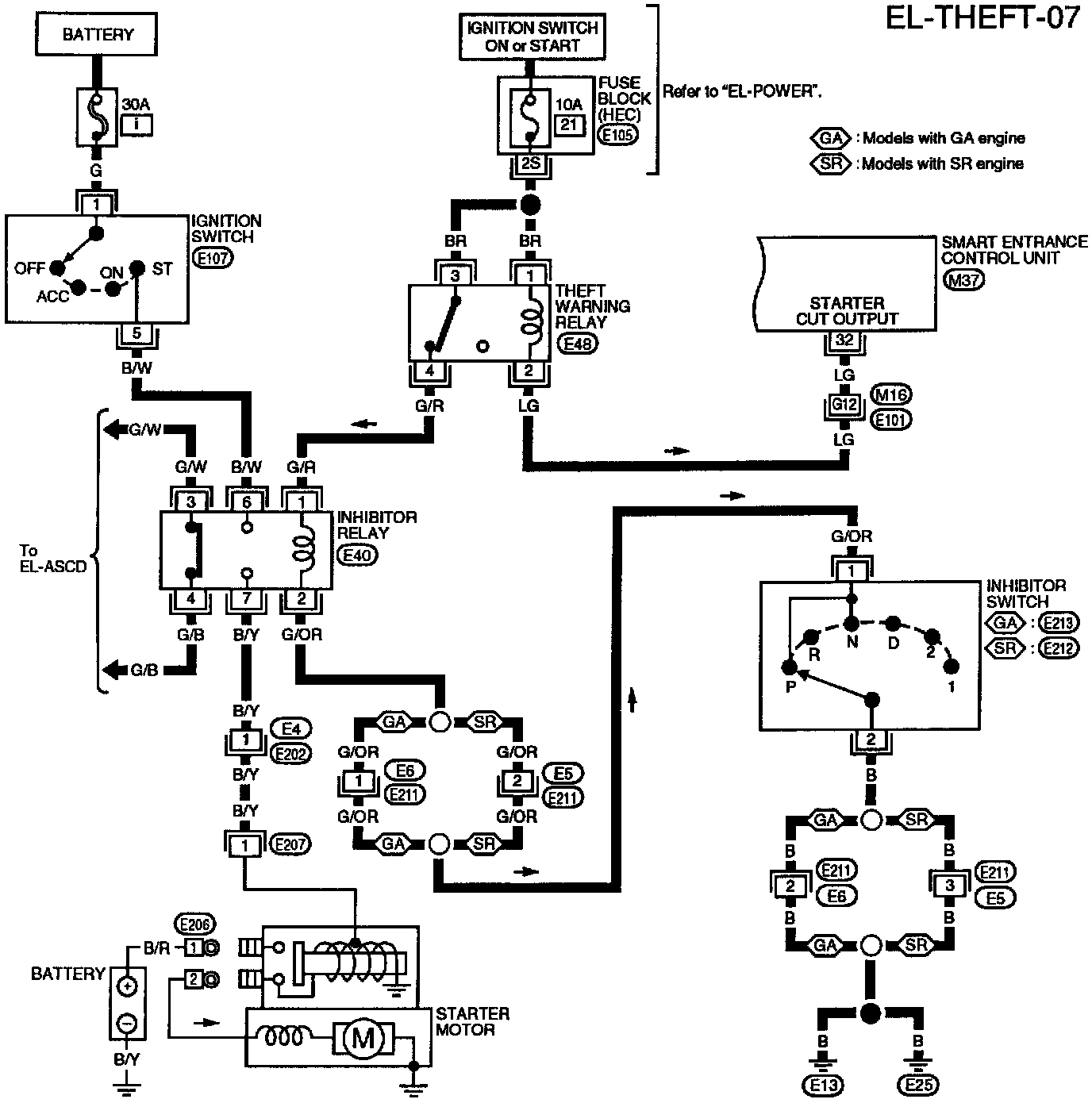

EL-THEFT-07 Theft Warning System-Wiring Diagram (A/T Models):
