EL-D/LOCK
EL-D/LOCK

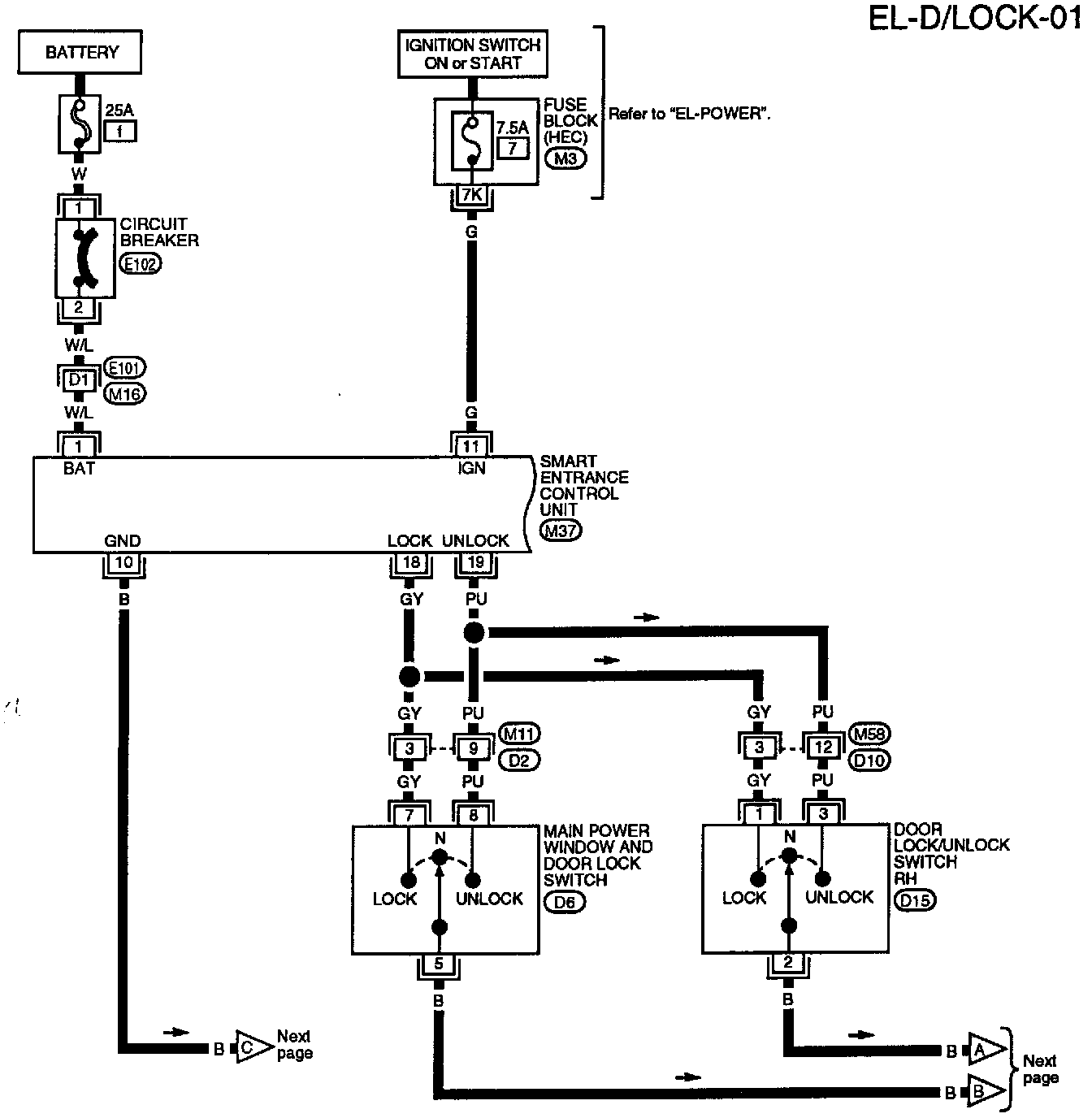

EL-D/LOCK-01 Power Door Lock-Wiring Diagram (Part 1 Of 3):

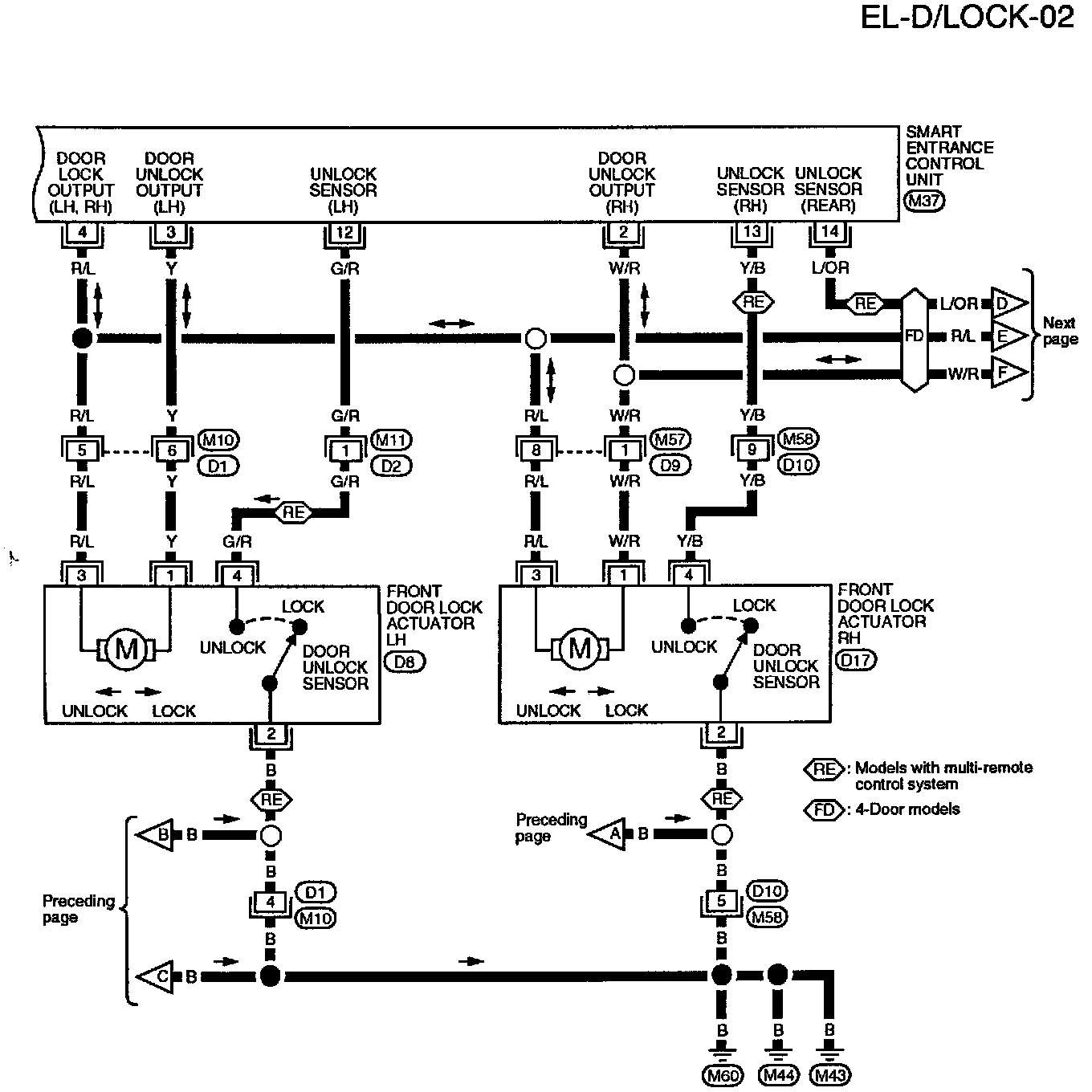

EL-D/LOCK-02 Power Door Lock-Wiring Diagram (Part 2 Of 3):

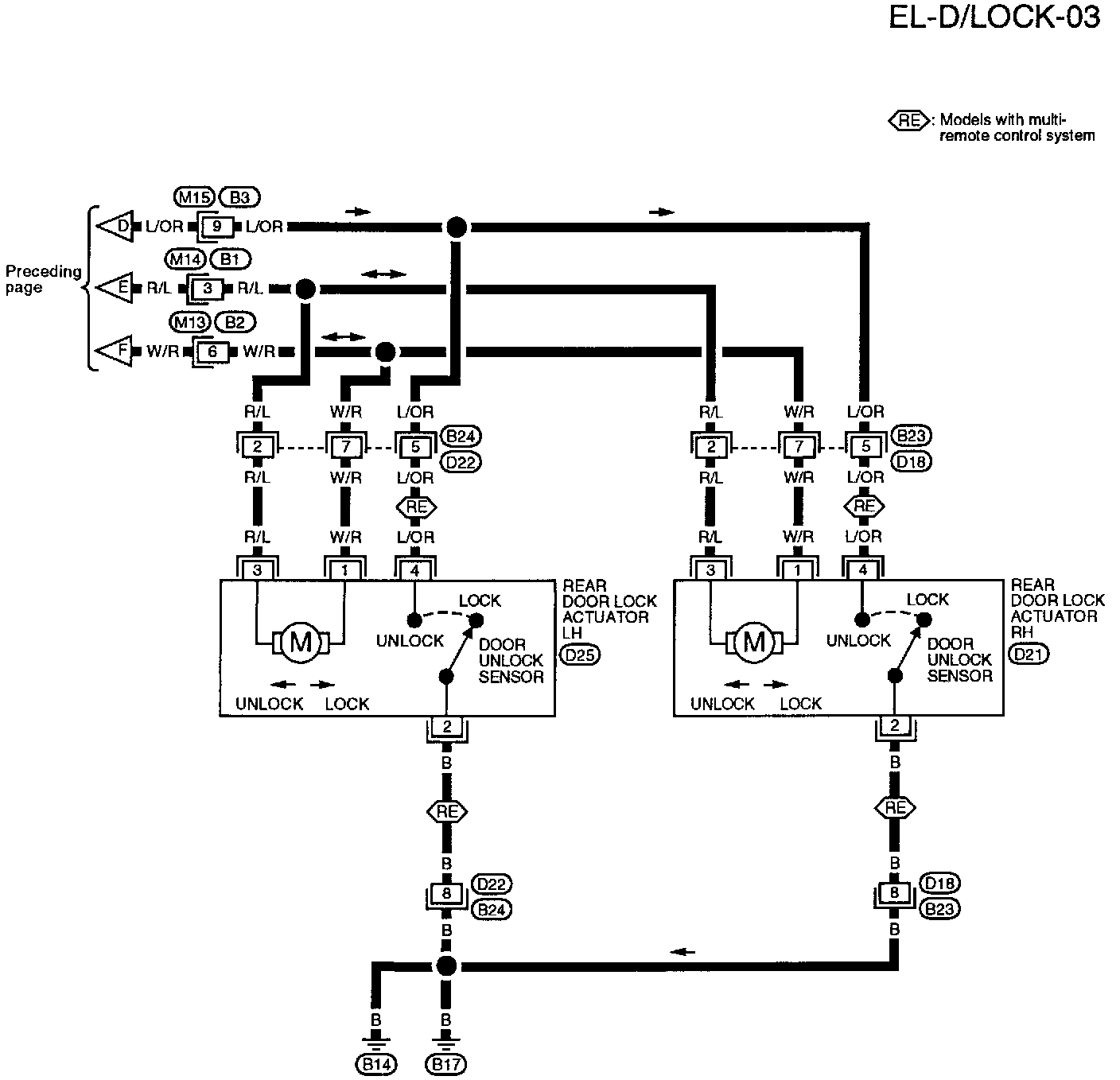

EL-D/LOCK-03 Power Door Lock-Wiring Diagram (Part 3 Of 3):
