EL-ASCD
>>
Automatic Speed Control Device (ASCD)-With Tachometer
Automatic Speed Control Device (ASCD)-With Tachometer

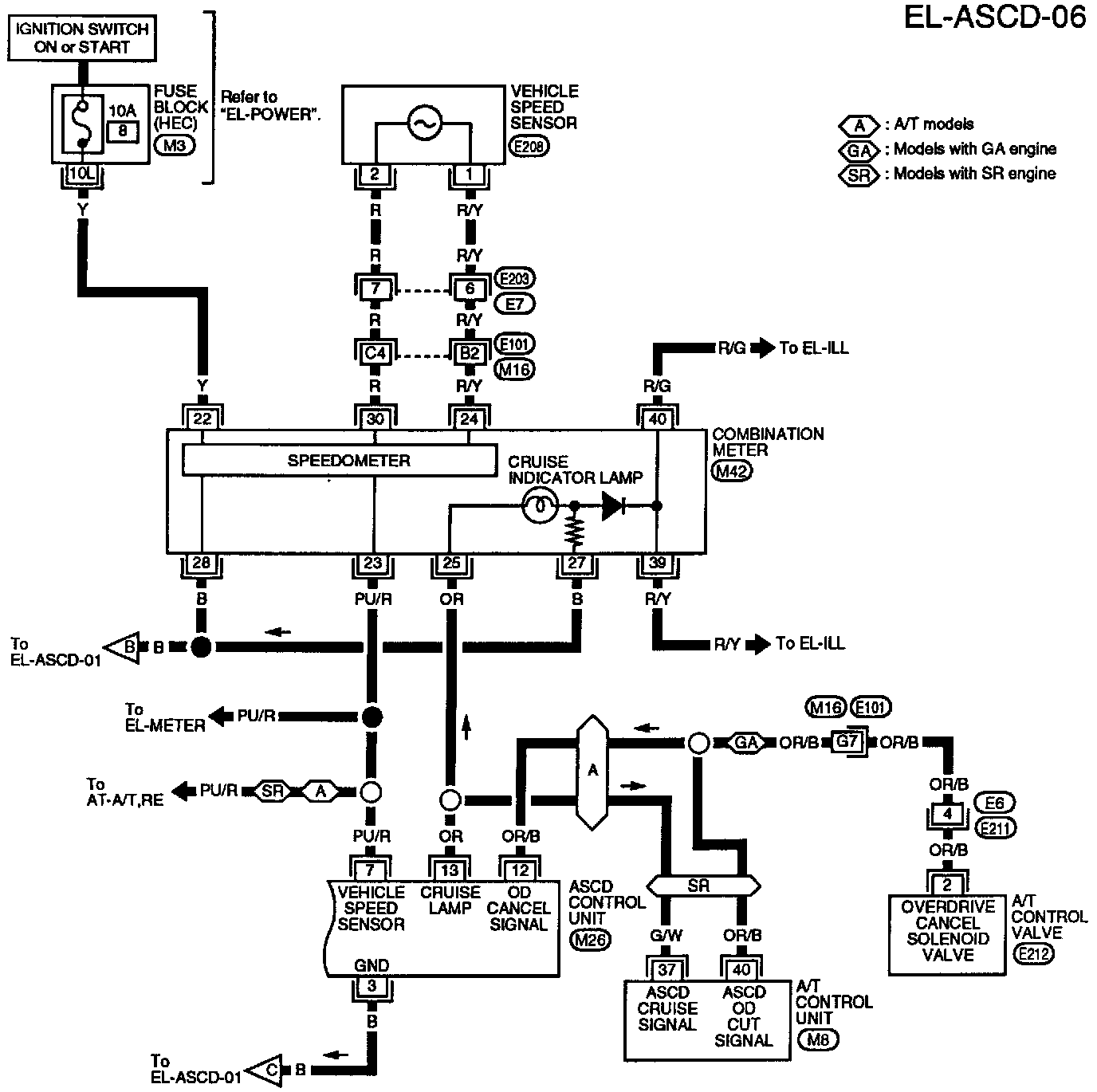

EL-ASCD-06 Automatic Speed Control Device (ASCD)-Wiring Diagram-Models With Tachometer:
