Home
>>
Nissan-Datsun
>>
1995
>>
200SX L4-1597cc 1.6L DOHC MFI (GA16DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Diagram Name
>>
EC-FRO2/H
EC-FRO2/H

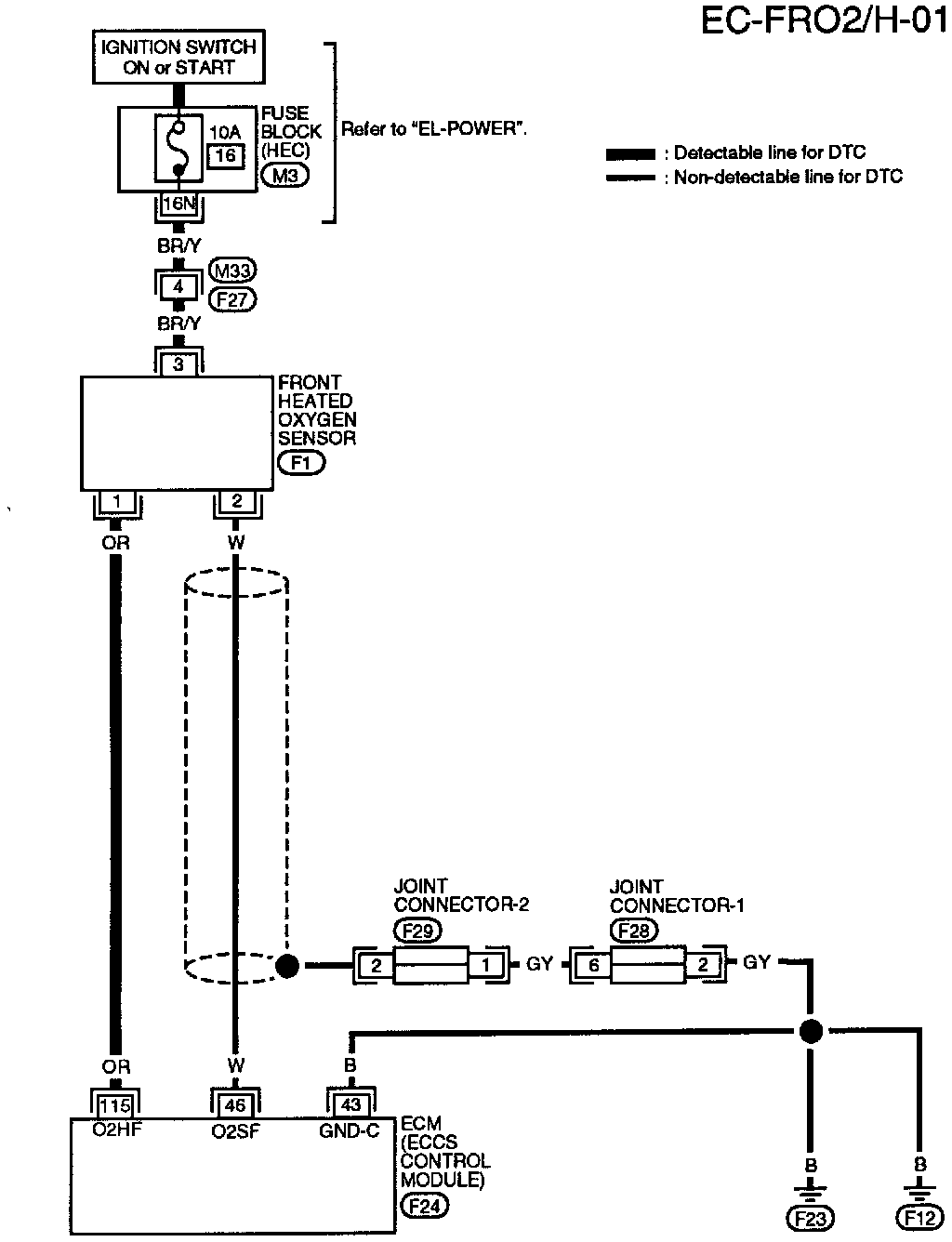

EC-FRO2/H-01 Front Heated Oxygen Sensor Heater (DTC:P0135) (M/T Models For California And A/T Models):
