RE4F03V

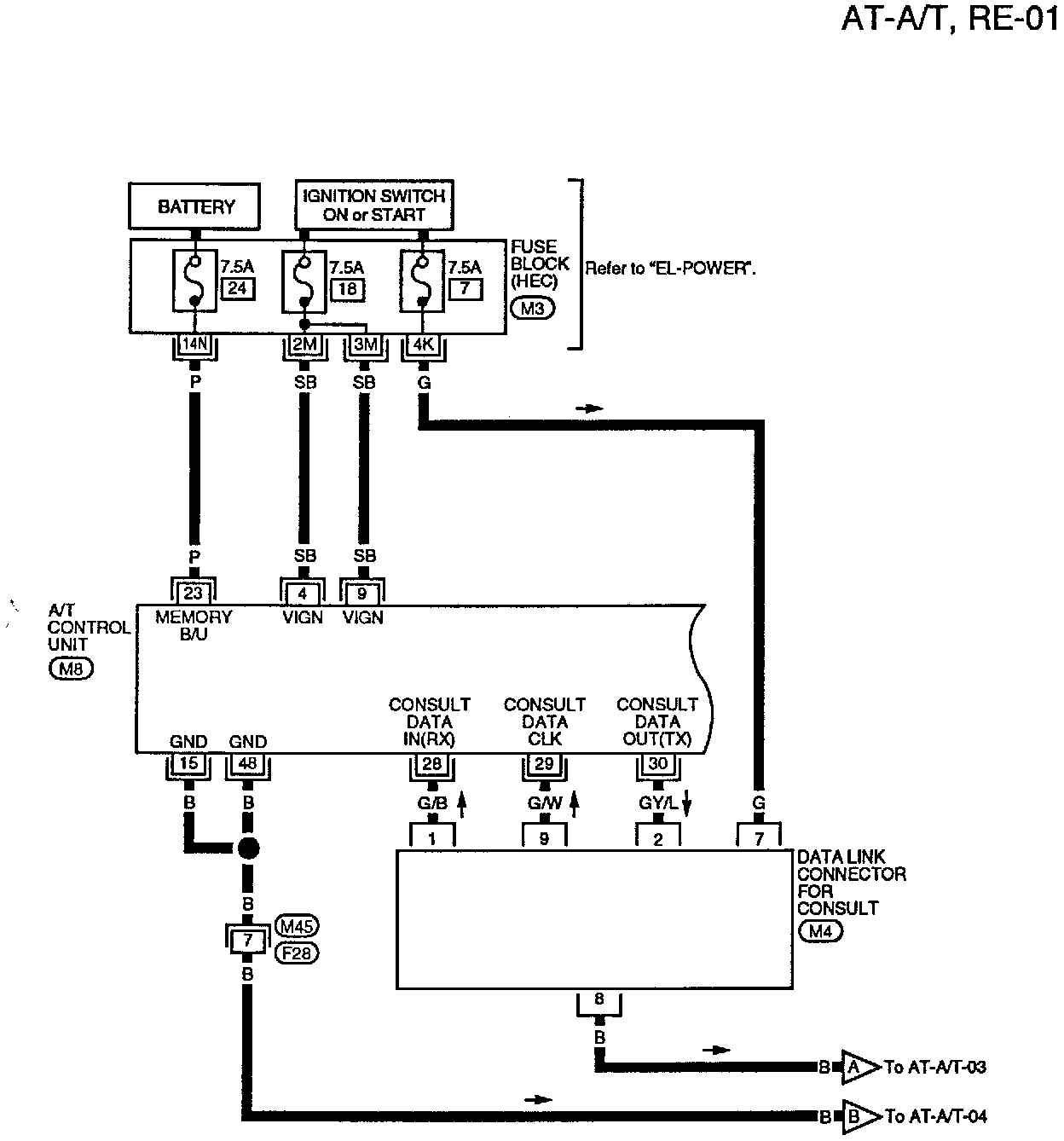

AT-A/T, RE-01 Wiring Diagram (Part 1 Of 6):

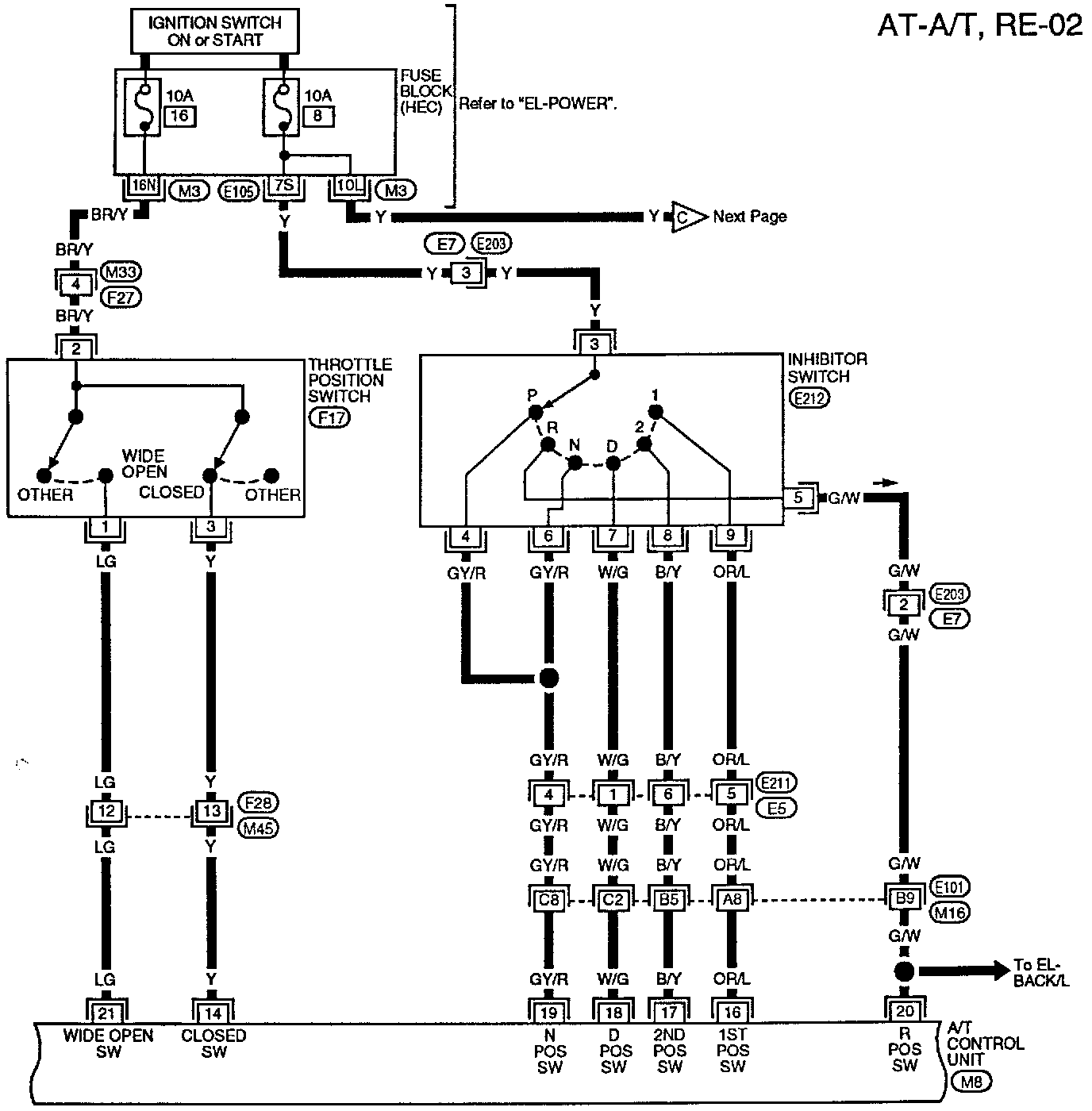

AT-A/T, RE-02 Wiring Diagram (Part 2 Of 6):

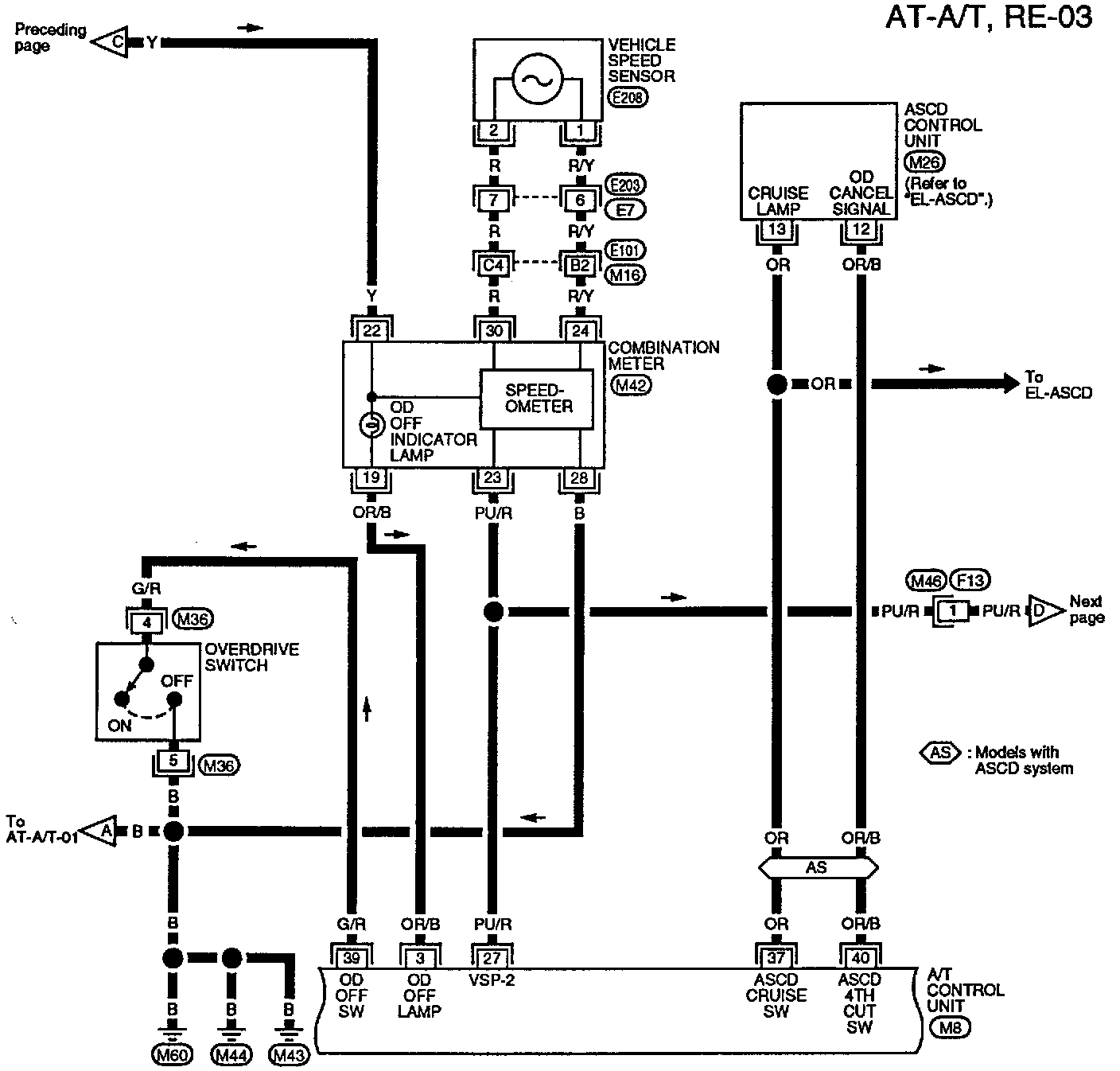

AT-A/T, RE-03 Wiring Diagram (Part 3 Of 6):

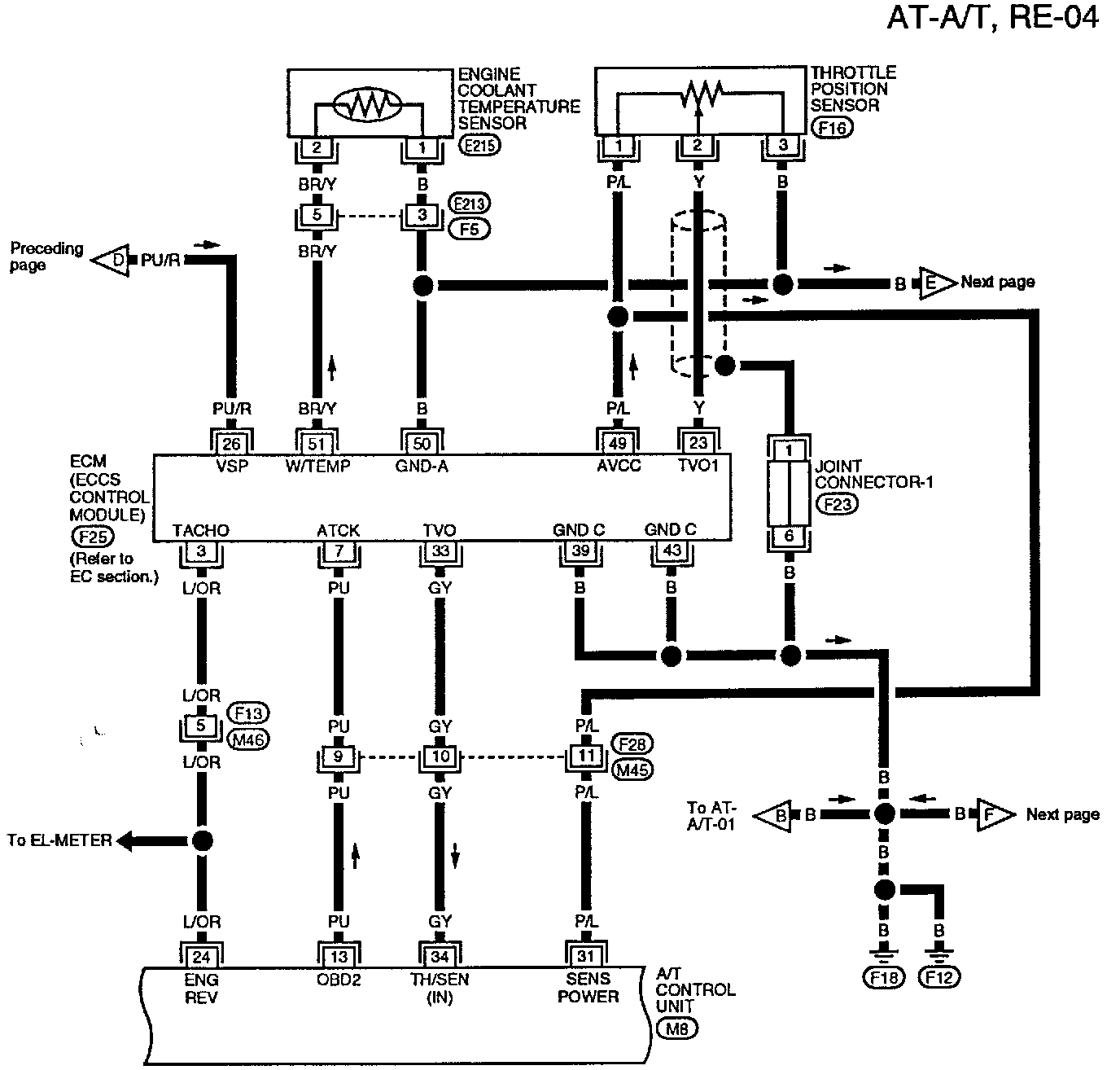

AT-A/T, RE-04 Wiring Diagram (Part 4 Of 6):

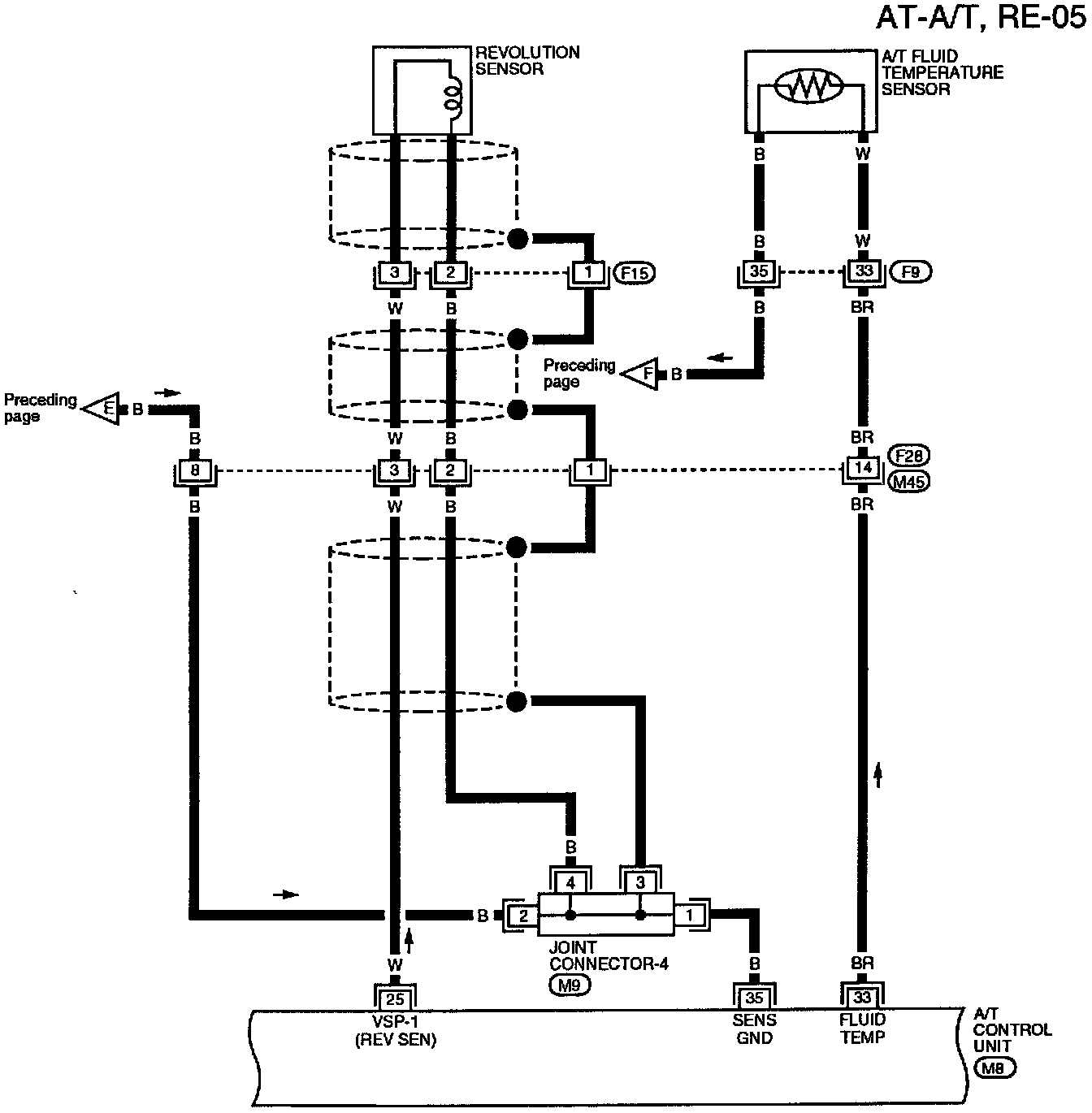

AT-A/T, RE-05 Wiring Diagram (Part 5 Of 6):

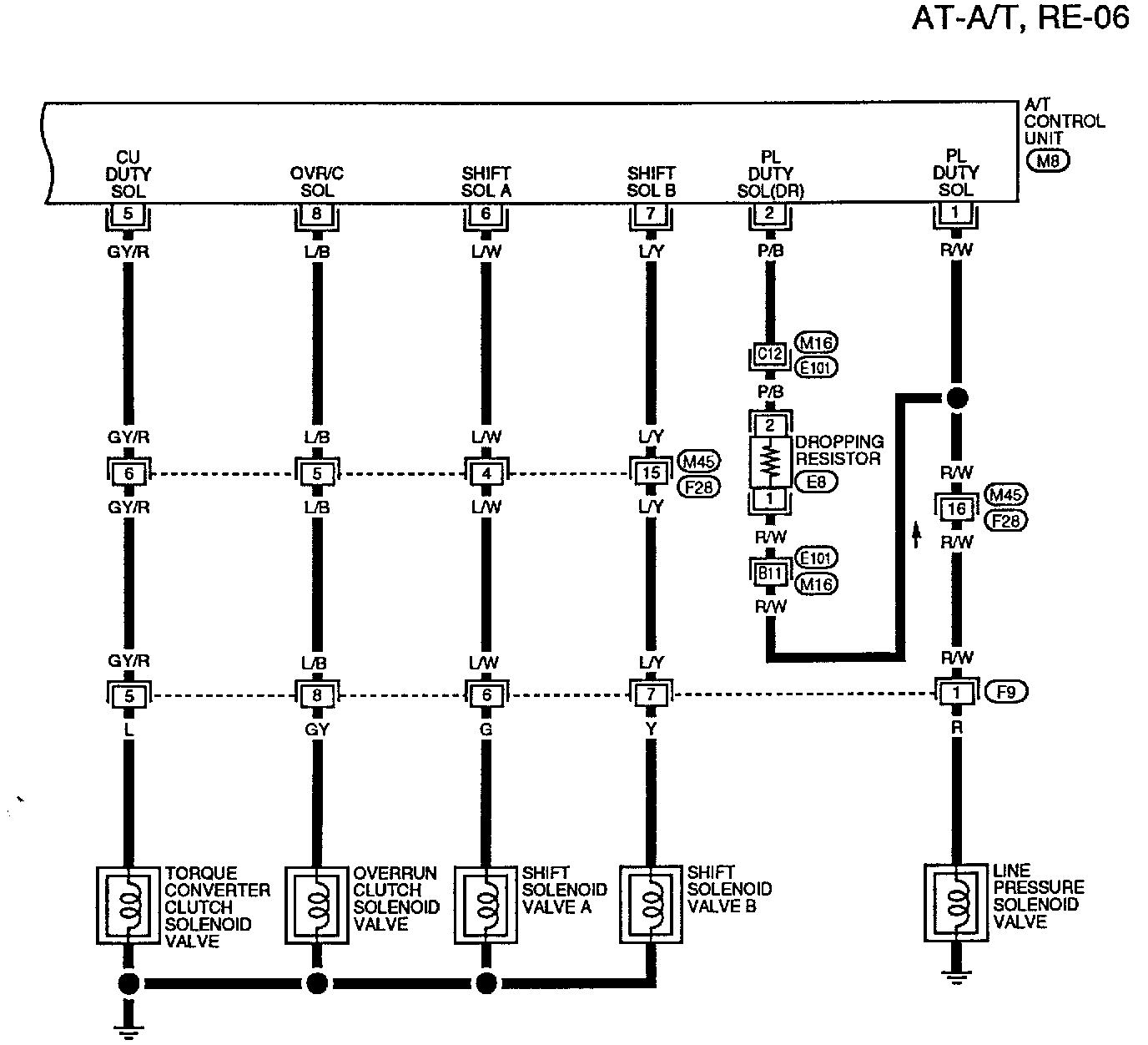

AT-A/T, RE-06 Wiring Diagram (Part 6 Of 6):
