Daytime Running Lamp
Daytime Running Lamp

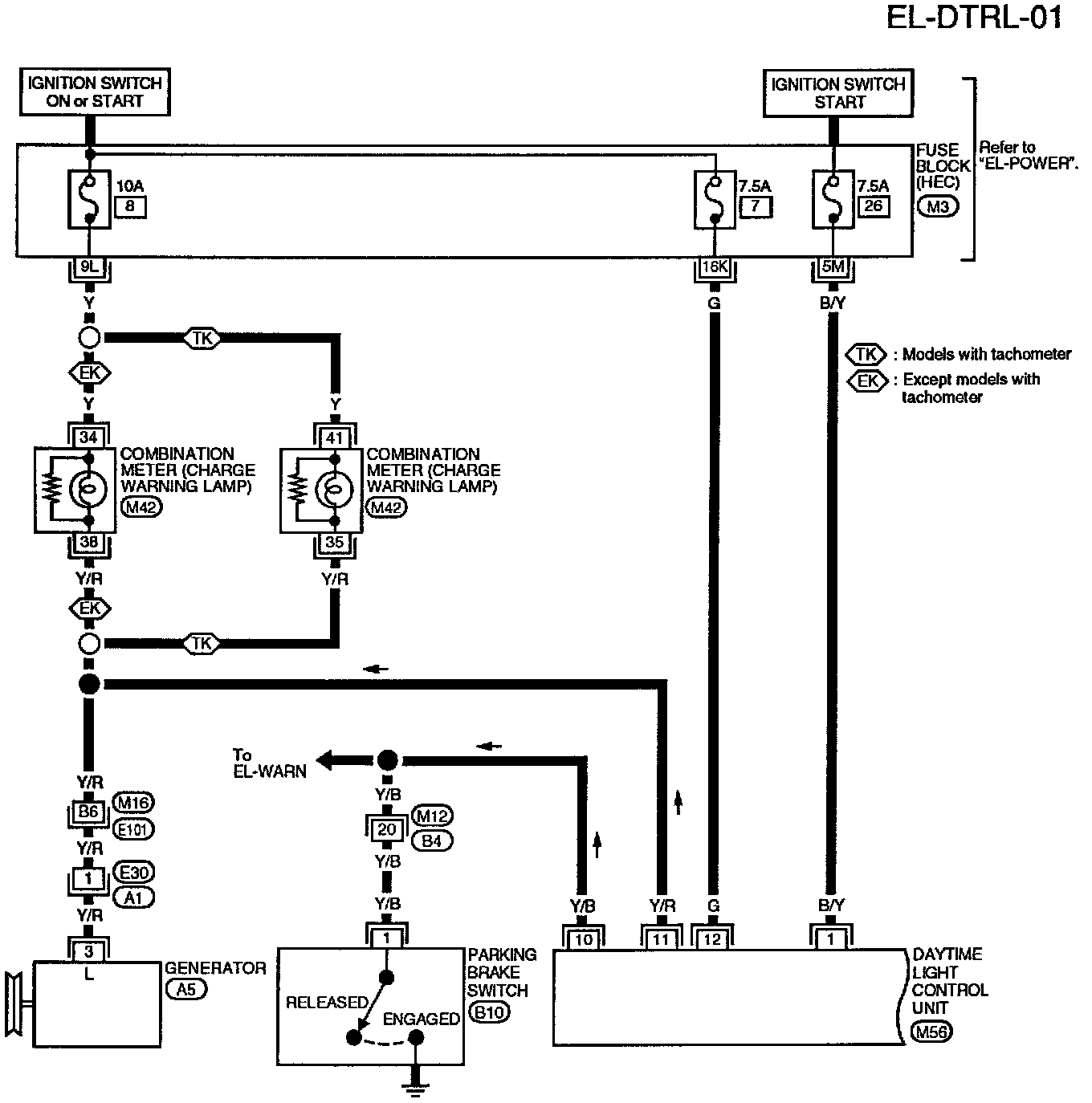

EL-DTRL-01 Daytime Running Light-Wiring Diagram (For Canada) (Part 1 Of 3):

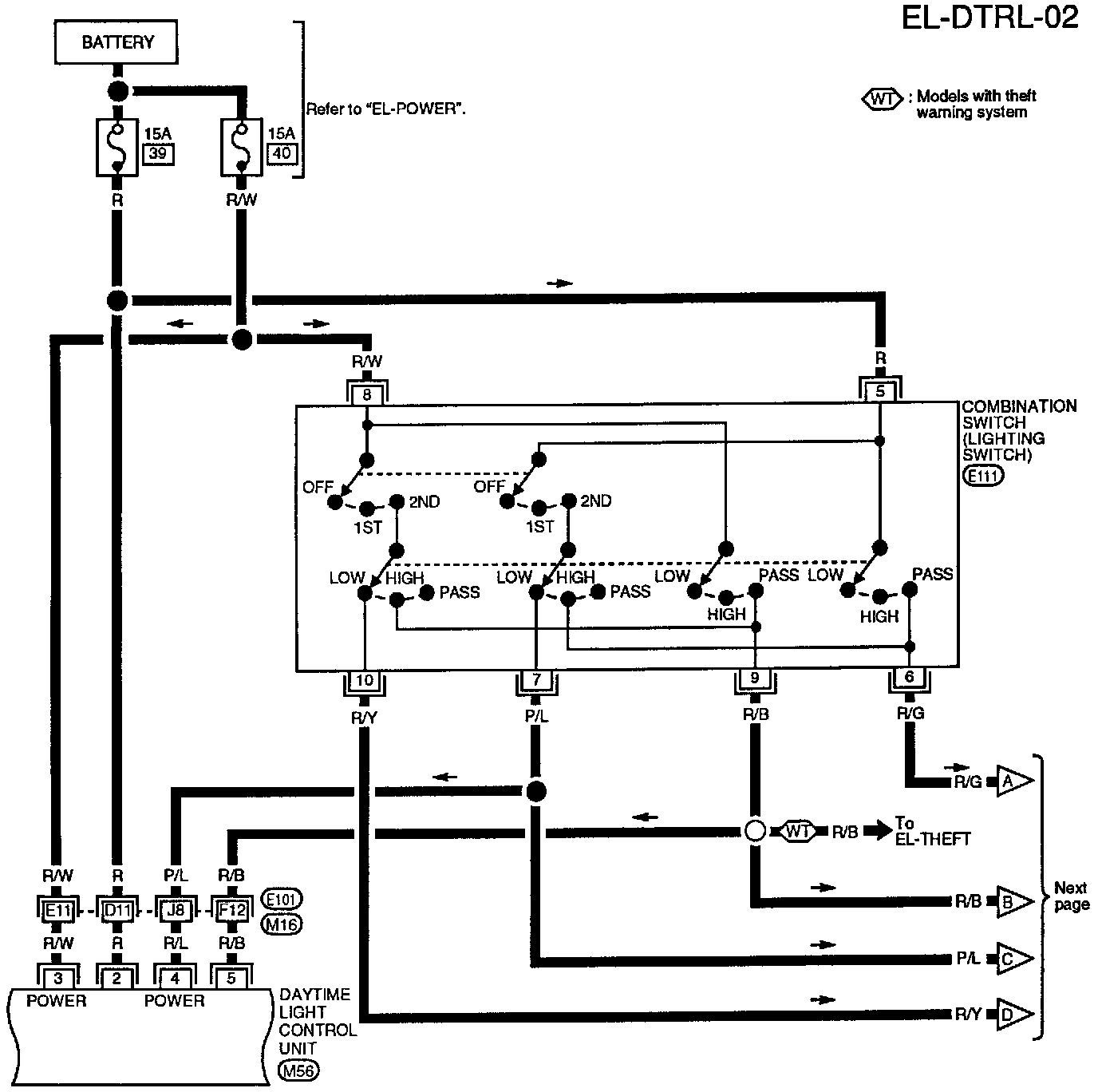

EL-DTRL-02 Daytime Running Light-Wiring Diagram (For Canada) (Part 2 Of 3):

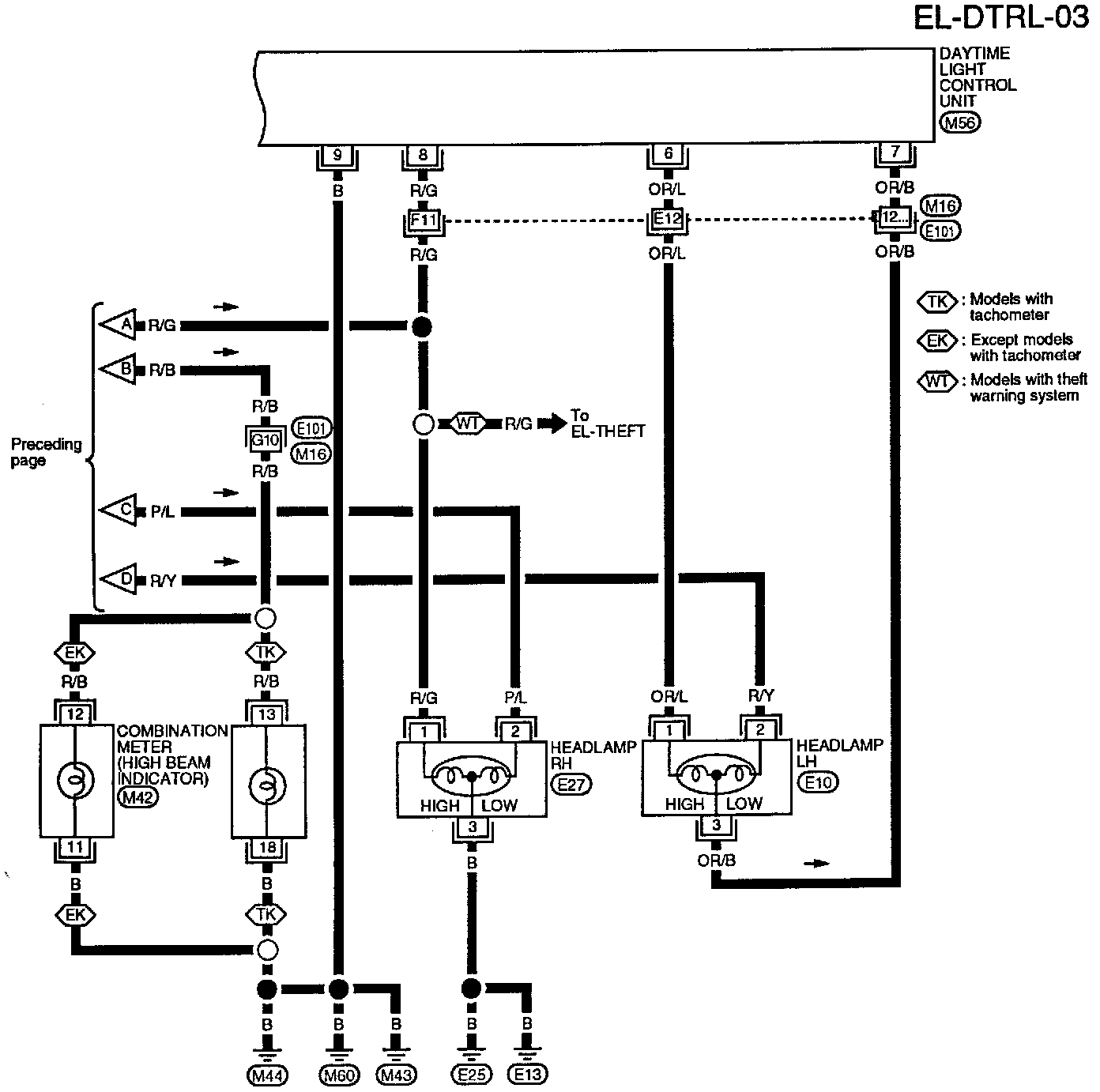

EL-DTRL-03 Daytime Running Light-Wiring Diagram (For Canada) (Part 3 Of 3):
