ABS Wiring Circuit

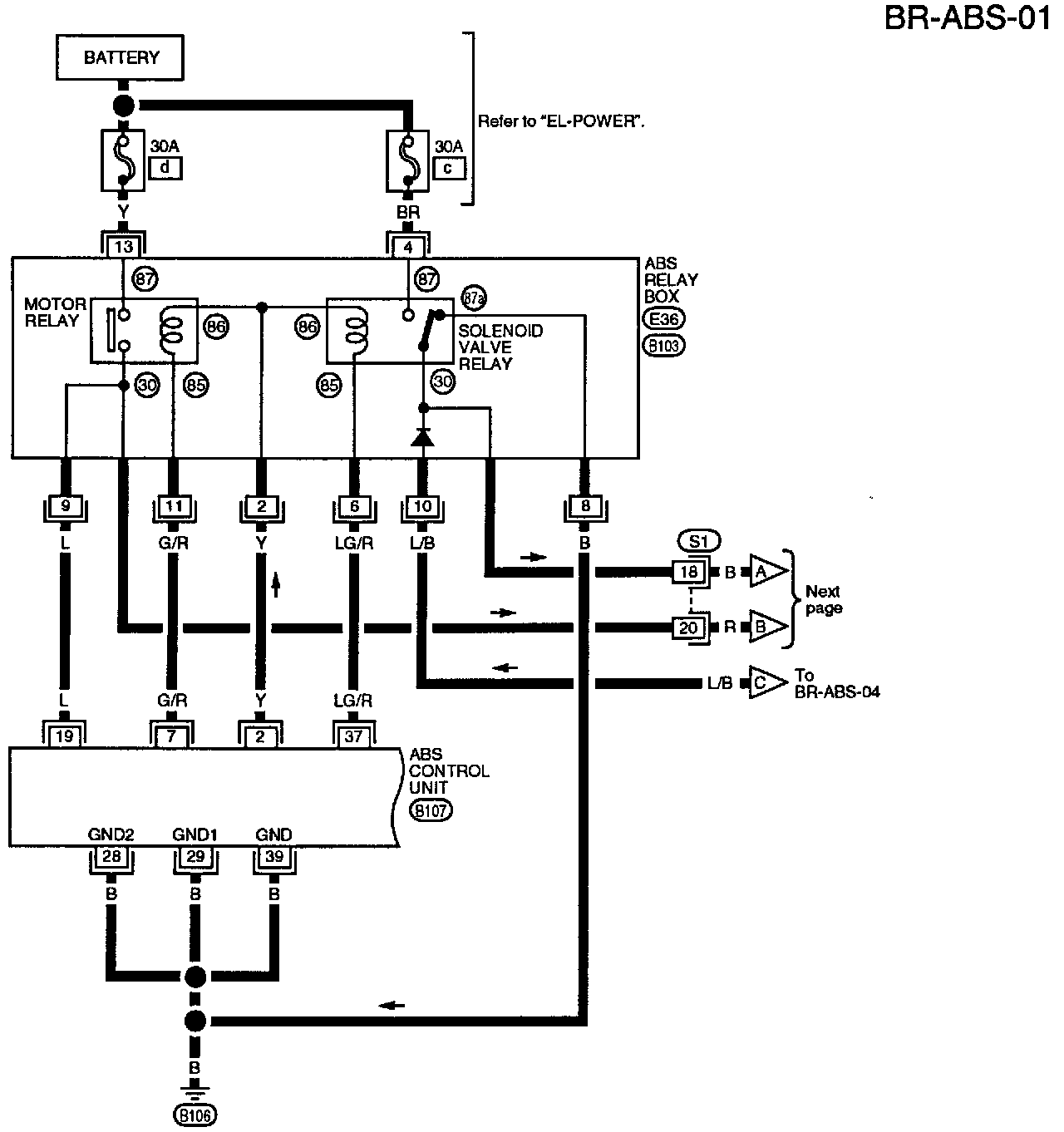

BR-ABS-01 Anti-Lock Brake System-Wiring Diagram (Part 1 Of 4):

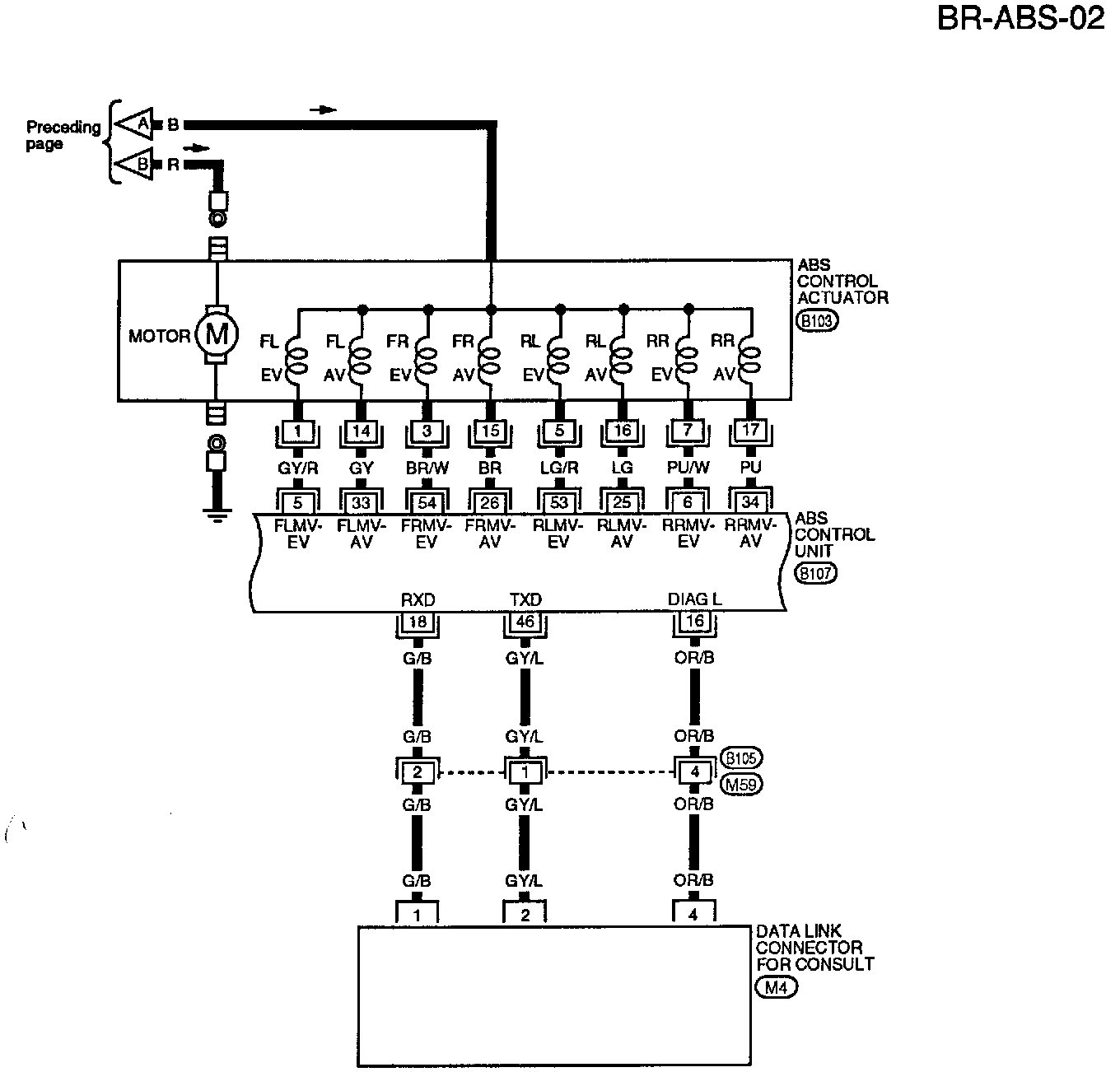

BR-ABS-02 Anti-Lock Brake System-Wiring Diagram (Part 2 Of 4):

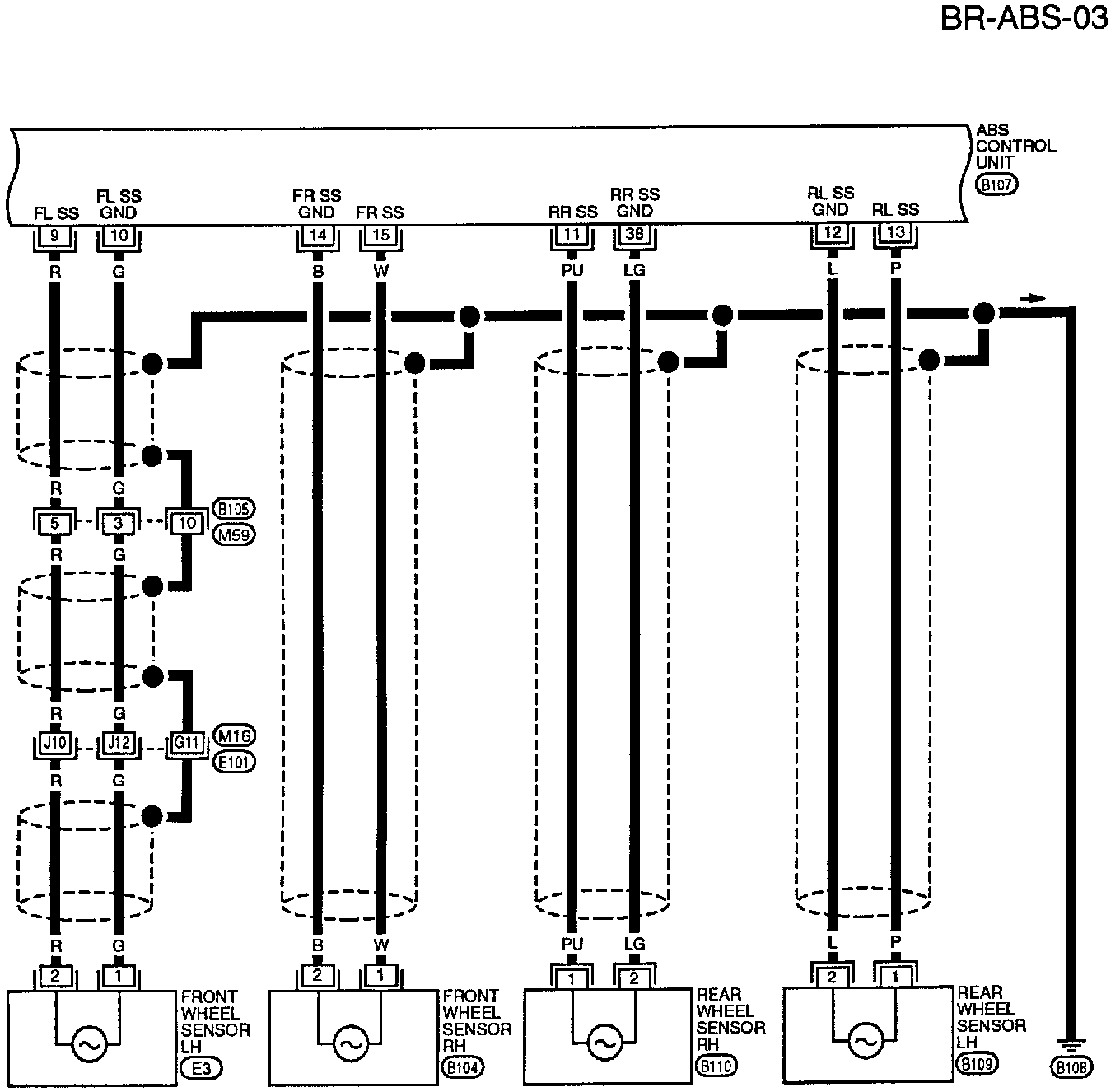

BR-ABS-03 Anti-Lock Brake System-Wiring Diagram (Part 3 Of 4):

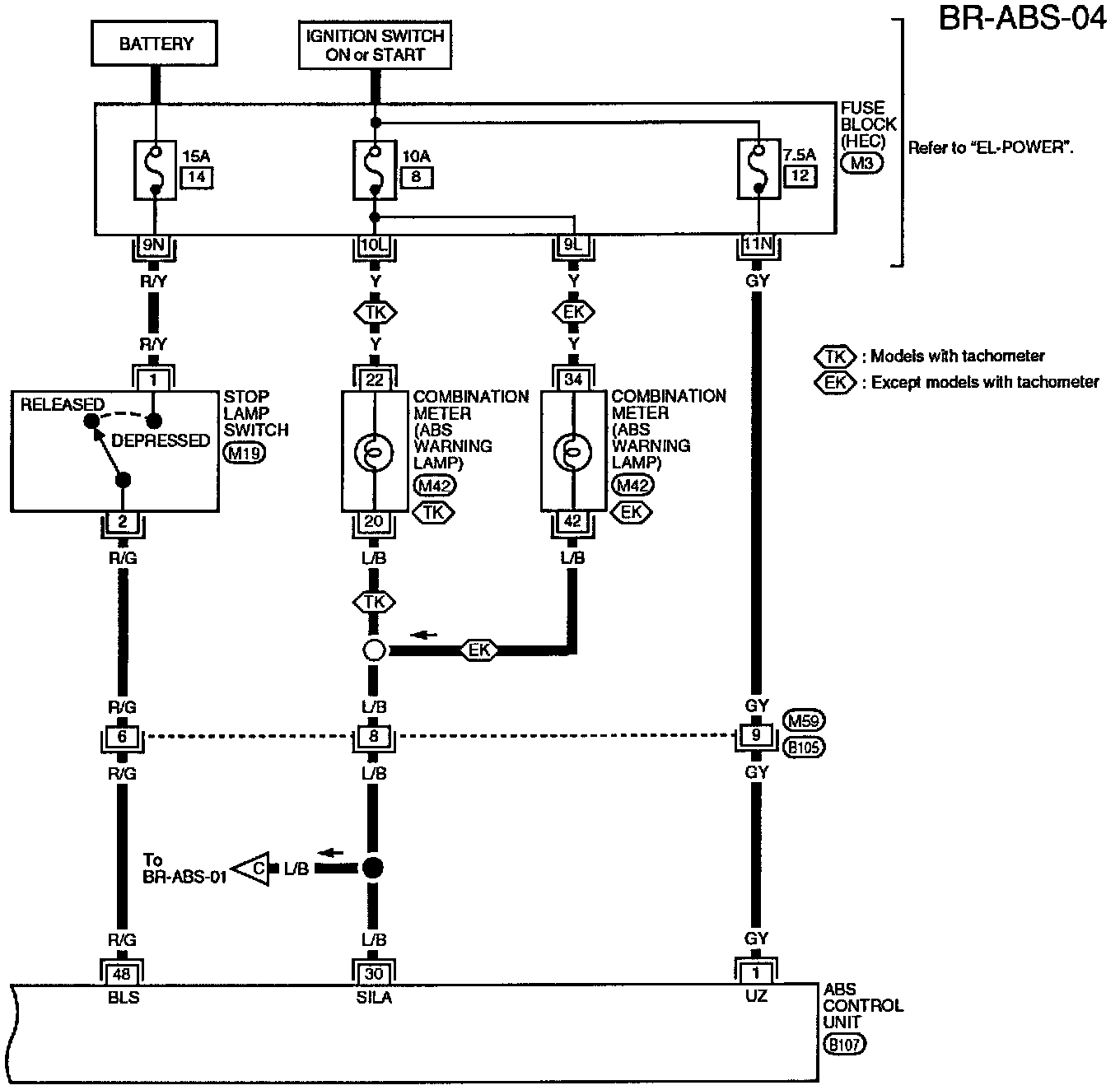

BR-ABS-04 Anti-Lock Brake System-Wiring Diagram (Part 4 Of 4):
