Brakes - Hard or Low Pedal Feel

Classification:
BR96-004

Reference:
NTB96-041

Date:
May 22, 1996

1995-96 SENTRA/200OSX BRAKE PEDAL FEEL IMPROVEMENT

APPLIED VEHICLE:
1995-96 Sentra/200SX (B14) equipped with A/T, GA16DE engine, non-ABS

APPLIED VIN:
Smyrna Sentras built before 1N4AB41D1TC720407
Nismex Sentras built before 3N1AB41D9TL009605
Smyrna 200SX built before 1N4AB42D7TC506164

APPLIED DATE:
Smyrna Sentras built before October 16,1995
Nismex Sentras built before December 13, 1995

SERVICE INFORMATION

Some 1995-96 non-ABS Sentras and/or 200SXs equipped with A/T, GA16DE engines, may experience a hard or low brake pedal feel. Perform the following procedure to resolve this incident.





SERVICE PROCEDURE

Verify the incident then replace all of the components listed in the Parts Information table.

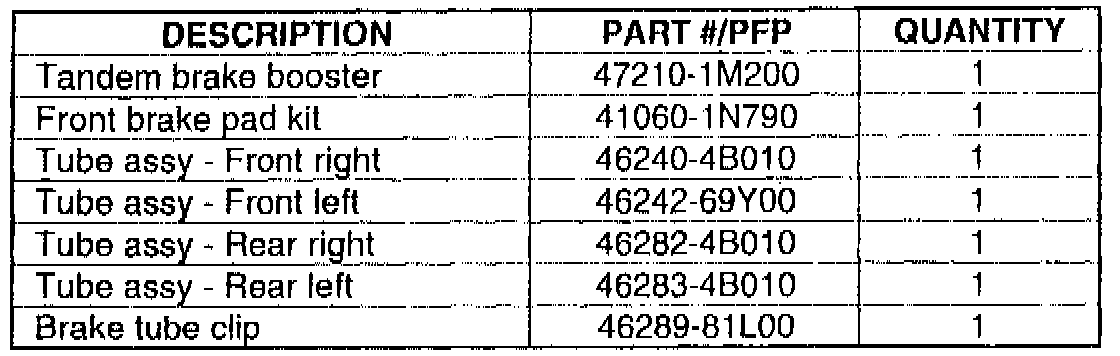

PARTS INFORMATION

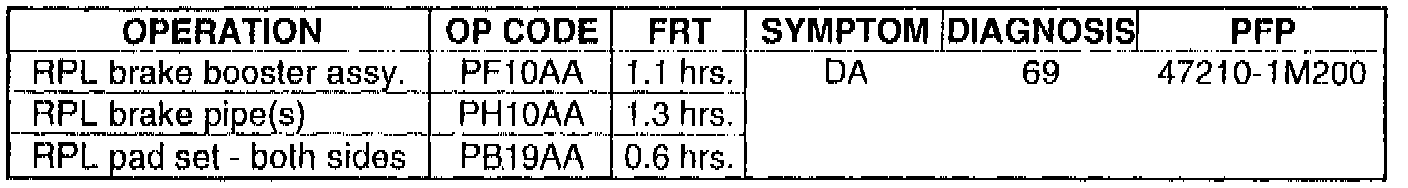

CLAIMS INFORMATION

Submit a Primary Part claim using the coding as shown.
