How to Display and Read Diagnostic Trouble Codes

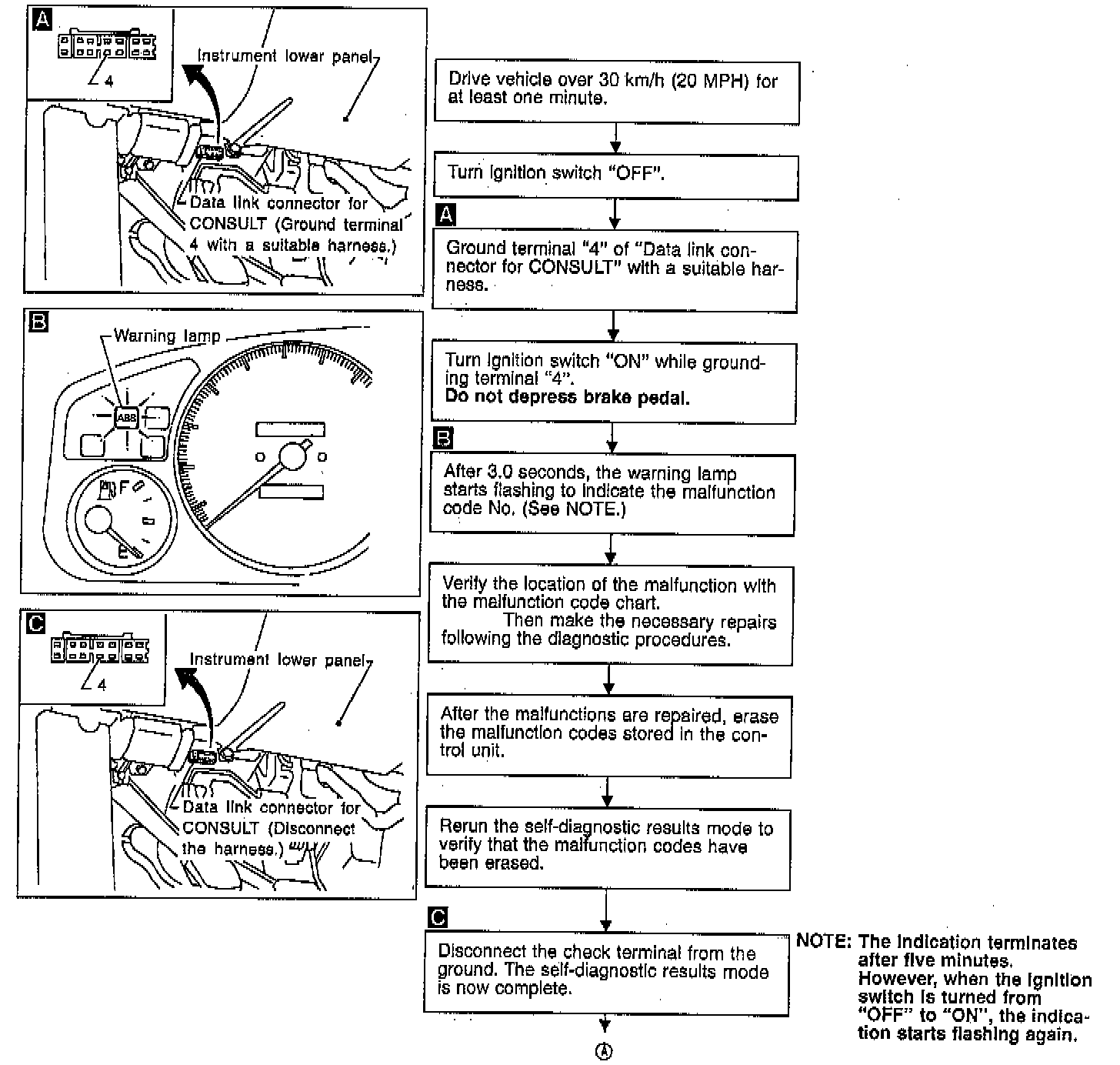

Self-Diagnosis Procedure (Part 1 Of 2):

PART 1 OF 2

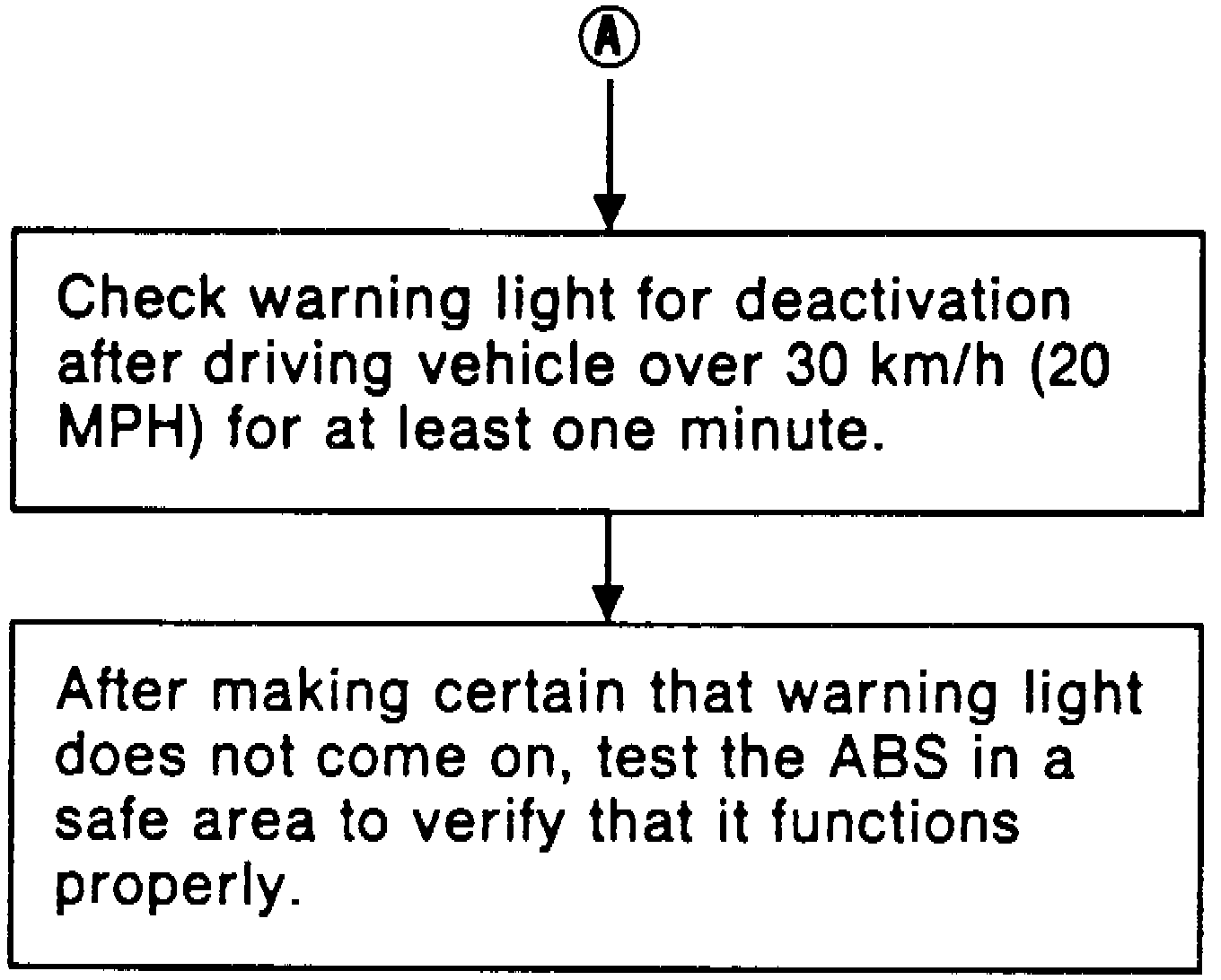

Fig. 23 Self-diagnostic Procedure (Part 2 Of 2):

PART 2 OF 2

When a problem occurs in the ABS system, a warning light will flash on the instrument panel. To activate ABS Self-Diagnosis, ground the self diagnosis (check) terminal located on the data link connector.
