Theft Warning Lamp Relay

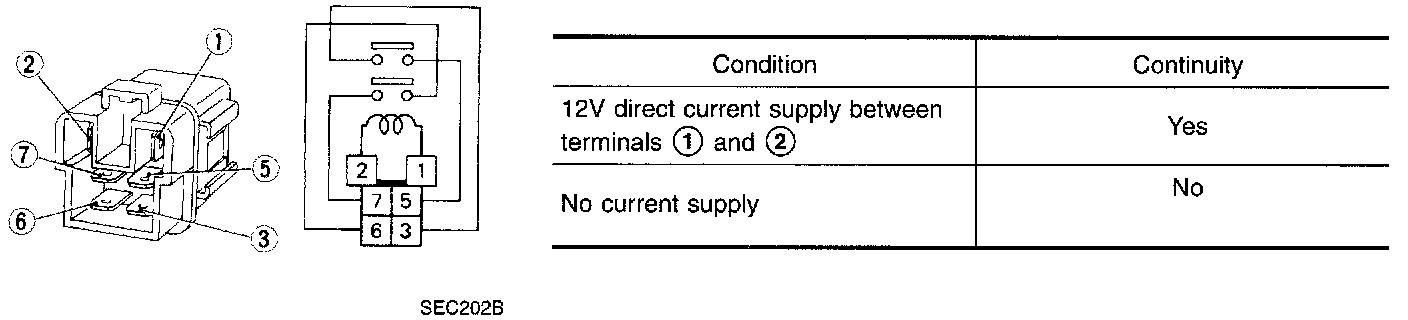

Theft Warning System-Theft Warning Lamp Relay:




Check continuity between terminals (3) and (5), (6) and (7).
