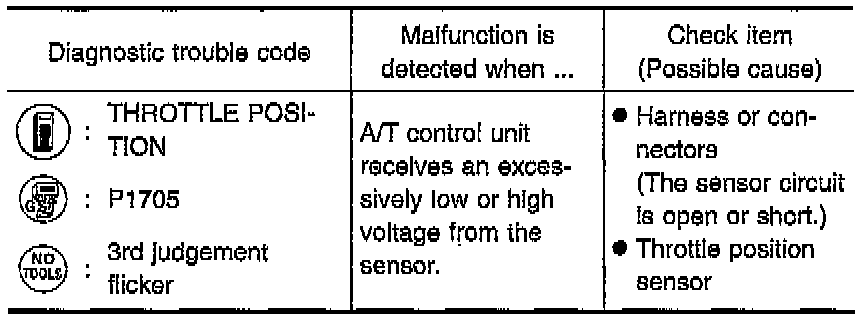

P1705

With Consult:




DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE
After the repair, perform the following procedure to confirm the malfunction is eliminated.
1. Start engine.

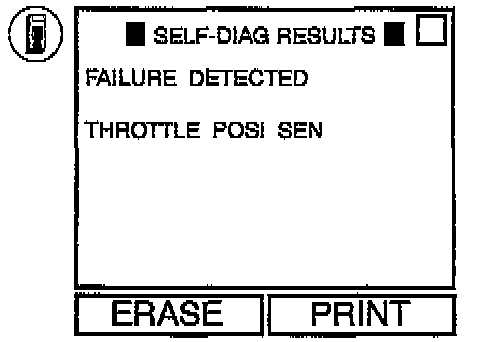

2. Select "SELF-DIAG RESULTS" mode with CONSULT.
3. Drive vehicle under the following conditions:
Shift lever in D, vehicle speed higher than 16 km/h (6 MPH), throttle opening greater than 1/2 of the full throttle position and driving for more than 3 seconds.

With GST:




DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE
After the repair, perform the following procedure to confirm the malfunction is eliminated.
1. Start engine.
2. Drive vehicle under the following conditions:
Shift lever in D, vehicle speed higher than 10 km/h (6 MPH), throttle opening greater than 1/2 of the full throttle position and driving for more than 3 seconds.

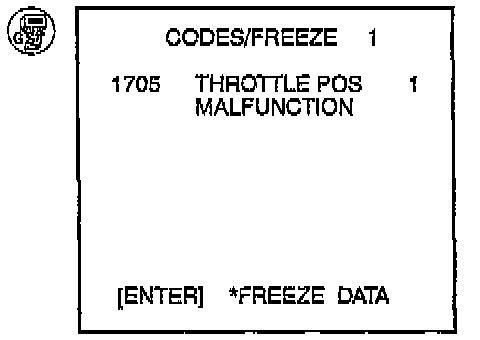

3. Select "MODE 3" with Generic Scan Tool (GST).

Without Consult:




DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE
After the repair, perform the following procedure to confirm the malfunction is eliminated.
1. Start engine.
2. Drive vehicle under the following conditions:
Shift lever in D, vehicle speed higher than 10 km/h (6 MPH), throttle opening greater than 1/2 of the full throttle position and driving for more than 3 seconds.




3. Select "MODE 3" with Generic Scan Tool (GST).

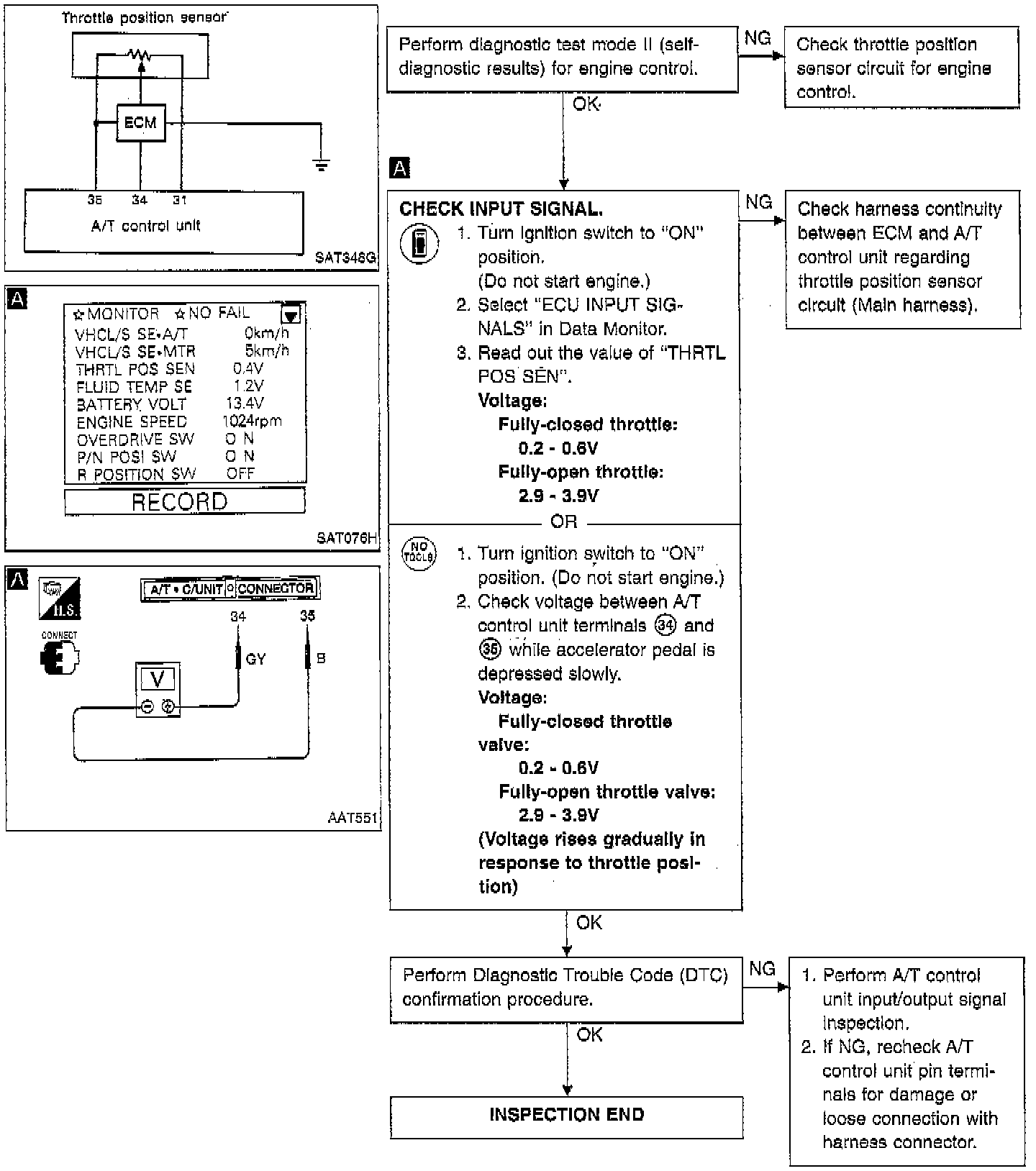

Diagnostic Procedure
