Component Inspection

COMPONENT INSPECTION

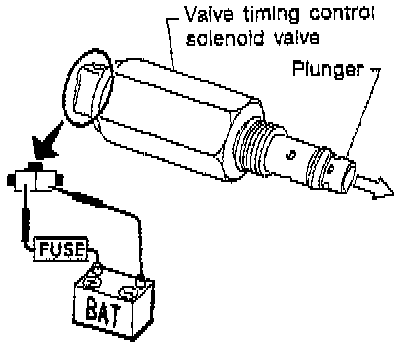

1. Supply Valve Timing Control (VTC) solenoid valve terminals with battery voltage.
2. Make sure that inside plunger protrudes.
If NG, replace VTC solenoid valve.
