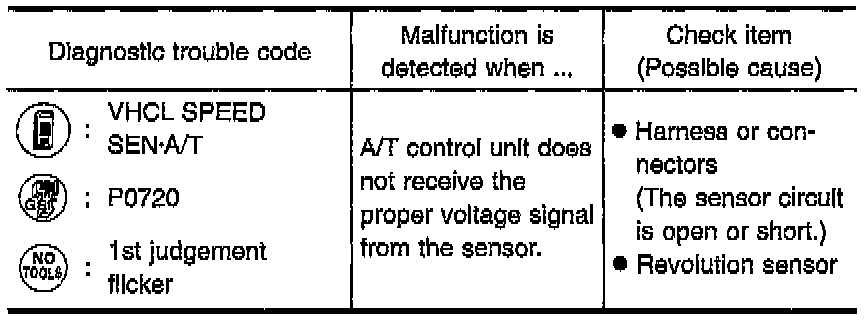

P0720

With Consult:

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE
After the repair, perform the following procedure to confirm the malfunction is eliminated.
1. Start engine.

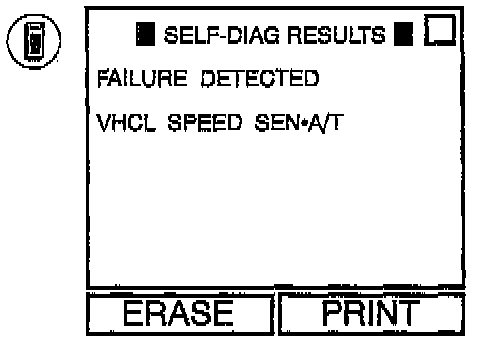

2. Select "SELF-DIAG RESULTS" mode with CONSULT.
3. Drive vehicle under the following conditions:
Shift lever in D, vehicle speed higher than 30 km/h (19 MPH), throttle opening greater than 1/8 of the full throttle position and driving for more than 5 seconds.

With GST:

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE
After the repair, perform the following procedure to confirm the malfunction is eliminated.
1. Start engine.
2. Drive vehicle under the following conditions:
Shift lever in D, vehicle speed higher than 30 km/h (19 MPH), throttle opening greater than 1/8 of the full throttle position and driving for more than 5 seconds.

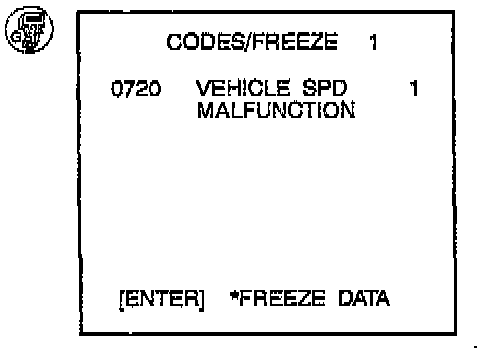

3. Select "MODE 3" with Generic Scan Tool (GST).

Without Consult:

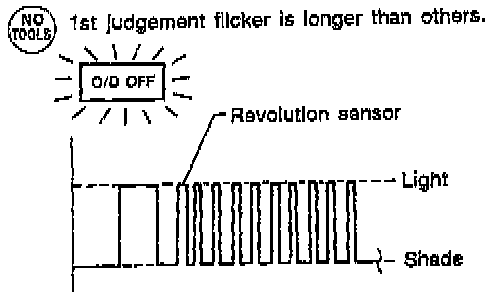

3. Perform self-diagnosis.

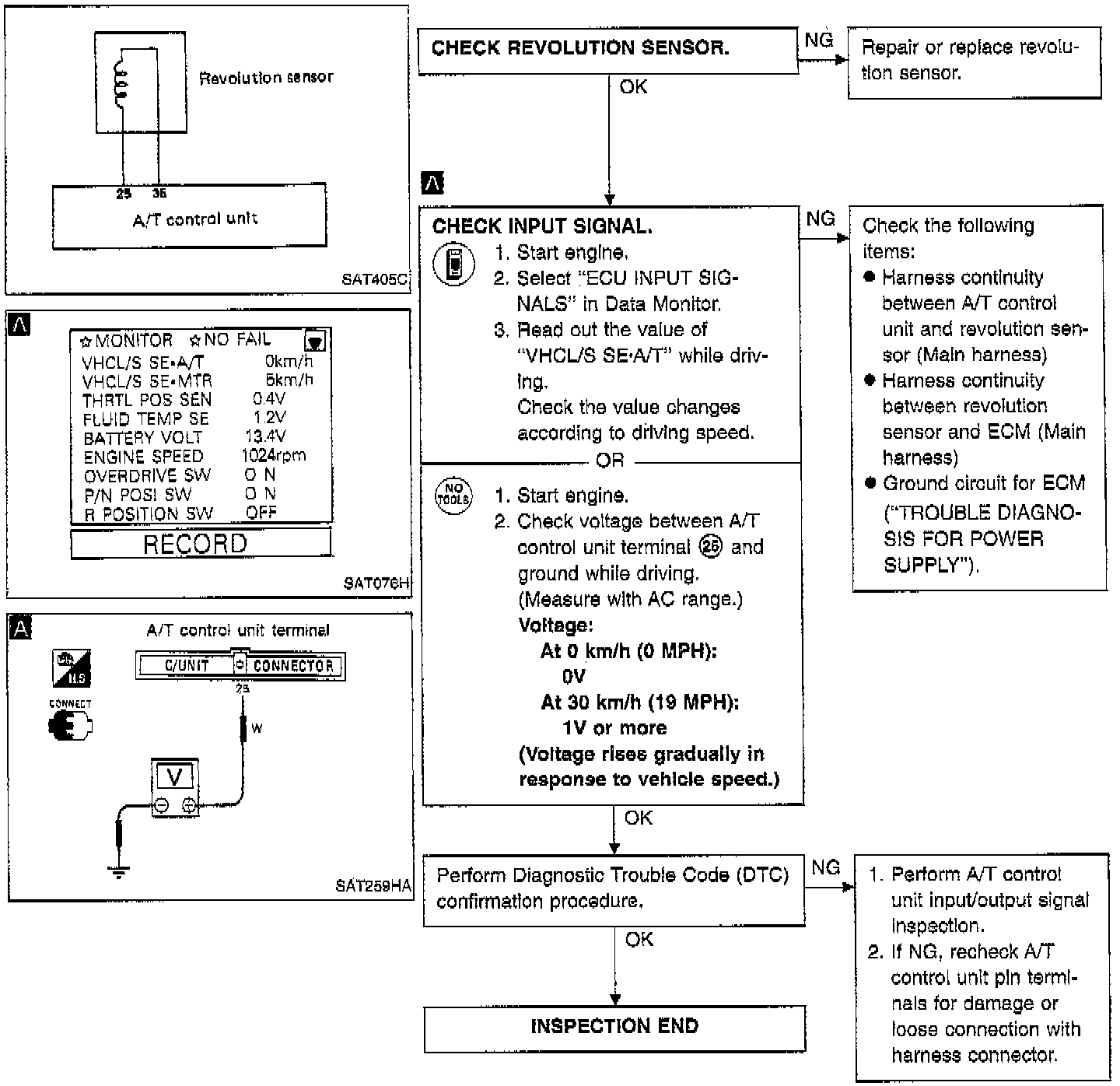

Diagnostic Procedure:

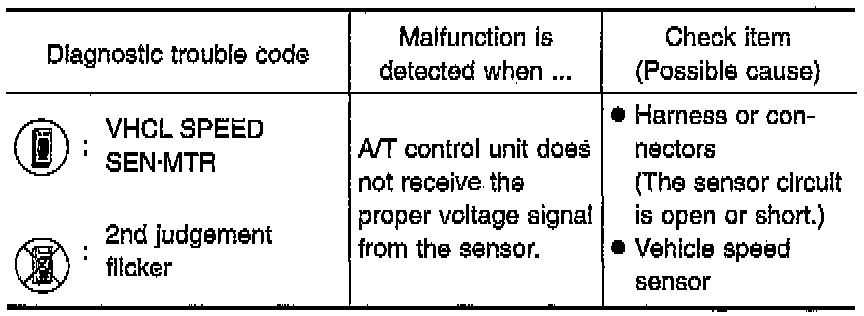

MTR Circuit Check:

With Consult:

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE
After the repair, perform the following procedure to confirm the malfunction is eliminated.
1. Start engine.

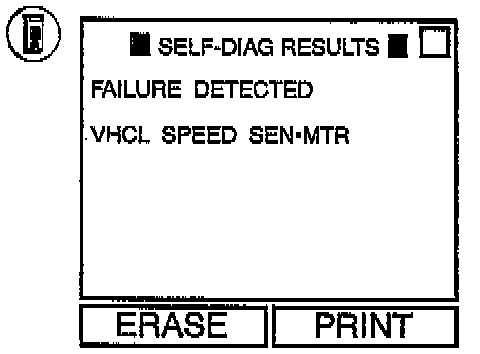

2. Select "SELF-DIAG RESULTS" mode with CONSULT.
3. Drive vehicle under the following conditions:
Shift lever in D and vehicle speed higher than 20 km/h (12 MPH).

Without Consult:

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE
After the repair, perform the following procedure to confirm the malfunction is eliminated.
1. Start engine.

2. Select "SELF-DIAG RESULTS" mode with CONSULT.
3. Drive vehicle under the following conditions:
Shift lever in D and vehicle speed higher than 20 km/h (12 MPH).

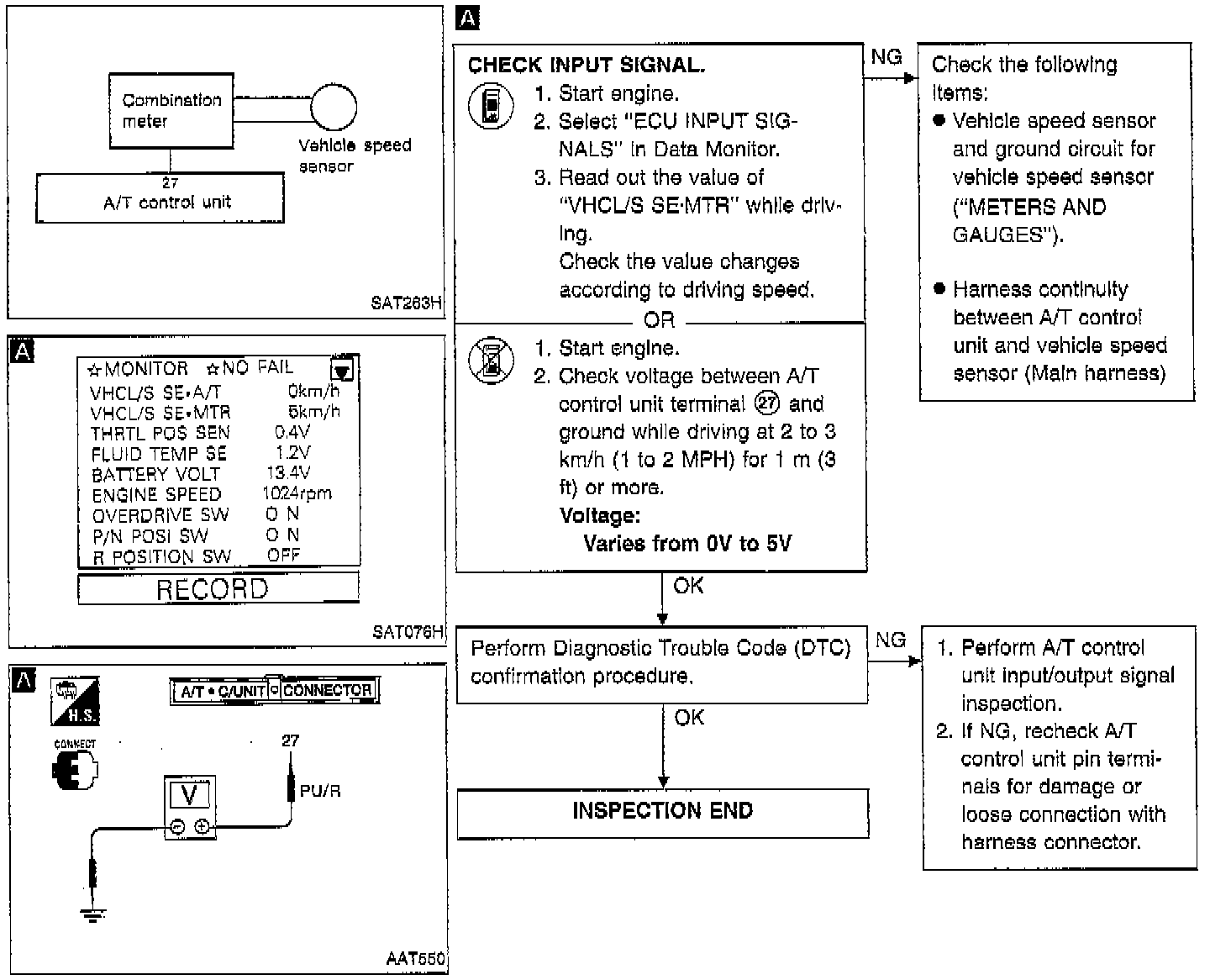

Diagnostic Procedure:
