COMPONENT INSPECTION

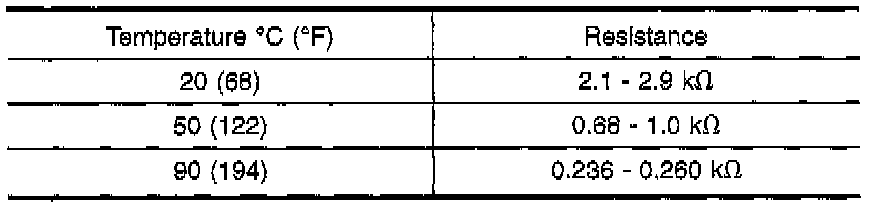

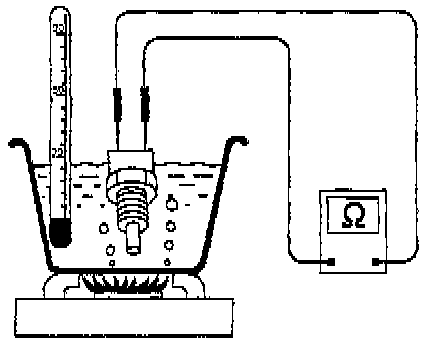

Check resistance as shown in the figure.
If NG, replace engine coolant temperature sensor.
