With CONSULT

DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE
For The Malfunction a) and b)
1. Wait until engine coolant temperature is less than 90°C (194°F).
- Turn ignition switch "ON".

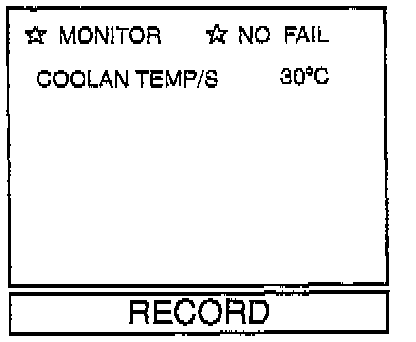

- Select "DATA MONITOR" mode with CONSULT




- Check the engine coolant temperature.
- If the engine coolant temperature is not less than 90°C (194°F), turn ignition switch "OFF" and cool down engine.
2. Turn ignition switch "ON".

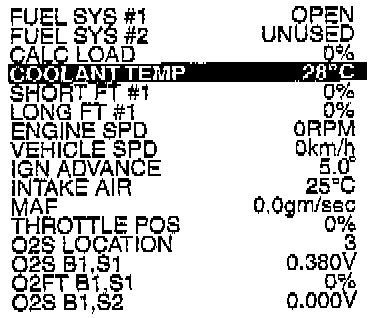

3. Select "DATA MONITOR" mode with CONSULT.
4. Wait for at least 5 seconds.
