Generic Scan Tool

DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE

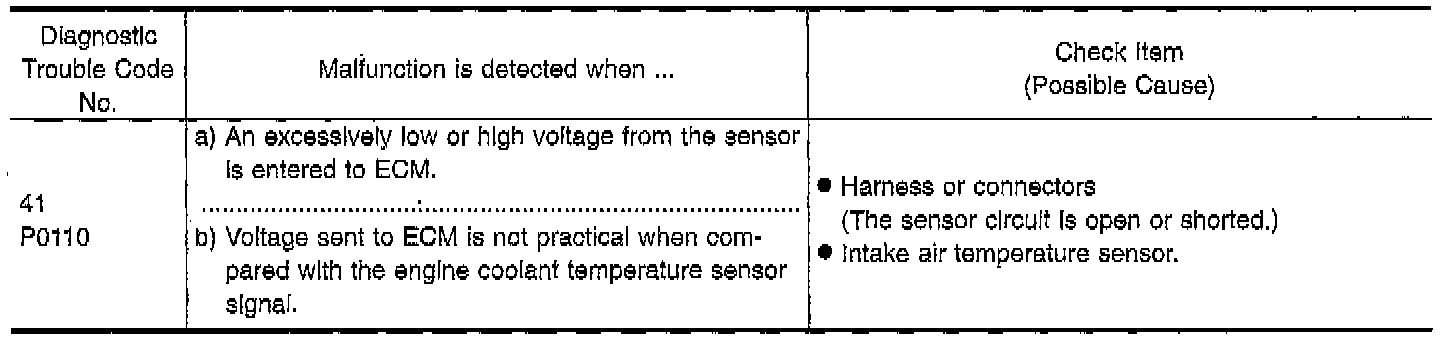

For The Malfunction a) and b)
1. Wait until engine coolant temperature is less than 90°C (194°F).
- Turn ignition switch "ON".
- Select MODE 1 with Generic Scan Tool (GST)




- Check the engine coolant temperature.
- If the engine coolant temperature is not less than 90°C (194°F), turn ignition switch "OFF" and cool down engine.
2. Turn ignition switch "ON" and wait for at least 5 seconds.
3. Select MODE 3 with GST.
