Clutch Pedal Assembly: Adjustments

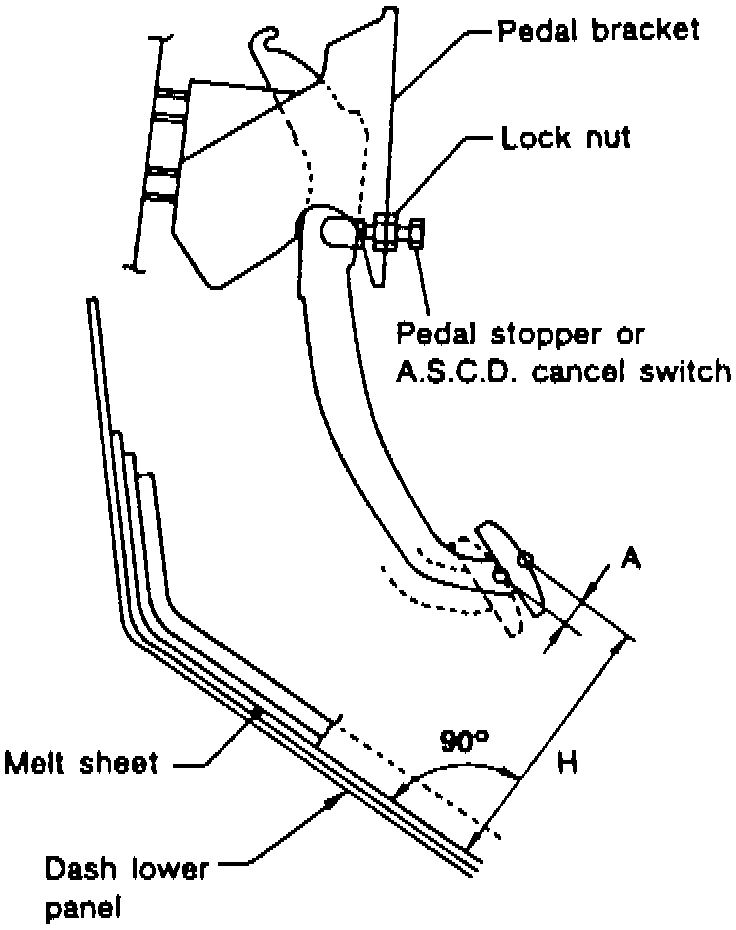

Fig. 1 Clutch Pedal Free Travel & Height Adjustment:

Fig. 2 Withdrawal Lever Adjustment:

Fig. 3 Clutch Interlock Switch Adjustment:

1. Adjust clutch pedal height, dimension "H" in Fig. 1, to 5.91-6.30 inches using pedal stop or clutch switch.
2. Adjust withdrawal lever play, dimension "B", Fig. 2, with the adjuster or locknuts, to 0.098-0.138 inch.
3. Adjust dimension "C", Fig. 3, to 0.004-0.039 inch with clutch pedal fully depressed.
4. Measure clutch pedal freeplay as shown in Fig. 1, dimension "A". Clutch pedal freeplay should be 0.425-0.594 inch. Clutch pedal freeplay is the sum of play between the clevis pin and clevis pin hole.
5. After above adjustments have been completed, cycle clutch pedal several times to ensure clutch linkage operates smoothly without binding.
