Testing Stop Lamp Switch








STOP LAMP SWITCH

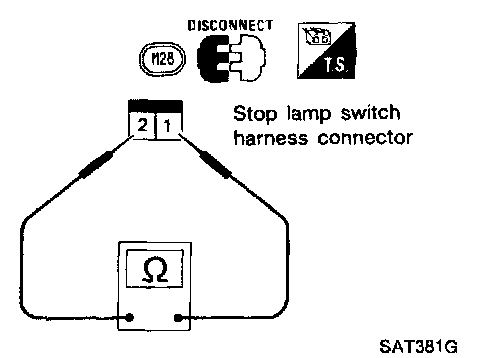

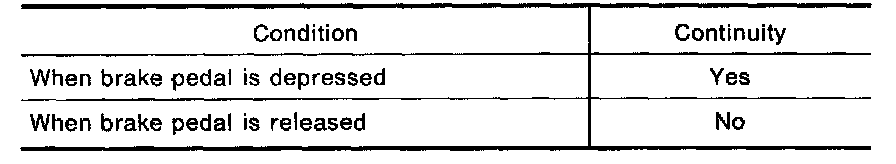

- Check continuity between terminals (1) and (2) of stop lamp switch harness connector.

Check stop lamp switch after adjusting brake pedal.
